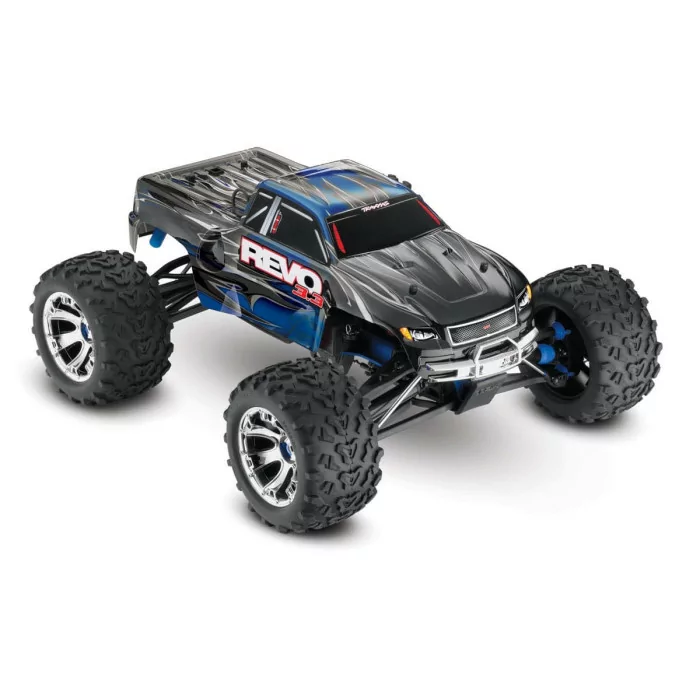

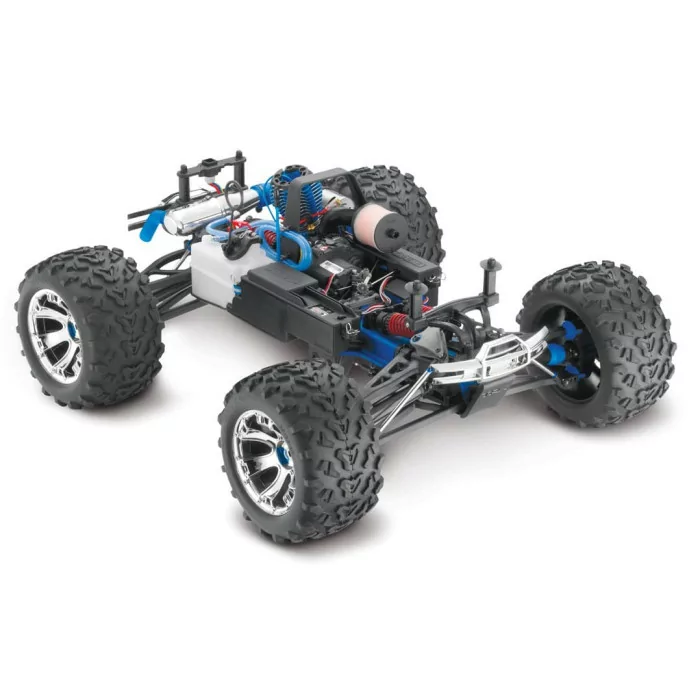

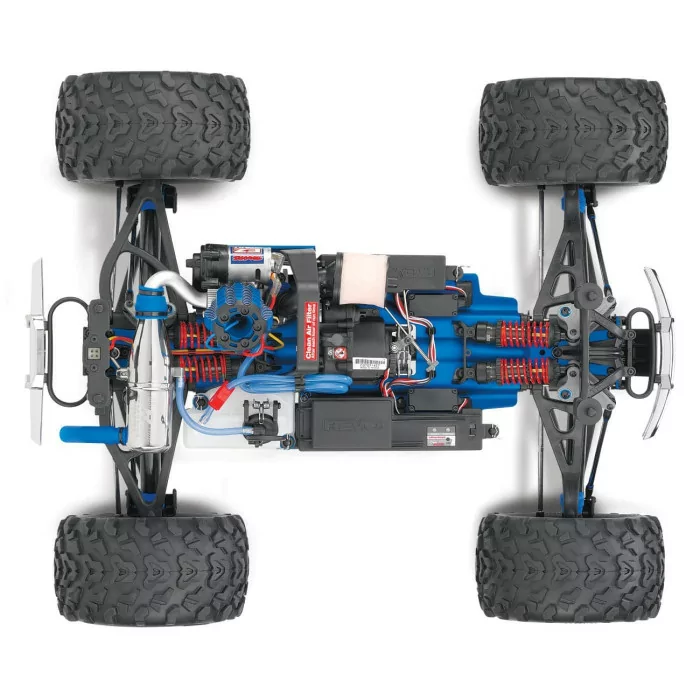

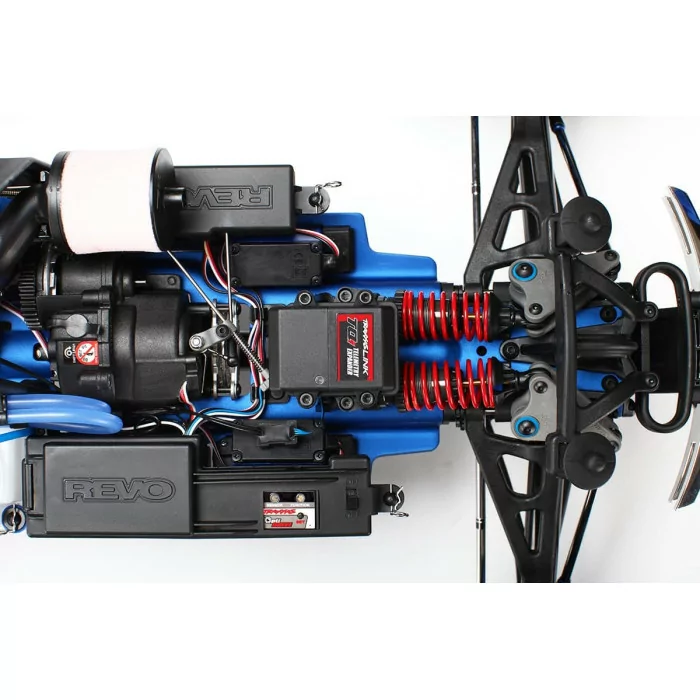

Traxxas Nitro Revo 3.3 4WD RTR Monster Truck Blue

This is the glow powered, radio controlled, 1/10 scale 2.4GHz Traxxas Revo 3.3 Off-Road Ready-To-Run Monster Truck.

FEATURES

• Chassis: 6061-T6 aluminum 1/8" (3mm) thick 3D semi-monocoque, 1.2" (30mm) longer than Revo 2.5 chassis with chassis to engine brace to handle higher power of TRX 3.3 engine, integrated roll hoop and arry handle
• Drive: Four wheel drive
• Drive Type: Shaft driven, shafts are .71" (18mm) diameter with rubber shielded half shafts and rubber shielded stub axle bearings
• Engine: Traxxas .20 cu in (3.3cc) racing engine with slide valve carburetor, EZ Start, and two high flow dual stage air filters
• EZ Start Battery: 1500mAh 6-cell with charger
• Exhaust: Polished resonator dual chamber aluminum tuned pipe
• Fuel Tank: Low profile 5.1oz (150cc) with flip top cap
• Radio: Traxxas TQi DSSS 2.4GHz high output with Traxxas Link Wireless Module that allows wireless connection to the Traxxas Link Application with the included Traxxas Link Module
• for instant Bluetooth connectivity to an intuitive high definition graphical user interface featuring Real-Time Telemetry, Customizable Dashboards, Steering/Throttle Expo,
• Steering/Braking Dual Rate, Servo Reversing, Endpoint Adjustment, Profile Customization and Sharing 5 channel receiver with 3 telemetry ports, factory installed telemetry sensors, and failsafe is included and enables model to be tuned from an iPhone 4S, 5, 5C 5S or iPod
• Touch 5th generation or later, iPad 3rd generation or later, or iPad Mini
• Clutch: Two shoe composite construction
• Transmission: Traxxas OptiDrive electronic transmission control for safe, smooth gear engagement-forward and reverse
• Ball Bearings: Full set included, rubber sealed bearings used in all exposed locations
• Shocks: 4 GTR inboard mounted, maintenance free, silicone oil-filled, hard anodized coated bodies with TiN shafts
• Main Gear: 38 tooth, plastic construction
• Gearbox: Sealed front and rear
• Differentials: Maintenance free, sealed with silicone X-rings and gaskets, limited slip action can be tuned using different viscosity oil
• Brakes: Alloy calipers, giant 1.6" (40mm) diameter drilled and vented
• steel rotor and semi-metallic friction material
• Tires: 6.3" (160mm) outer diameter Maxx with foam inserts, 3.3" (84mm) wide, 3.8" (96mm) inner diameter
• Wheels: 6-spoke chrome, Geode 3.8" (96.5mm) diameter, 2.7" (70mm) wide, 17mm hub size
• Tires and wheels are compatible with the Maxx series
• Body: Prographix wide-track, trimmed, decaled and painted
• Bumpers: Front and rear, plastic construction

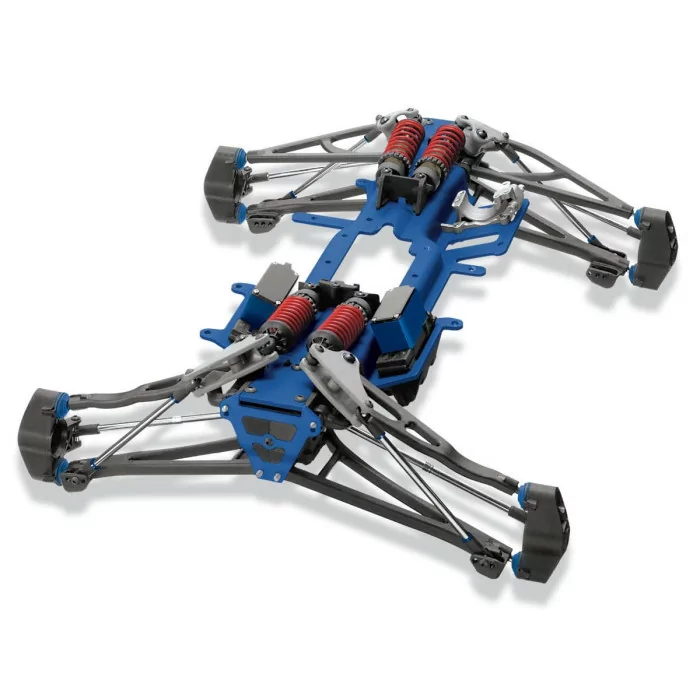

• Suspension: Variable progressive two rocker design, suspension travel not limited to length of shocks
• Ride height, suspension travel, and progressive rate can be adjusted totally independent of each other
• Rubber sealed pivot balls can be adjusted with included tool without removing seals, steel pivot ball retaining rings
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Steering: Ball bearing enhanced with high-torque servo driving a heavy-duty servo saver
• Warranty: 30 day limited warranty on electronic components through manufacturer.
• Chassis and engine are warranted free from defects at the date of purchase before use. No warranties are expressed or implied that cover damage caused by normal use or wear, or cover or imply how long any chassis or engine part will last before requiring
• replacement due to wear.

INCLUDES

• Traxxas Revo 3.3 2.4Ghz truck w/oil-filled shocks, 3.3 engine, EZ- Start, painted body, tires, wheels, foam inserts, TQi 2.4GHz radio, wireless module, two high torque ball bearing servos, docking base, RX & EZ-Start batteries, DC charger, fuel bottle, extra glow plug
• & air filter tool set, illustrated manual, decals, air filter, engine setup DVD, long travel rocker and spring set

SPECIFICATIONS

• Vehicle-
• Length: 20.65" (525mm)
• Width: 16.125" (414mm)
• Height: 10.375" (264mm) overall
• Weight: 9.4lbs (4264g) no fuel
• Wheelbase: 13.7" (348mm) wheels on-center front-to-rear
• Front and Rear Track: 16.125" (409mm)
• Center Ground Clearance: 4" (101mm)
• Gear Ratio 1st Gear: 23.85:1
• Gear Ratio 2nd Gear: 15.22:1
• Tires- Front and Rear: 5.75" x 3.5" (146 x 89mm)
• Body-
• Length: 19.4" (494mm)
• Width: 7.1" (180mm) in front of rear wheels (widest point)
• 6.2" (159mm) behind from wheels (thinnest point)
• Height: 5.1" (129mm)

COMMENTS
The Revo 3.3 2.4GHz is available in the following colors and radio channels;

• Blue, TRAC83BB Red, TRAC83RR
• Green, TRAC83GG Silver, TRAC83SS

NOTE: Black is the primary color on all of the bodies. The splash of color is around the cab only.All original bearings used in the Revo 3.3 2.4GHz are rubber shielded. The following list includes the rubber shielded bearings and the non-shielded DuraTrax brand as an economical alternative. For Replacement Ball Bearings use: DuraTrax Traxxas Qty.

• Size Location Qty Bearing Set Qty Bearing Set
• 2 12x18mm Front Wheels (1) DTXC1597 (1) TRAC5120
• 2 6x12mm Front Wheels (1) DTXC1569 (1) TRAC5117
• 2 12x18mm Rear Wheels (1) DTXC1597 (1) TRAC5120
• 2 6x12mm Rear Wheels (1) DTXC1569 (1) TRAC5117
• 4 5x11mm Front Bulkhead (2) DTXC1547 (2) TRAC5115
• 4 5x11mm Rear Bulkhead (2) DTXC1547 (2) TRAC5115
• 2 5x11mm Rocker Arm (1) DTXC1547 (1) TRAC5115
• 1 10x15mm Rear Diff (1) DTXC1595 (1) TRAC5119
• 2 6x12mm Rear Diff (1) DTXC1569 (1) TRAC5117
• 1 8x16mm Rear Diff (1) DTXC1585 (1) TRAC5118
• 2 5x11mm Front Gearbox (1) DTXC1547 (1) TRAC5115
• 2 5x11mm Rear Gearbox (1) DTXC1547 (1) TRAC5115
• 2 5x11mm Primary Shaft (1) DTXC1547 (1) TRAC5115
• 1 10x15mm Primary Shaft (1) DTXC1595 (1) TRAC5119
• 1 6x12mm Primary Shaft (1) DTXC1569 (1) TRAC5117
• 1 5x11mm Spur Gear/Pressure Plate (1) DTXC1547 (1) TRAC5115
• 2 6x12mm Output Shaft (1) DTXC1569 (1) TRAC5117
• 2 5x11mm Clutch Bell (1) DTXC1547 (1) TRAC4611
