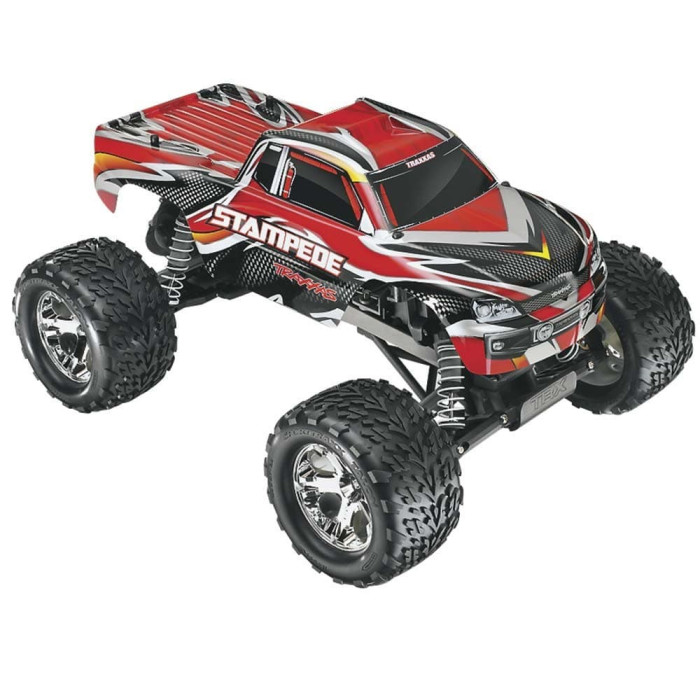

Traxxas 1/10 Stampede XL-5 RTR

This is the 1/10 scale electric powered, 2.4GHz radio controlled, Ready To Run Traxxas Stampede off-road Monster Truck with the XL-5 Electronic Speed Control. For ages 8 and above.

FEATURES

• Chassis: Fiber composite tub .08" (2mm) thick, Gray in color
• Drive: Rear wheel
• Motor 550 size Traxxas Titan 12 turn, fan cooled
• Radio: Traxxas TQ two channel 2.4GHz with steering and throttle trim and reverse, throttle neutral adjust and high torque waterproof steering servo, water tight receiver box with #2216
• 4-channel receiver
• Battery: 7-cell hump 3000mAh NiMH with Traxxas high-current connector and iD Auto Battery Identification that allows Traxxas iD equipped chargers to automatically set and optimize charge settings
• Battery Charger: 4A DC powered peak charger
• Shocks: Oil-filled plastic bodied, tunable and rebuildable
• Gearbox: Closed
• Body: Painted with decals pre-applied
• Differential: Maintenance free, planetary gear type with hardened steel internal gears
• Transmission: Single speed, Traxxas Magnum 272 with ball bearings, hardened steel gears and Revo spec Torque-Control slipper clutch with semi-metallic pads and heat dissipating finned aluminum alloy pressure plates for smooth linear engagement and consistent traction control
• Ball Bearings: Installed in transmission, bushings throughout remainder of kit
• Tires: Talon 2.8" (71mm) wide, 5" (127mm) diameter with foam inserts
• Wheels: All-Star 5-spoke chrome 2.8" (71mm) wide, 2.75" (70mm) diameter
• Speed Control: Traxxas XL5 Electronic with forward, reverse and brake waterproof for all weather driving, exclusive half-power profile limits throttle to 50% for inexperienced drivers, EZ-Set push- button setup, 3 drive profiles, compatible with 2S LiPo packs Bumper: Front plastic kickup type, Black in color
• Camber Tie Rods: Non-adjustable
• Steering Tie Rods: Adjustable
• Steering: Bell-crank type with servo saver

INCLUDES

• Traxxas Stampede chassis with oil-filled shocks, 550 motor, XL-5 Electronic Speed Control, painted body, tires, foam inserts, wheels, 19 tooth and 23 tooth pinion gears, 86 tooth spur gear, TQ 2.4GHz radio with waterproof electronics, 7 cell hump NiMH 3000 mAh battery, 4A DC charger and illustrated instruction manual

SPECIFICATIONS

• VEHICLE-
• Length: 16.25" (413mm)
• Width: 13" (330mm)
• Height: 9.5" (241mm)
• Weight: 2.98lbs (1355g) approx.
• Wheelbase: 10.75" (273mm)
• Front and Rear Tread: 10.5" (266mm) side-to-side at wheel centers
• Front and Rear Track: 12.75" (324mm) side-to-side at wheel edges
• Ground Clearance: 2.4" (60mm)
• Gear Ratio: 4.5:1 with stock 19T pinion gear
• 3.7:1 with optional 23T pinion gear
• Tires-Front and Rear: 2.8" (71mm) wide, 5" (127mm) diameter
• BODY-
• Length: 16" (406mm)
• Width: 6.3" (160mm) at rear wheels (widest point)
• 5.5" (141mm) behind from wheels (thinnest point)
• Height: 4.3" (109mm)

COMMENTS

• For Replacement Ball Bearings and to Upgrade From Bushings Use:
• Qty. Size Location Qty. Bearing Set
• 4 5x11mm Front Wheels 2 DTXC1547
• 4 5x11mm Rear Wheels 2 DTXC1547
• 4 5x11mm Transmission 2 DTXC1547
• 1 5x11mm Spur Gear 2 DTXC1547
• The Stampede XL-5 is available in the following body colors;
• Blue, TRAD40BB Red, TRAD40RR
• Black, TRAD40LL Silver, TRAD40SS
• Pink, TRAD40KK
• Courtney Force Edition, TRAD40BR
