Traxxas Rustler XL-5 RTR 2WD (Green)

The Traxxas Rustler XL-5 is a ready-to-run 1/10 stadium truck that ships complete with battery and charger, waterproof electronics, and a pre-painted ProGraphix body. It’s tuned for fast, predictable performance—good for beginners at skill level 1 and experienced hobbyists who want a turn-key truck for backyard bashing or short-course fun.

Key Features

• ProGraphix painted body with a factory finish for sharp looks out of the box
• Pre-painted body with applied decals so you can run right away without painting
• Aggressive, aerodynamic body design with a rear wing for stable high-speed handling
• High-performance waterproof XL-5 electronic speed control that protects the electronics when you drive through puddles or wet conditions
• XL-5 features an innovative waterproof design for reliable operation in sloppy conditions
• Speed control offers Sport Mode (forward / brake / reverse) for everyday driving
• Speed control offers Race Mode (forward / brake) for full forward punch without reverse
• Training Mode provides 50% forward / brake / 50% reverse for learning throttle control (patented)
• Traxxas EZ-Set one-button setup makes programming the speed control quick and simple
• XL-5 is compatible with both LiPo and NiMH batteries and includes two-stage low-voltage detection
• Titan 12T 550 motor — a powerful modified 550 can with internal cooling fan for sustained output
• Motor uses an oversized armature to deliver big torque and stronger power handling
• Motor is designed for virtually maintenance-free operation so you spend more time driving
• TQ 2.4 GHz 2-channel radio system with an ergonomic transmitter and internal antenna for dependable control
• Includes the Traxxas 6519 3-channel micro receiver with built-in fail-safe for added safety
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry in wet runs
• Includes battery and charger, so the truck arrives ready to run
• 4-amp 12 V DC peak-detecting fast charger for quicker, reliable charging cycles
• 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD for easy connection and charge recognition
• Tough fiber-composite monocoque chassis for a wide, low-profile layout that increases stability
• All electronics are securely fastened to the chassis for consistent performance
• Easy access battery compartment accepts 6-cell flat packs, 7-cell hump packs, and short form-factor 2-cell LiPo batteries

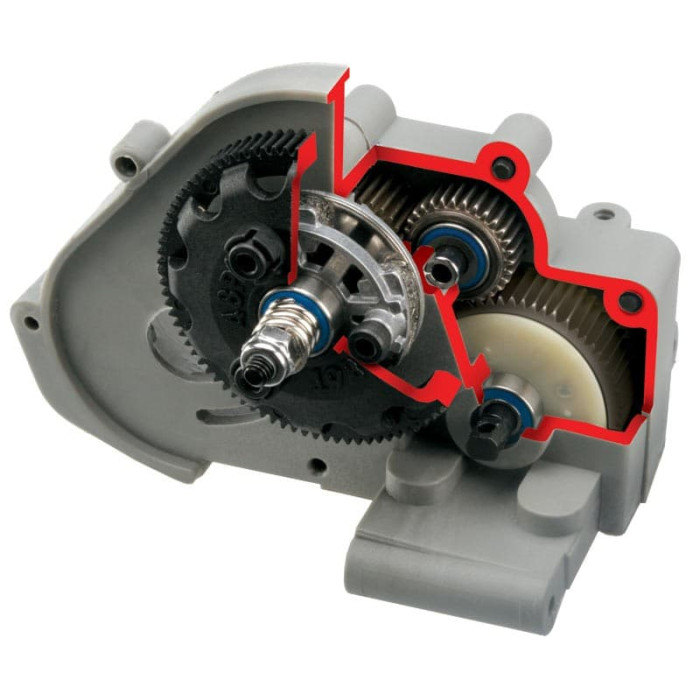

• Transmission and driveline feature a brushless-ready Magnum 272 metal-gear transmission

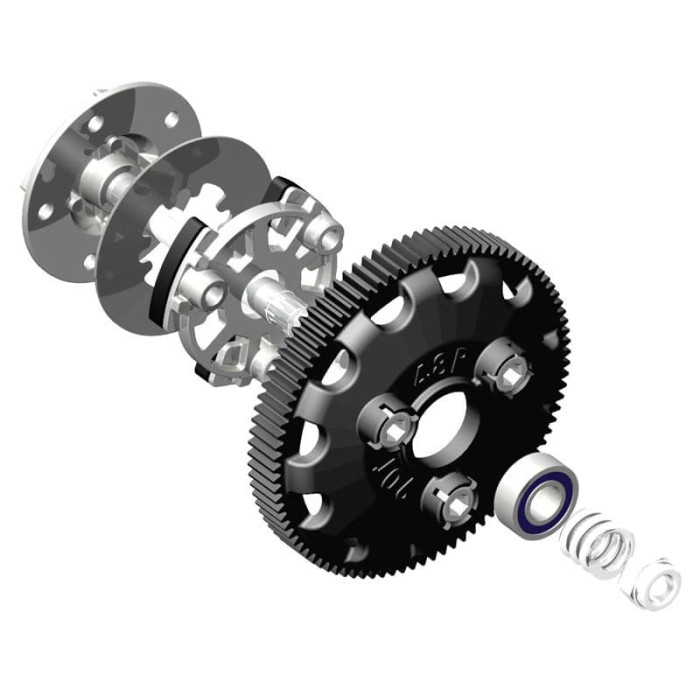

• Torque-Control slipper clutch system protects the drivetrain under load
• Planetary gear differential with a steel ring gear provides smooth power distribution
• Sealed gearbox and beefed-up motor guard protect internal gears from impacts
• External gear cover gives easy access to the slipper clutch for quick adjustments
• Heavy-duty telescoping U-joint driveshafts and yokes for reliable drivetrain hookup
• Steering uses a high-torque waterproof Traxxas 2056 steering servo for positive control
• High-performance bellcrank system minimizes bump steer for stable handling over rough surfaces
• Suspension uses durable solid camber links that eliminate the need for constant adjustment
• Captured rod ends are designed so they won't pop off during hard use
• Springs and shocks include fully adjustable oil-filled Ultra Shocks with X-ring technology for long service life
• White powder-coated springs add consistent spring rate and a clean appearance
• Wheels and tires come pre-glued with Alias step-pin rear tires and ribbed front tires with performance foam inserts
• 2.8" mirror-chrome All-Star wheels complete the package for a road-ready footprint
• Backed by comprehensive Traxxas support and readily available replacement parts

Technical Specifications

• Model Name: Rustler XL-5
• Model Type: Stadium Trucks
• Model Speed: 35+ mph with 7-cell battery and included optional 28-tooth pinion gear
• Model Skill Level: 1
• Scale: 1/10
• Weight: 3.73 pounds (1.69 kg)
• Length: 17.5 inches (445 mm)
• Width: 12.25 inches (311 mm)
• Front Track: 12.25 inches (311 mm)
• Rear Track: 12.25 inches (311 mm)
• Height: 7 inches (178 mm)
• Wheelbase: 11.38 inches (289 mm)
• Drivetrain: 2WD
• Transmission: Magnum 272
• Differential Type: Planetary steel gear
• Gear Ratio (Internal): 2.72 (final drive: 10.17)
• Gear Pitch: 48 pitch
• Servo(s): 2056 high torque waterproof
• Radio System: TQ 2.4 GHz 2-channel radio
• Battery Compartment Specs: 166 mm x 47.5 mm x 28 mm
• Motor Name: Titan 12T 550
• Motor Type: High-speed brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet
• ESC Name: Waterproof XL-5 ESC with low-voltage detection
• ESC Type: Brushed
• ESC Case Size: 1.23 in (31 mm) x 2.18 in (55 mm) x 0.61 in (15 mm)
• ESC Weight: 2.44 ounces (69 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 14 gauge

What's Included

• Pre-painted ProGraphix body with applied decals
• TQ 2.4 GHz 2-channel transmitter and Traxxas 6519 3-channel micro receiver
• Waterproof XL-5 electronic speed control
• Titan 12T 550 motor
• High-torque waterproof Traxxas 2056 steering servo
• 4-amp 12 V DC Peak Detecting Fast Charger
• 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD

Why Choose This Truck

The Traxxas Rustler XL-5 is ideal if you want a plug-and-play stadium truck that handles wet runs and rough yards thanks to waterproof electronics and a sealed receiver box. It’s easy to learn with Training Mode and EZ-Set programming, yet it has the drivetrain and shocks serious hobbyists will appreciate for sustained bashing and track days.
