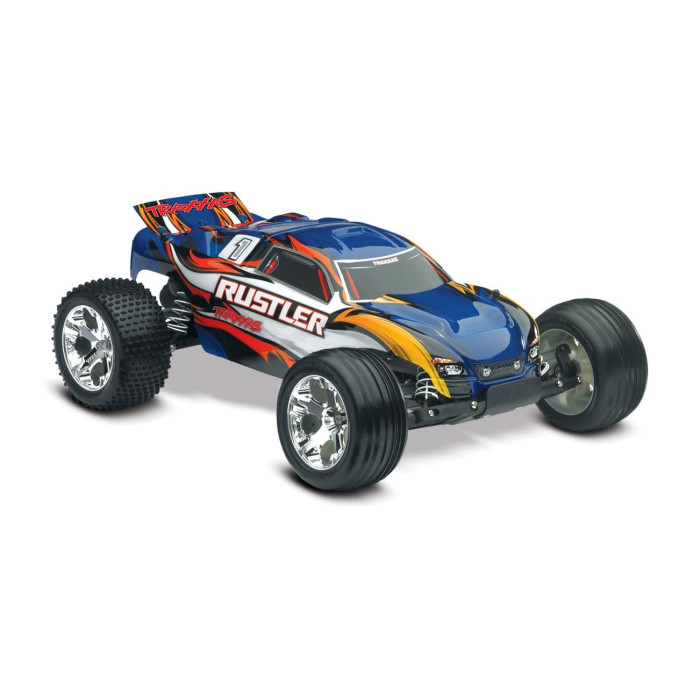

Traxxas Rustler XL-5 Stadium Truck RTR Brushed (Blue)

The Traxxas Rustler XL-5 Stadium Truck is a ready-to-run 1/10 stadium truck built for fast, dependable fun. It ships with waterproof electronics, a transmitter, the Traxxas iD battery and a fast charger, so you can get on the track or in the yard right away. This truck is a great fit for beginners and experienced drivers who want a durable, high-speed brushed rig.

Key Features

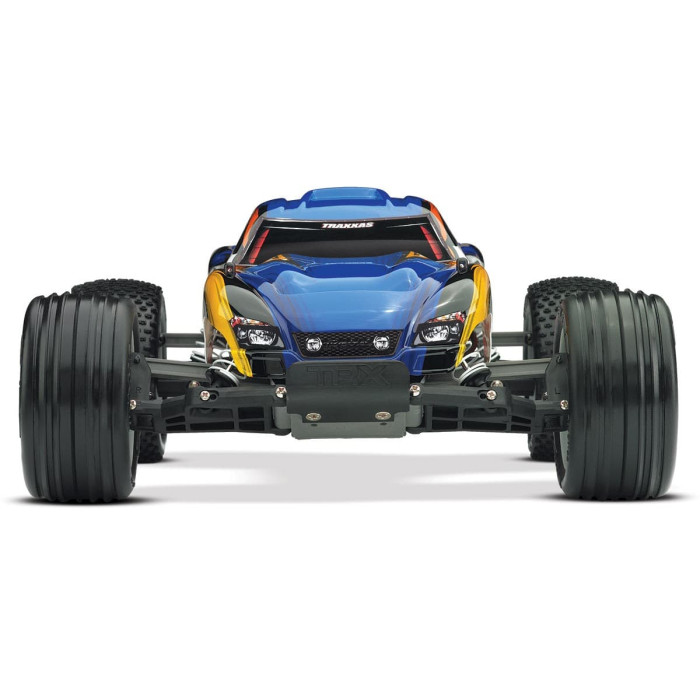

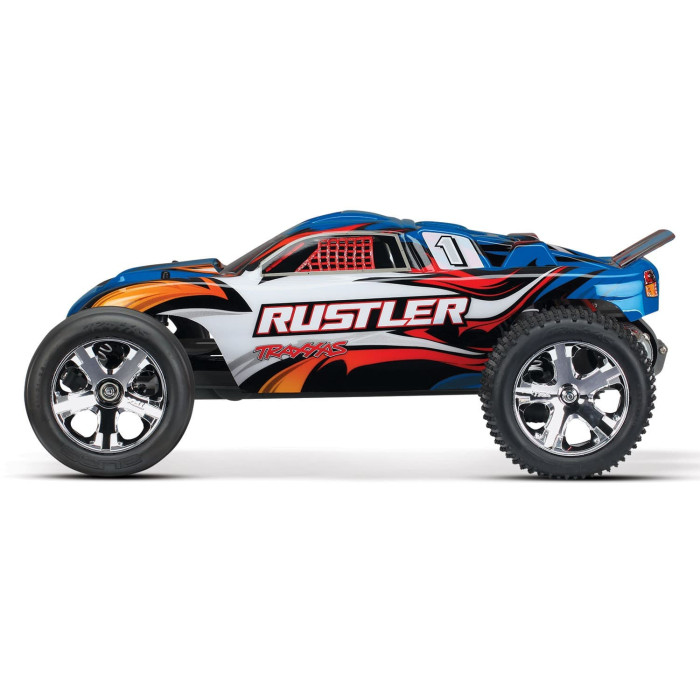

• ProGraphix painted body — pre-painted shell with applied decals for a race-ready look and a molded rear wing for stability at speed.
• Waterproof XL-5 electronic speed control — sealed design lets you run in wet or dusty conditions without worry.
• XL-5 drive modes: Sport (forward / brake / reverse), Race (forward / brake), and patented Training Mode (reduced power for safer learning).
• Traxxas EZ-Set one-button setup — easy configuration of the speed control for quick, reliable setup.
• Battery chemistry support — compatible with NiMH and short-form LiPo packs and features two-stage low-voltage detection for safe operation.
• Titan 12T 550 brushed motor — 550-size modified motor with internal cooling fan and oversized armature for strong torque and improved power handling.
• Motor design keeps maintenance low for lots of driving between tune-ups.
• TQ 2.4 GHz 2-channel radio system — ergonomic transmitter with internal antenna for comfortable control.
• Traxxas 6519 3-channel micro receiver included, with fail-safe security to keep the truck under control if signal is lost.

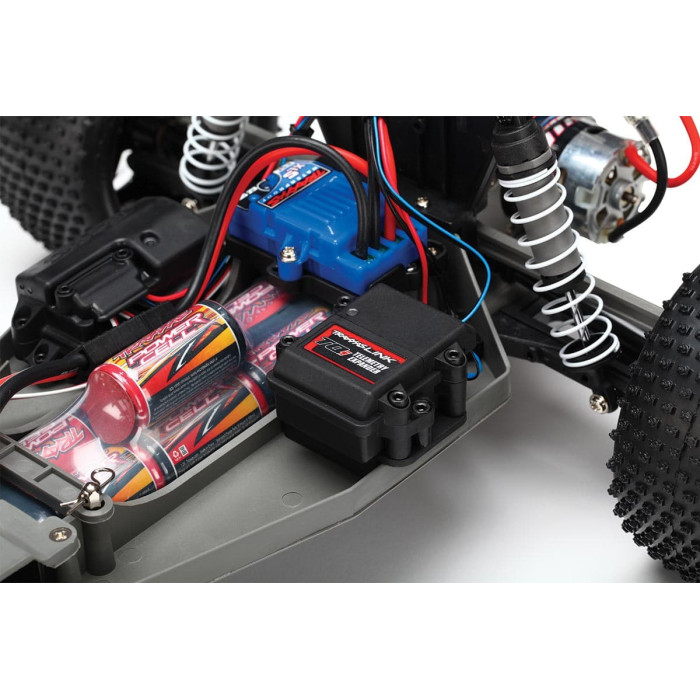

• Patented O-ring sealed watertight receiver box keeps the micro receiver dry and protected.
• Includes battery and charger — a 3000 mAh Traxxas 7-cell NiMH battery with iD and a 4-amp 12 V DC peak-detecting fast charger.

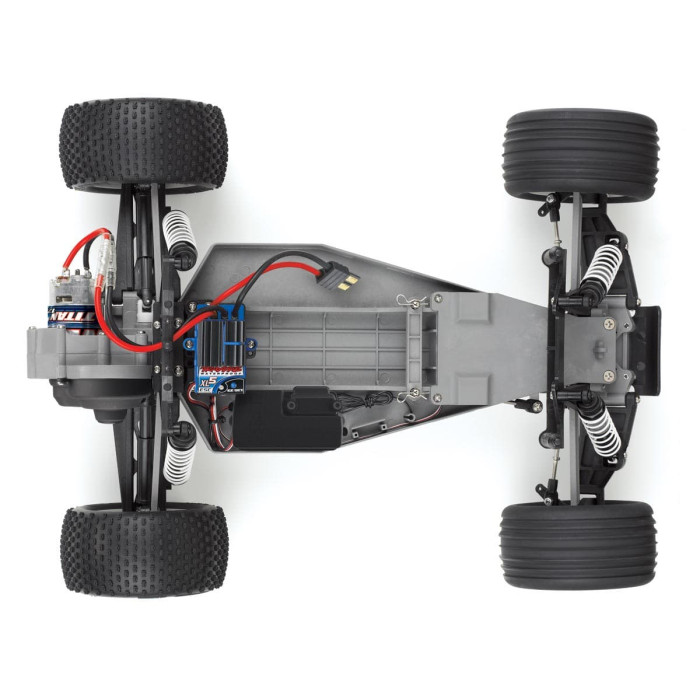

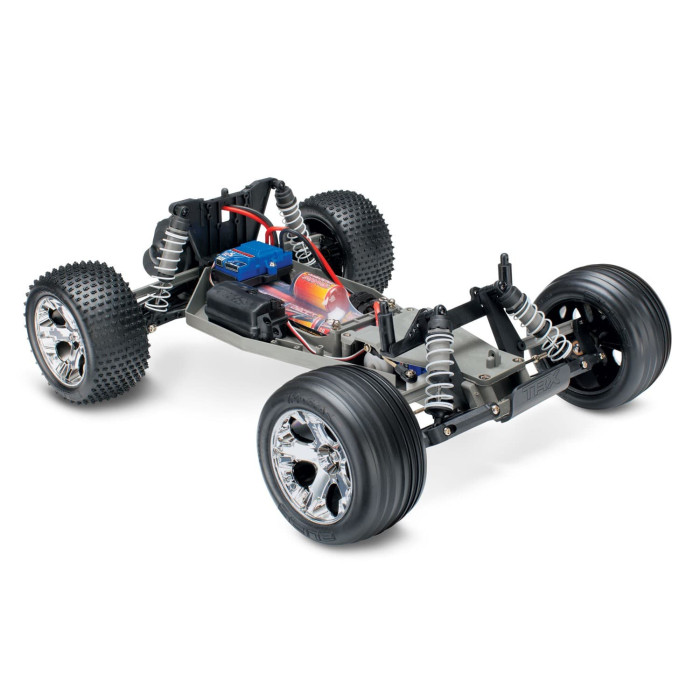

• Tough fiber-composite monocoque chassis — wide, low-profile design improves stability and keeps electronics securely fastened.

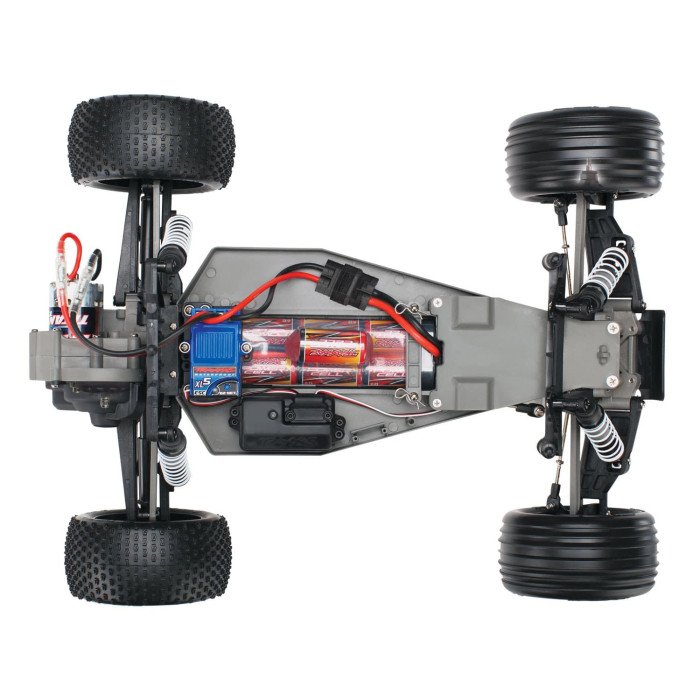

• Easy-access battery compartment — accepts 6-cell flat packs, 7-cell hump packs, and short-form 2-cell LiPo packs for flexible power options.

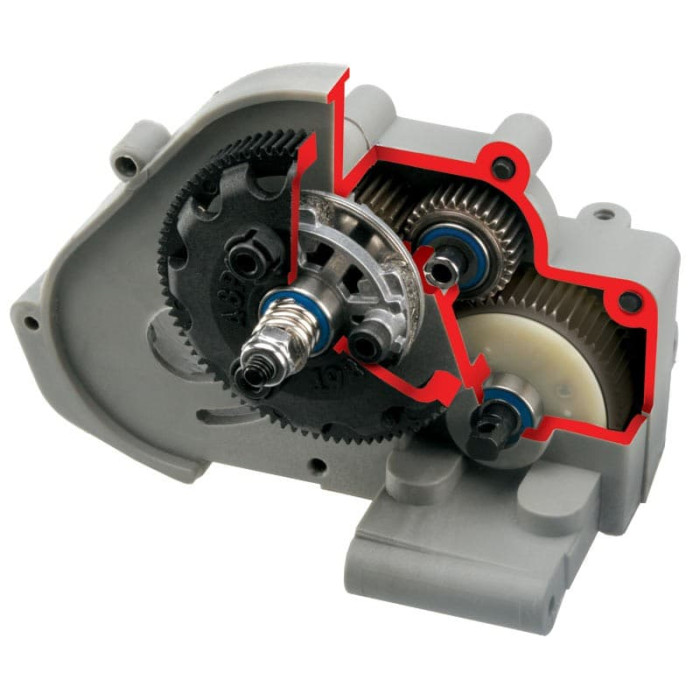

• Magnum 272 metal-gear transmission — brushless-ready gearbox with Torque-Control slipper clutch for tunable engagement.
• Planetary gear differential with steel ring gear for reliable power transfer.
• Sealed gearbox and beefed-up motor guard protect the transmission; external gear cover provides easy clutch access.

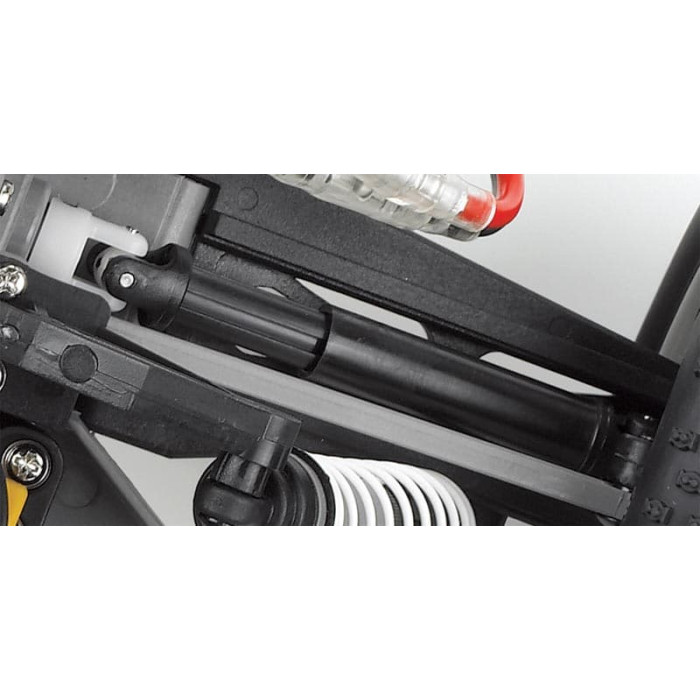

• Heavy-duty telescoping U-joint driveshafts and yokes for smooth driveline movement under load.

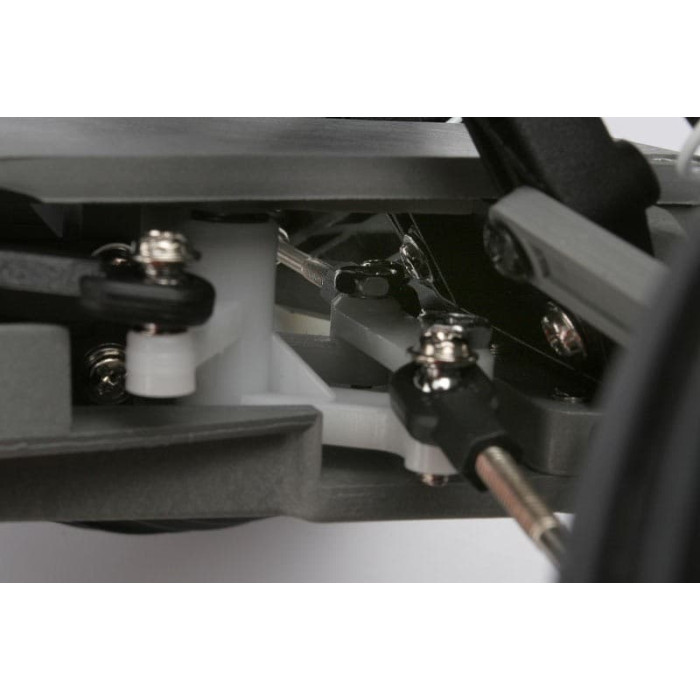

• Steering — high-torque waterproof Traxxas 2056 steering servo paired with a bellcrank system that reduces bump steer.

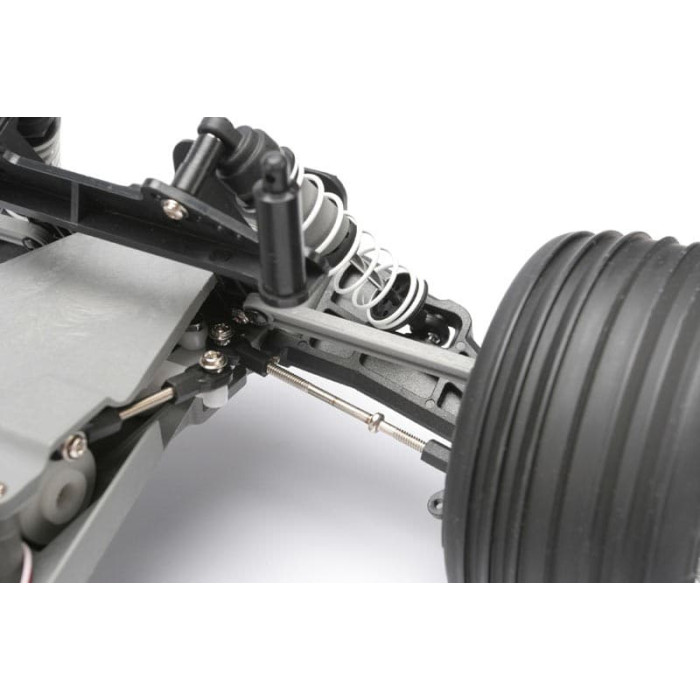

• Suspension — solid camber links eliminate the need for routine adjustment; captured rod ends resist popping off during hard impacts.

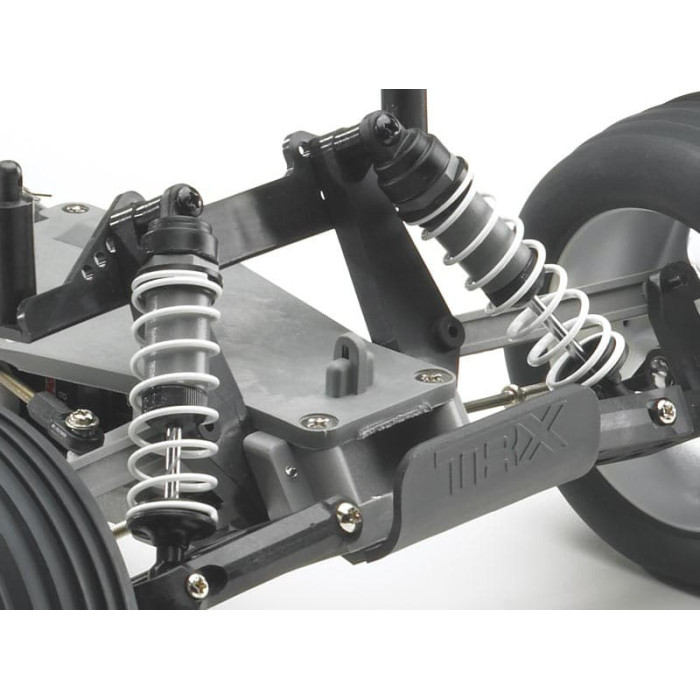

• Springs and shocks — fully adjustable oil-filled Ultra Shocks with X-ring seals and white powder-coated springs for consistent damping and long life.
• Wheels and tires — pre-glued Alias step-pin rear tires and ribbed front tires mounted on 2.8" mirror-chrome All-Star wheels with performance foam inserts for traction and predictability.
• Backed by extensive Traxxas support and broad parts availability for repairs and upgrades.

Technical Specifications

• Model Name: Rustler XL-5
• Model Type: Stadium Trucks
• Scale: 1/10
• Drivetrain: 2WD
• Transmission: Magnum 272 metal-gear
• Differential Type: Planetary steel gear
• Gear Ratio (internal): 2.72 (final drive: 10.17)
• Gear Pitch: 48 pitch
• Top Speed: 35+ mph with the included 7-cell battery and the optional 28-tooth pinion gear
• Skill Level: 1 (beginner-friendly)
• Weight: 3.73 pounds (1.69 kg)
• Length: 17.5 inches (445 mm)
• Width: 12.25 inches (311 mm)
• Front Track: 12.25 inches (311 mm)
• Rear Track: 12.25 inches (311 mm)
• Height: 7 inches (178 mm)
• Wheelbase: 11.38 inches (289 mm)
• Battery Compartment: 166 mm x 47.5 mm x 28 mm
• Motor Name: Titan 12T 550
• Motor Type: High-speed brushed
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet
• ESC Name: Waterproof XL-5 with low-voltage detection
• ESC Type: Brushed
• ESC Case Size: 1.23" x 2.18" x 0.61" (31 mm / 55 mm / 15 mm)
• ESC Weight: 2.44 ounces (69 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 14 gauge
• Servo(s): 2056 high-torque waterproof steering servo
• Radio System: TQ 2.4 GHz 2-channel

What's Included

• Traxxas Rustler XL-5 Stadium Truck (RTR) in Blue
• TQ 2.4 GHz 2-channel transmitter
• Traxxas 6519 3-channel micro receiver with fail-safe
• 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD
• 4-amp 12 V DC peak-detecting fast charger

Why Choose This Truck

The Traxxas Rustler XL-5 Stadium Truck balances speed, durability, and easy setup. It’s an excellent pick for new drivers because of its simple EZ-Set setup, training mode, and included battery and charger. Experienced hobbyists will appreciate the brushless-ready transmission, robust driveline, and wide aftermarket support for upgrades and repairs.
