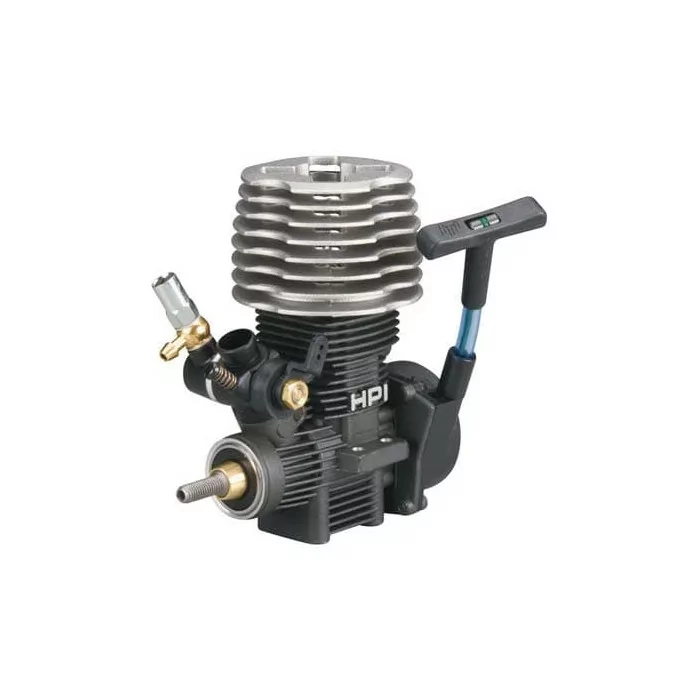

HPI Racing Nitro Star T3.0 Engine w/Pull Start

This is the HPI Nitro Star T3.0 Engine for use with the RTR Nitro RS4 3 Evo+.

FEATURES

• 1-piece black crankcase
• 6.5mm Rotary Carb
• Non-ringed/ ABC-type engine
• Standard crankshaft
• Side exhaust
• Heatsink Head

INCLUDES

• One assembled engine with glow plug
• One instruction manual and sticker sheet
• One air filter with instruction sheet
• Three zip ties
• One hex wrench

SPECIFICATIONS

• Height from crankcase bottom to top of cylinder head: 3.8" (96mm)
• Width including mounting tabs: 1.57" (40mm)
• Width below mounting tabs: 1.2" (31mm)
• Width between mounting holes same side: 0.43" (11mm)
• Width between mounting holes opposite side: 1.2" (31mm)
• Width of exhaust opening: 0.87" (22mm)
• Height of exhaust opening: 0.17" (4.2mm) Distance between muffler mounting holes 1.1" (28mm)
• Crankshaft Thread Size: 1/4-28
• Bore x Stroke: 16.8 x 13.6mm
• Displacement: 0.18 cu in (3.01cc)
• Maximum Power: 2.2PS/31,000 RPM
• REQUIRES Fuel with 20%-25% Nitromethane and 18% (minimum) oil content

COMMENTS

The factory setting of the needle valves are as follows:

• High speed needle: Flush with the carburetor body
• Low Speed Needle: Flush with the carburetor body
