Model number: TRA71076-3BLUE
Product Details
Fuel Type: Electric
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
More info
Fully assembled, Ready-To-Race®, with Traxxas Stability Management®, TQ 2.4GHz radio system, Velineon® 380 motor, VXL-3m electronic speed control, 7.2 volt NiMH battery with iD®, 2-amp DC peak detecting fast charger, and ProGraphix® painted body.
FEATURES
Traxxas Stability Management®
2-amp DC Peak Detecting Fast Charger
7.2 volt NiMH battery pack with iD®
TQi 2.4GHz radio system
Race-inspired suspension technology and integrated chassis design, perfectly optimized for 1/16 scale
Powered by the Velineon® Brushless Power System
Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
Velineon VXL-3m Electronic Speed Control
- LiPo and NiMH compatible with two-stage low-voltage detection
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Patented Training Mode™ - 50% Forward / Brake / 50% Reverse (patent pending)
Velineon 380 Brushless Motor
- High-performance sensorless design
- High-strength Neodymium magnets
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- Gold-plated 3.5 mm bullet connectors
Digital High-Torque Waterproof Micro Steering Servo
Waterproof, o-ring sealed receiver box
Sealed, silicone-filled differentials—an industry first in 1/16 scale
Torque-Control™ slipper clutch system
Telescoping universal-joint driveshafts
Rubber-sealed ball bearings
External gear cover with easy slipper access

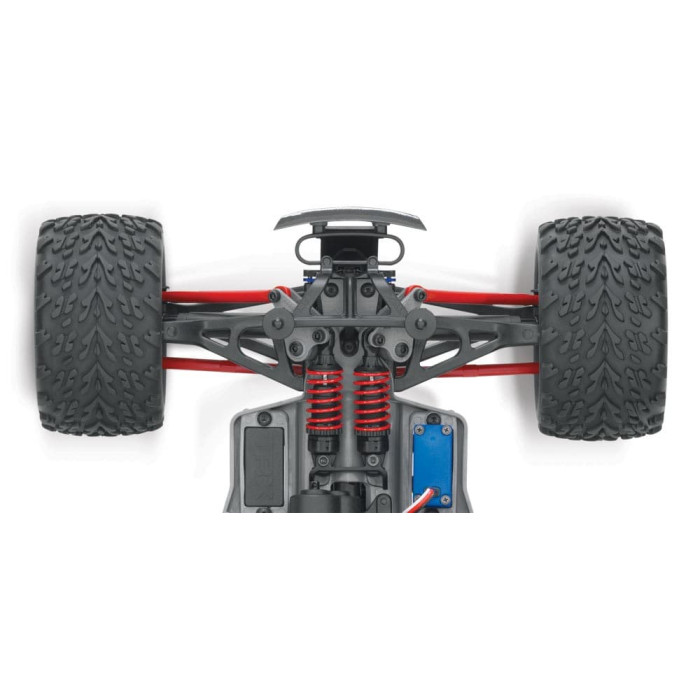

Rocker-actuated shocks provide true progressive damping and spring rates
Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
Fiber-composite monocoque chassis
Speed control and receiver are securely fastened to chassis
Integrated battery compartments with intake and exit cooling vents
Quick-release battery doors for fast pack changes
Scale all-terrain front and rear tires offer superior on- and off-road traction
Pre-glued Talon™ tires with high-performance foam inserts
Black-chrome Gemini™ 5-spoke wheels

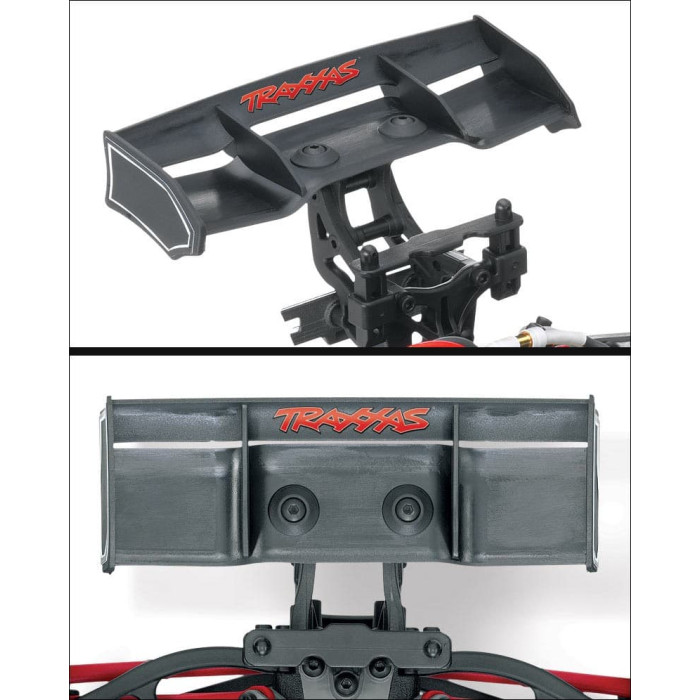

High-downforce rear wing
Full line of genuine Traxxas accessories available
E-Revo VXL is backed by unparalleled Traxxas support and parts availability
SPECIFICATIONS
Length: 12.9 inches (328 mm)
Front Track: 9.4 inches (239 mm)
Rear Track: 9.4 inches (239 mm)
Weight: 38 ounces (1.09 kg)
Height (overall): 4.6 inches (117 mm)
Wheelbase: 7.9 inches (202 mm)
Front Shock Length: 48 mm
Rear Shock Length: 48 mm
Front Tires (pre-glued): Talon™ 2.0"
Rear Tires (pre-glued): Talon™ 2.0"
Front Wheels: 2.0" Gemini™ (black-chrome)
Rear Wheels: 2.0" Gemini™ (black-chrome)
Electronic Speed Control: Waterproof Velineon® VXL-3m ESC
Motor (electric): Velineon® 380 Brushless
Transmission: Heavy-Duty Single Speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 9.00 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank
Radio System: TQi 2.4GHz w/Traxxas Stability Management®
Top Speed: 30+mph (50+mph with dual batteries)*
Skill Level: 2
Included Batteries: 6-cell NiMH with iD®
Included Charger:
2-amp DC peak detecting fast charger
Required Batteries: 4 "AA" (transmitter)
