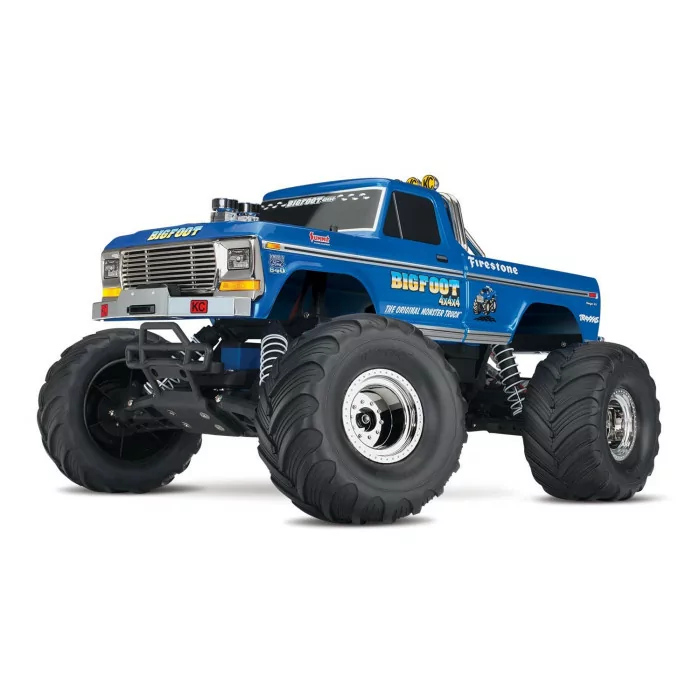

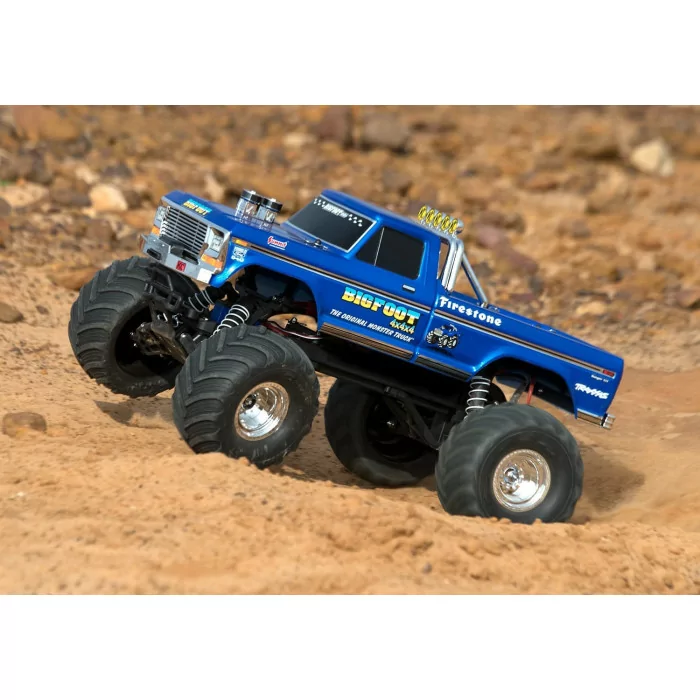

Traxxas BIGFOOT No.1 Monster Truck RTR 1/10 2WD

Traxxas BIGFOOT No.1 Monster Truck is a fully assembled 1/10 RTR replica that puts classic Bigfoot styling and practical off-road performance into one package. It comes ready with the radio system, a Traxxas NiMH battery and a 12 V fast charger so you can drive straight away; the setup is ideal for beginners or anyone who wants a scale monster truck without extra assembly.

Key Features

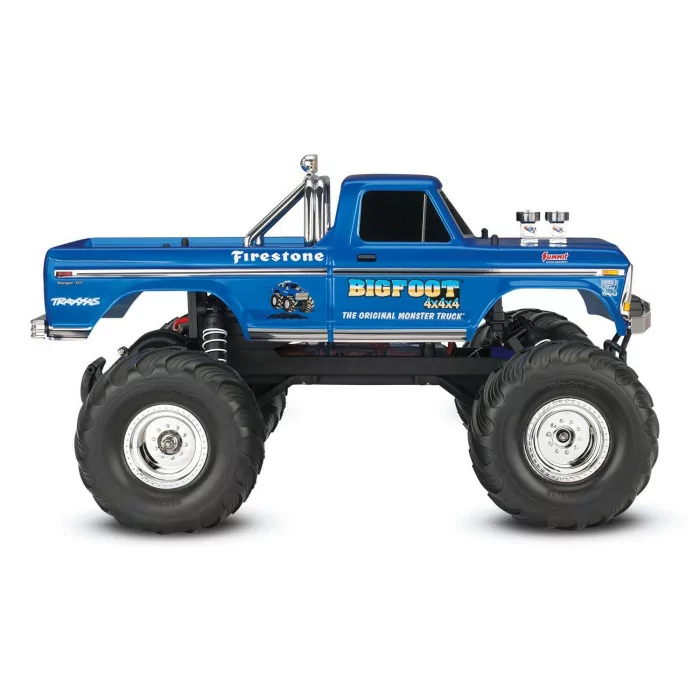

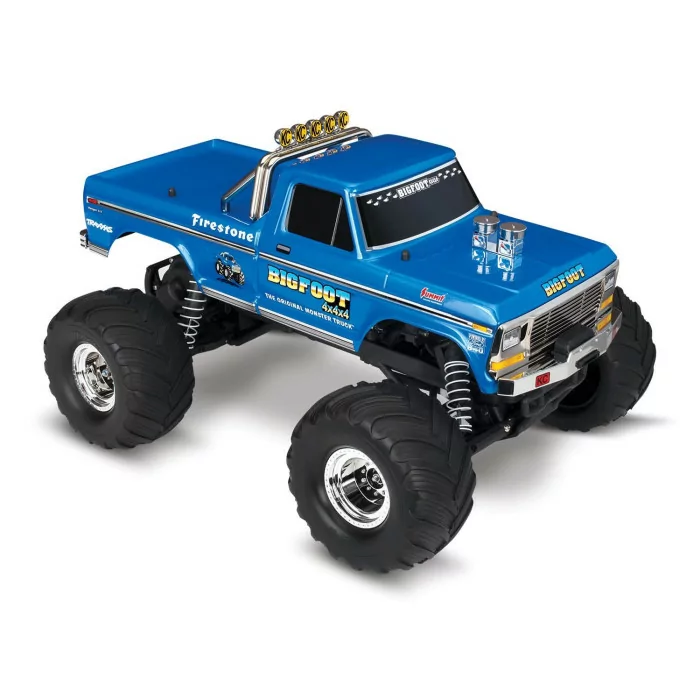

• Official BIGFOOT No. 1 body — Blue metallic F-100 Ford XLT Ranger styling with scale details for authentic looks on the trail or at the track.

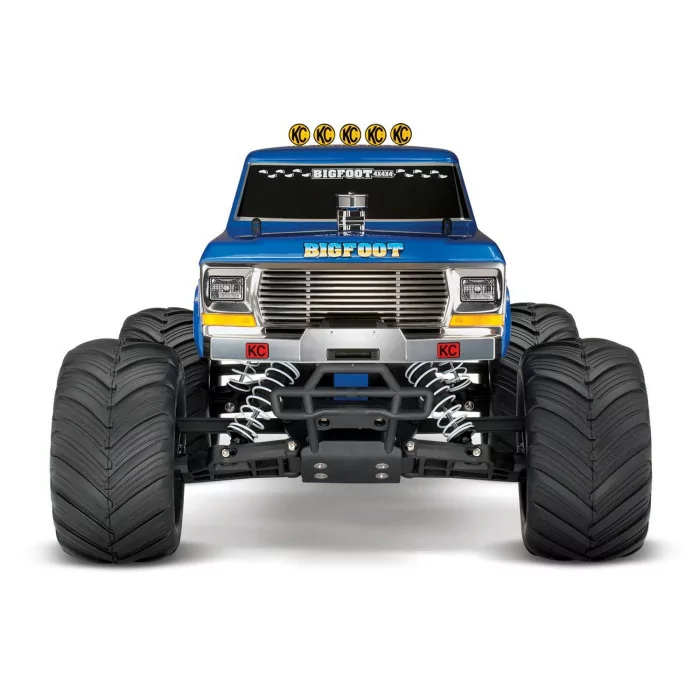

• Chrome trim and accessories — Front chrome bumper with replica winch, chrome grille with light buckets and reflectors, and chrome roll bar outfitted with replica KC lights for a period-correct appearance.
• Scale engine detail — High-rise dual-carb intake manifold adds realistic under-hood character to the replica body.
• Waterproof XL-5 electronic speed control — Sealed design handles wet or dirty conditions and includes Traxxas EZ-Set one-button programming for simple setup.
• Drive modes on the XL-5 — Sport (forward/brake/reverse), Race (forward/brake), and patented Training Mode that limits throttle to 50% forward/brake and 50% reverse for learning drivers.
• Battery chemistry compatible — XL-5 works with NiMH and LiPo packs and uses two-stage low-voltage detection to protect batteries.
• Titan 12T 550 brushed motor — High-speed brushed motor with an internal cooling fan and oversized armature for strong torque and improved power handling.
• Low-maintenance design — Systems and components are arranged for straightforward upkeep and reliable operation.
• TQ 2.4 GHz radio system — Ergonomic transmitter with internal antenna plus a Traxxas 6519 micro receiver for secure control and fail-safe protection.
• Watertight receiver box — Sealed enclosure keeps the micro receiver dry in wet conditions.
• Includes battery and charger — Supplied with a Traxxas NiMH drive battery and a 4-amp peak-detecting 12 V DC fast charger for quick turnarounds between sessions.

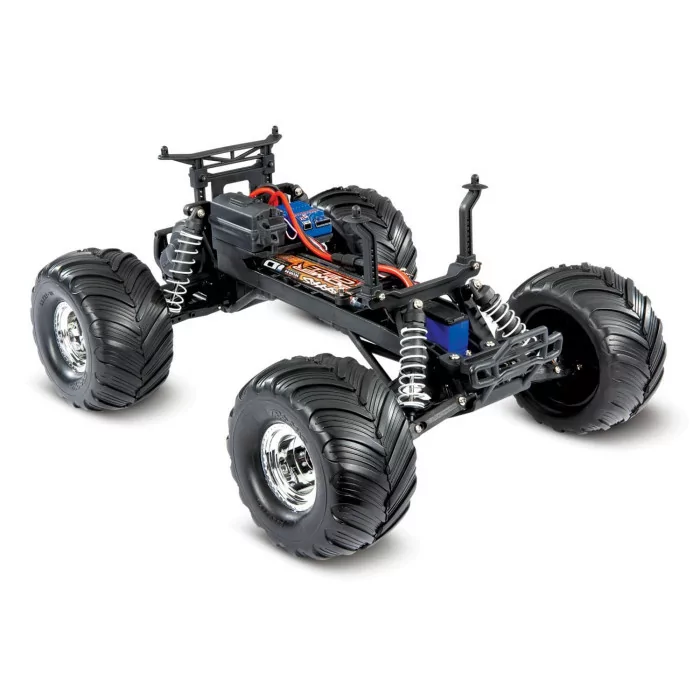

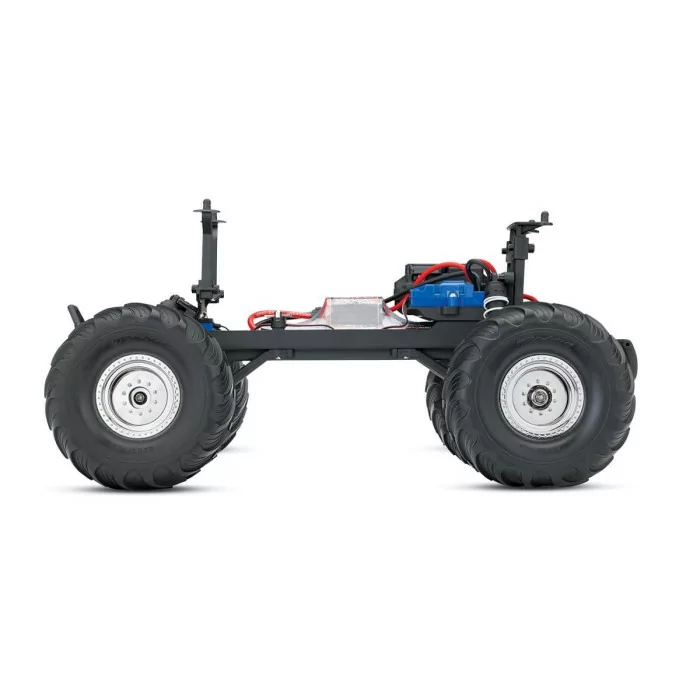

• Fiber-composite monocoque chassis — Stiff, single-piece chassis gives a solid mounting platform and keeps electronics firmly fastened.
• Generous ground clearance — 4 inches of center clearance helps the truck climb over roots, rocks, and yard obstacles.
• Easy-access battery compartment — Accepts NiMH 6- and 7-cell flat or hump packs and 2-cell LiPo packs for flexible power options.
• Magnum 272 metal-gear transmission — Brushless-ready gearbox with a Torque-Control slipper clutch for consistent power delivery and clutch protection.
• Planetary steel gear differential — Durable internal gearing with a steel ring gear for long service life.
• Sealed gearbox and motor guard — Protects the transmission while an external gear cover supplies easy access to the slipper clutch.
• Heavy-duty driveline — Telescoping U-joint driveshafts and yokes handle suspension travel and impacts without binding.
• Powerful steering — High-torque waterproof Traxxas 2056 steering servo with a spring-loaded servo saver to absorb shocks to the steering train.
• Simple suspension setup — Solid camber links that don’t require frequent adjustment and captured rod ends that resist popping off during hard use.
• Adjustable Ultra Shocks — Oil-filled shocks with X-ring seals and white powder-coated springs for tunable damping and consistent performance.
• Scale wheels and tires — Pre-glued, high-profile Terra-Groove shaved monster truck tires mounted on 2.2" deep-dish mirror-chrome beadlock-style wheels for authentic look and improved traction.
• Strong parts support — Full Traxxas parts availability and support keep this truck on the trail for years.

Technical Specifications

• Model Name: BIGFOOT No.1
• Model Type: Monster Truck
• Scale: 1/10
• Skill Level: 1 (beginner-friendly)
• Model Speed: 30+ mph with supplied 7-cell pack and the included optional 19-tooth pinion gear
• Weight: 4.08 pounds (1.85 kg)
• Length: 16.25 in (413 mm)
• Width: 12.75 in (324 mm)
• Front Track: 12.75 in (324 mm)
• Rear Track: 12.75 in (324 mm)
• Height: 9.5 in (241 mm)
• Wheelbase: 10.63 in (270 mm)
• Center Ground Clearance: 4.00 in (102 mm)
• Drivetrain: 2WD
• Transmission: Magnum 272 metal-gear
• Differential Type: Planetary steel gear
• Internal Gear Ratio: 2.72 (final drive: 12.34)
• Gear Pitch: 48 Pitch
• Servo: Traxxas 2056 high-torque waterproof
• Radio System: TQ 2.4 GHz 2-channel
• Battery Compartment: 164 mm x 46 mm x 26 mm
• Motor Name: Titan 12T 550
• Motor Type: High-speed brushed motor
• Motor Weight: 8.47 oz (240 g)
• Motor Length: 3.07 in (78 mm) overall, 2.25 in (57 mm) can length
• Motor Diameter: 1.41 in (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector: Bullet
• ESC: Waterproof XL-5 with low-voltage detection (brushed)
• ESC Case Size: 1.23 in / 2.18 in / 0.61 in (31 mm / 55 mm / 15 mm)
• ESC Weight: 2.44 oz (69 g)
• ESC Motor Connectors: Bullet
• Battery Connectors: Traxxas High Current Connector
• ESC Power Wire: 14 gauge

What's Included

• Fully assembled Traxxas BIGFOOT No.1 Monster Truck RTR
• TQ 2.4 GHz transmitter and Traxxas 6519 micro receiver (sealed watertight receiver box)
• Traxxas 3000 mAh 7-cell NiMH battery with iD
• 4-amp 12 V DC peak-detecting fast charger
• Optional 19-tooth pinion gear (included per speed spec)
• Pre-mounted Titan 12T 550 brushed motor and Waterproof XL-5 ESC

Why Choose This Truck

This model pairs authentic Bigfoot styling with Traxxas durability and simple, user-friendly electronics—perfect for newcomers and hobbyists who want an out-of-the-box driving experience. The waterproof electronics, easy battery access, and full parts support make it a practical choice for regular use and long-term ownership.
