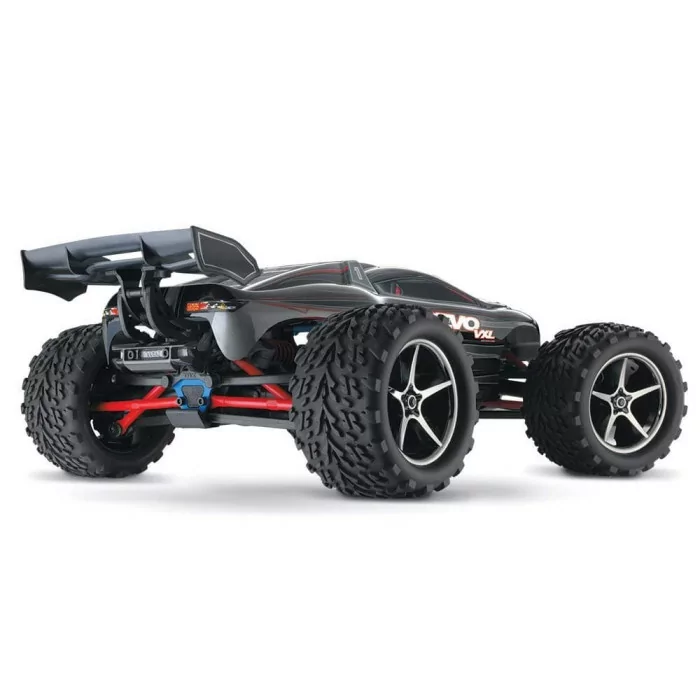

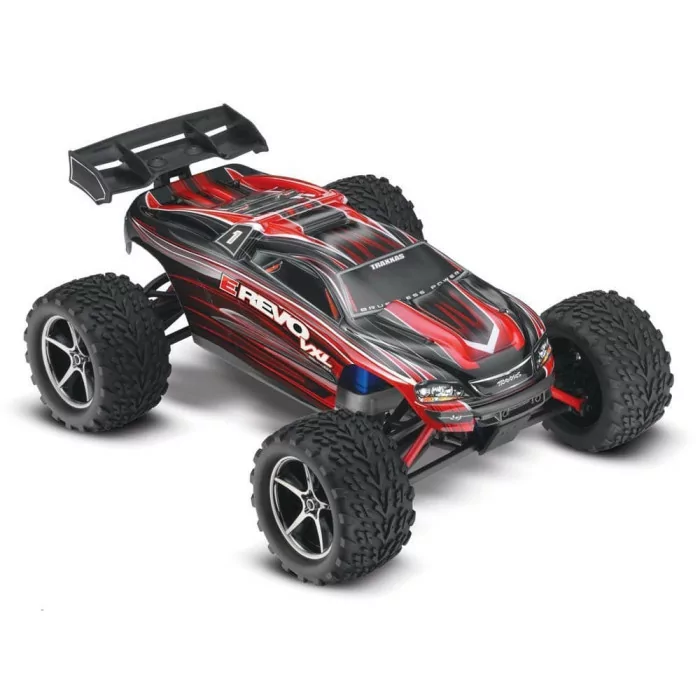

Traxxas E-Revo Monster Truck 1/16 RTR VXL Brushless

Traxxas E-Revo Monster Truck is a ready-to-run 1/16 scale VXL brushless 4WD machine built for high-speed bashing and tight handling. It pairs a Velineon 380 brushless motor with the waterproof VXL-3m speed control and Traxxas Stability Management (TSM) so you get strong, controllable acceleration and predictable handling on low-traction surfaces.

Key Features

• ProGraphix painted body — 1/16 scale pre-painted shell with applied decals and a high-downforce composite wing for improved aero stability.
• Waterproof VXL-3m ESC — sealed design handles wet, muddy conditions while giving Sport, Race and patented Training Mode options.
• ESC drive modes — Sport mode (forward / brake / reverse), Race mode (forward / brake) and Training Mode (50% forward/brake, 50% reverse) for step-up learning and safe practice runs.
• EZ-Set one-button setup — simple on-board programming lets you get the system configured fast.
• High-capacity heat sink — helps keep the VXL-3m running cool during extended high-load sessions.
• Battery compatibility — accepts NiMH packs (6–12 cells) and LiPo packs (2–3 cells) for flexible runtimes and power options.
• Velineon 380 brushless motor — 8-turn, 4000 kV design tuned for smooth sensorless power and strong throttle response.
• Premium motor components — ultra high-temperature sintered Neodymium magnets and gold-plated 3.5 mm bullet connectors for reliable connections.
• Traxxas Stability Management (TSM) — fine-tunes traction and steering to improve straight-line acceleration, braking and throttle-on powerslides without reducing top-end throttle.
• TSM adjustability — assistance can be set from off to 100% from the transmitter to match skill level and surface conditions.
• TQi 2.4 GHz radio system — 2-channel high-output transmitter with a programmable multi-function knob and adjustable dual rates and exponential for steering and throttle.
• 5-channel micro receiver (6533) — includes fail-safe and integrated telemetry ports; stores settings for up to 30 Traxxas Link-enabled models.
• Traxxas Link compatible — supports the optional Traxxas Link Wireless Module to access the Traxxas Link app (module sold separately).
• Patented sealed receiver box — provides added protection for the receiver and wiring in wet conditions.
• Includes battery and charger — 2-amp 12 V DC peak-detecting fast charger and a 1200 mAh Traxxas 6-cell NiMH battery with iD for out-of-the-box running.

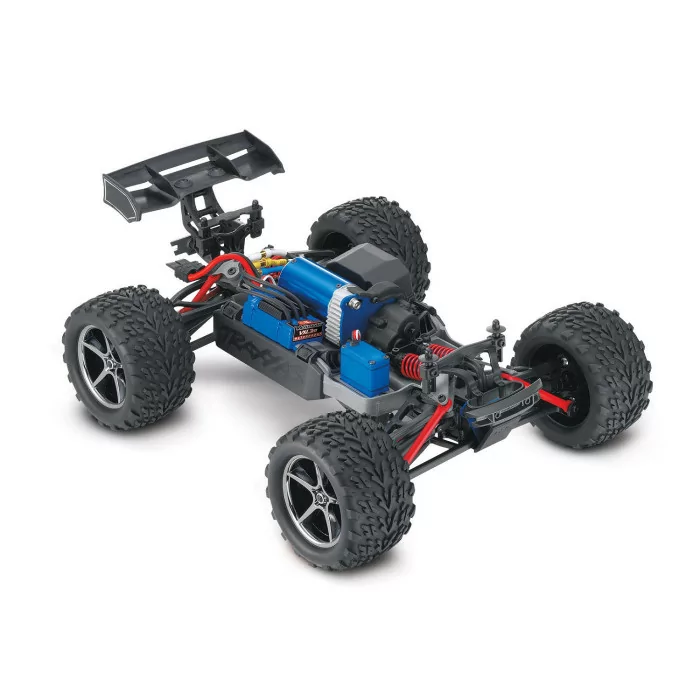

• Fiber-composite monocoque chassis — low center of gravity design improves handling; integrated skid plates protect the driveline.
• All electronics secured — VXL, receiver and servo are fastened to the chassis for reliable mounting under hard use.
• Dual integrated battery compartments — quick-release battery doors and intake/exhaust cooling vents help control pack temperature and speed pit stops for pack swaps.
• Shaft-driven 4WD — full-time shaft-driven system with a sealed heavy-duty single-speed transmission for dependable power transfer.
• Adjustable slipper clutch — tune drivetrain engagement for traction and wheelspin control.
• Sealed silicone-filled differentials — hardened steel bevel gears provide long life under load.
• Heavy-duty telescoping U-joint driveshafts — durable design handles jumps and impacts.
• Steering — digital sealed Traxxas 2080 steering servo with servo horn and integrated servo saver for precise steering control.
• Suspension — twin-arm pivot ball layout with progressive rocker-arm damping for extreme travel and captured rod ends that resist popping off.
• Shocks and springs — inboard fully adjustable oil-filled GTR shocks with adjustable preload collars and red powder-coated springs.
• Wheels and tires — pre-glued Talon tires mounted on 53 mm Gemini 5-spoke chrome wheels with high-performance foam inserts.
• Rubber-sealed ball bearings — reduce friction throughout the drivetrain and wheel hubs.
• Precision hex hardware — machine-fit fasteners where it matters for repeatable assembly and repairs.
• Traxxas support and parts availability — wide parts network for repairs and upgrades.

Technical Specifications

• Model Name: 1/16 E-Revo VXL -TSM
• Model Type: Monster Truck
• Model Speed: 30+ mph (50+ mph with dual batteries)
• Model Skill Level: 2 (ideal for intermediate drivers)
• Scale: 1/16
• Weight: 2.4 pounds (1.09 kg)
• Length: 12.9 inches (328 mm)
• Width: 9.4 inches (239 mm)
• Front Track: 9.4 inches (239 mm)
• Rear Track: 9.4 inches (239 mm)
• Height: 4.6 inches (117 mm)
• Wheelbase: 7.9 inches (202 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Heavy-duty single speed
• Differential Type: Hardened steel bevel, sealed
• Gear Ratio (Internal): 5.04:1
• Gear Pitch: 48 pitch
• Servo(s): 2080 digital waterproof (sealed) steering servo
• Radio System: TQi 2.4 GHz 2-channel transmitter with TSM receiver (5-channel micro receiver 6533)
• Motor Name: Velineon 380
• Motor Type: Sensorless brushless
• Motor Weight: 4.49 ounces (140 g)
• Motor Length: 2.4 inches (61 mm) overall, 1.9 inches (48 mm) can length
• Motor Diameter: 1.09 inches (28 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: 3.5 mm bullet connectors
• ESC Name: Waterproof Velineon VXL-3m ESC
• ESC Case Size: 1.06 in (27 mm) / 1.85 in (47 mm) / 0.87 in (22 mm)
• ESC Weight: 1.34 ounces (38 g)
• Motor Connectors: 3.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connector
• ESC Power Wire: 16 gauge

What's Included

• Traxxas 1/16 E-Revo VXL ready-to-run monster truck (vehicle)
• TQi 2-channel transmitter and 5-channel micro receiver (6533)
• 1200 mAh Traxxas 6-cell NiMH battery with iD
• 2-amp 12 V DC peak-detecting fast charger

Why Choose This Truck

This truck is built for drivers who want compact, high-speed performance without the setup headache. Brushless Velineon power, a waterproof VXL-3m ESC and TSM give you raw speed plus predictable control on loose surfaces. Comes RTR with radio, battery and charger so you can get on-track or on-the-trail right away.
