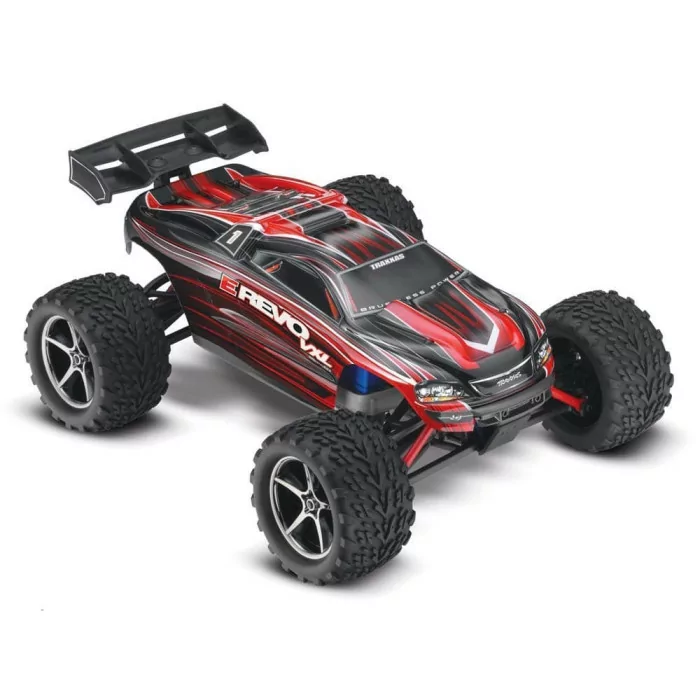

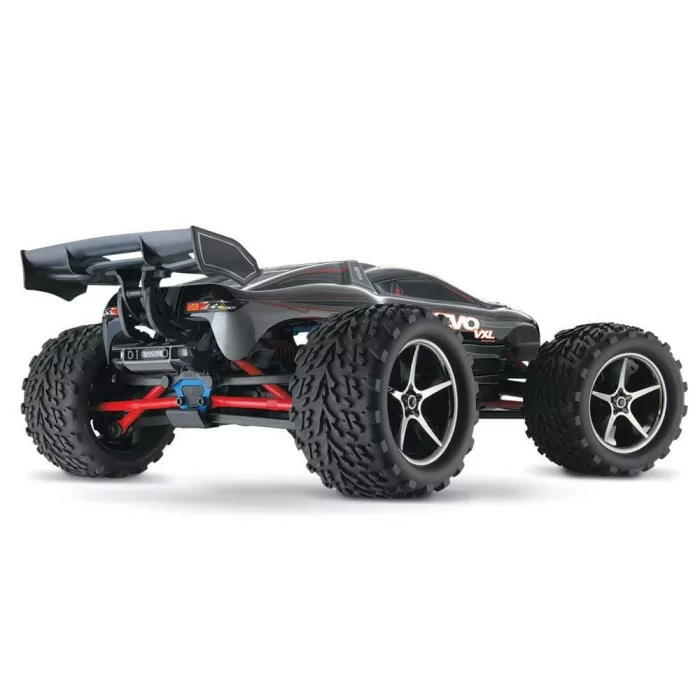

Traxxas 1/16 E-Revo VXL TSM 4WD RTR

This is the electric powered, 2.4GHz radio controlled, ready to run 1/16 scale Traxxas E-Revo VXL Racing Monster Truck with Traxxas Stability Management.**The included TQ 2.4GHz radio systemn**does NOT accept the Docking Base accessory.**

FEATURES

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app.
• Chassis: Nylon composite construction 0.08" (2mm) thick bathtub type
• Drive: Four wheel
• Radio: Traxxas TQi 2.4GHz with waterproof digital high-torque steering servo, waterproof receiver box
• Electronic Speed Control: Traxxas VXL-3m waterproof, with high- current connector, training mode, reverse and low voltage detection for use with 2S and 3S LiPo packs
• Motor: Traxxas Velineon 380 brushless motor with Neodymium magnets, sintered rotor and high RPM ball bearings, 3.5mm gold plated bullet connectors
• Spur Gear: 45 tooth
• Pinion Gear: 28 tooth 48 pitch, extra pinion gear included for 50+ MPH operation with extra battery (see below)
• Battery: One Traxxas Power Cell 1200mAh 6-cell NiMH w/iD Auto
• Battery identification that allows Traxxas iD equipped chargers to automatically set and optimize charge settings
• **NOTE the ESC and motor CANNOT handle dual LiPos, if using dual batteries, both must be NiMH.**
• Battery Charger: 2A DC powered peak detecting
• Body: Painted and trimmed with applied decals
• Bumper: Front, black chrome
• Shocks: GTR oil filled
• Suspension: Revo-spec rocker actuated long travel inboard type with telescoping universal joint shafts
• Transmission: Ball bearing equipped with adjustable slipper clutch
• Differentials: Sealed silicone filled planetary gear type
• Ball Bearings: Rubber sealed
• Caster: Non-adjustable
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Tires: Multi terrain, with foam inserts 1.8" (46mm) wide, 3.2" (82mm) diameter
• Wheels: Gemini 5-spoke with black chrome finish 1.5" (38mm) wide, 2" (51mm) diameter, standard size 12mm hex
• Steering arm with spring loaded servo protection

INCLUDES

• RTR Traxxas E-Revo VXL Racing Monster Truck with TQ 2.4GHz radio, TSM, painted body, 6-cell battery, charger, extra pinion gear and instruction manual

SPECIFICATIONS

• Vehicle-
• Length: 12.9" (328mm)
• Width: 9.4" (239mm)
• Height: 4.6" (117mm)
• Front and Rear Track: 9.4" (239mm) distance between outer edges of
• wheels
• Wheelbase: 7.9" (202mm)
• Ground Clearance: 1.7" (43mm)
• Body-
• Length: 11.3" (288mm)
• Width: 4.3" (110mm)
• Height: 2.8" (71mm)

COMMENTS

• The ball bearings in the Traxxas E-Revo VXL are rubber sealed.
• Following are the stock numbers for the replacement bearings from
• Traxxas and non-rubber sealed alternatives from Duratrax;
• Qty. Size Location Qty. Bearing Set
• 2 8x12mm Fr Drivshaft 1 TRAC7020 DTXC1581
• 2 4x8mm Fr Hubs 1 TRAC7019 DTXC1511
• 2 8x12mm Rear Drivshaft 1 TRAC7020 DTXC1581
• 2 4x8mm Rear Hubs 1 TRAC7019 DTXC1511
• 2 4x8mm Fr Diff 1 TRAC7019 DTXC1511
• 2 5x8mm Steering Bellcrank 1 DTXC1523
• 2 4x7mm Rocker Arm Post 2 DTXC1507
• 4 8x12mm Differentials 2 TRAC7020 DTXC1581
• 4 4x8mm Differentials 2 TRAC7019 DTXC1511
• 6 4x8mm Transmission 3 TRAC7019 DTXC1511
• 2 4x8mm Rear Ring Gear 1 TRAC7019 DTXC1511
• The Traxxas 2.4GHz E-Revo VXL is available in the following colors;
• Blue, TRAD12BB Red, TRAD12RR
• Black, TRAD12LL Silver, TRAD12SS
