Model number: TRA2085
The Traxxas Maxx High-Torque Metal Gear Servo steers with full all-metal gears and ball bearings. It puts out 23% more torque than the standard 2085 servo. The servo requires the Maxx mount and does not fit other vehicles.
Product Details
The Traxxas Maxx High-Torque Metal Gear Servo steers with full all-metal gears and ball bearings. It puts out 23% more torque than the standard 2085 servo. The servo requires the Maxx mount and does not fit other vehicles.
Cars: Traxxas Funco, Traxxas Maxx, Traxxas Slash
Use: Upgrade
Torque: 365oz/in
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
More info
The Traxxas Maxx High-Torque Metal Gear Servo is the steering servo that turns your wheels. Inside, it uses full all-metal gears and ball bearings for increased precision. The servo puts out 23% more torque than the standard 2085 servo to take on the most extreme environments.
Build and specifications
A preinstalled aluminum heat sink helps dissipate heat and prolong servo life.
- Torque: 365 oz/in
- Speed: 0.17 sec/60° at 6V
- Dimensions: 1.97 x 2.0 x 0.98 in (50 x 51.5 x 24.9 mm), not including the heat sink
- Weight: 3.6 oz (103 g) including the heat sink
What's in the box

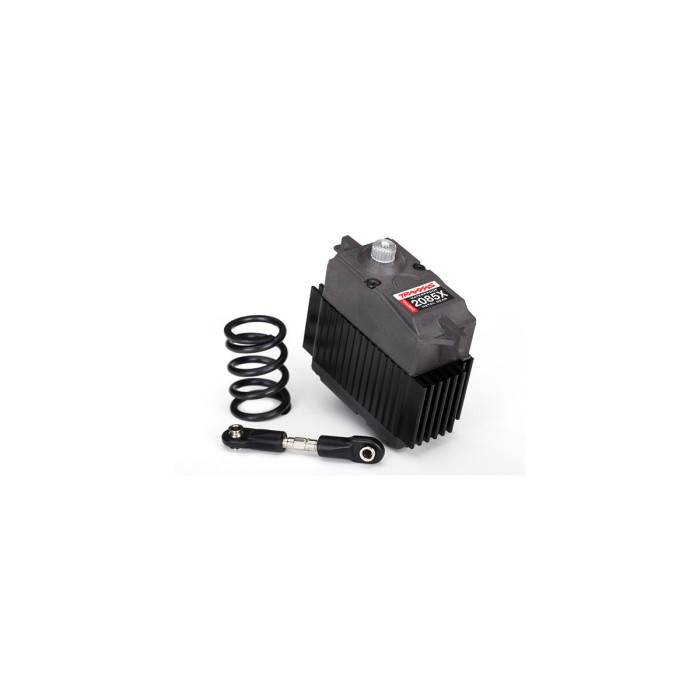

The box includes the servo with a wire lead and connector. The kit also includes a stiffer servo saver spring and steel steering linkage. Together they give maximum steering authority and control during high speed driving.
Fitment and what to check before buying
The servo requires the Maxx mount found in the Maxx, X-Maxx, and XRT. You can fit it to the Maxx, X-Maxx 8S, Maxx Slash, and Funco Pro Scale Replica. It does not fit other vehicles.
