Model number: CSE010-0140-00
Product Details
Use: Upgrade
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
More info

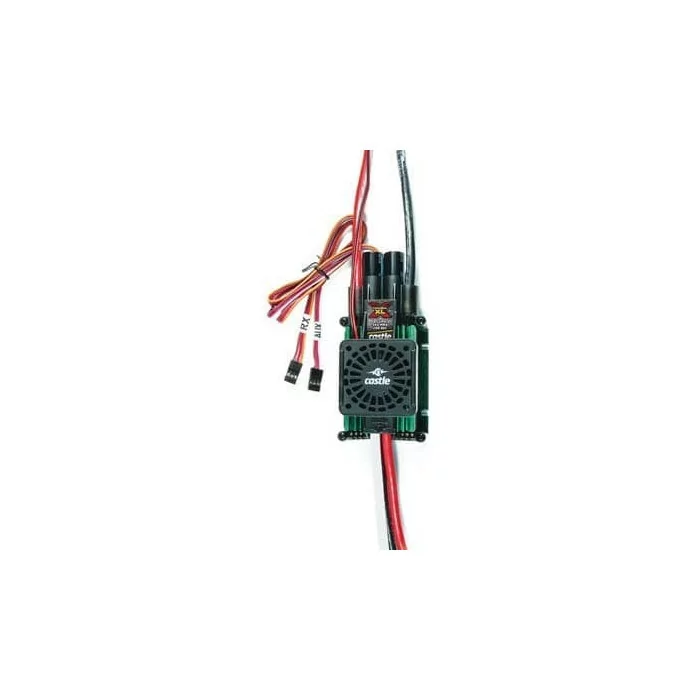

This is the Castle Creations Mamba XL X Electronic Speed Control with Cooling Fan.
FEATURES
- For 1/5 scale ultra high performance vehicles weighing up to 30lbs (13.6kg)
- Adjustable 20A peak BEC handles powerful servos and electrical components that run off of the ESC
- Link Live software enhancement allows drivers to experience real-time telemetry data such as battery voltage, battery current, and ESC temperature
- User programmable auxiliary wire allows drivers to make on-the-fly adjustments using their transmitter through the Castle Link
- Programming system
- Profiles can be custom designed on a PC with the Castle Link
- PC programming software (software not included, can be downloaded for free from Castle's website, voucher is included for free Castle Link Programmer)
On the Fly Programming modes include;
- Max Throttle Percentage Adjustment
- Max Reverse Percentage Adjustment
- Max Brake Percentage Adjustment
- Drag Brake Adjustment
- Reverse Enable/Disable
- Torque Control Adjustment
- Datalog Erase
- One year limited warranty through Castle Creations beginning at date of purchase
INCLUDES
- Mamba XL X ESC with Cooling Fan
- Motor
- Battery
- Receiver Leads
- Voucher for free Castle Link Programmer
REQUIREMENTS
High current connector designed for high-powered electric systems rated for 100+ amps such as the Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
SPECIFICATIONS
- Input Voltage Range: MIN: 3S LiPo, MAX: 8S LiPo
- On/Off Switch: No
- BEC: Adjustable from 5V to 8.4V (20A peak), default 5.5V
- Length: 4.81" (122.23mm)
- Width: 2.06" (52.38mm)
- Height: 2.75" (69.85mm)
- Weight: 10.4oz (294g) without battery connector
