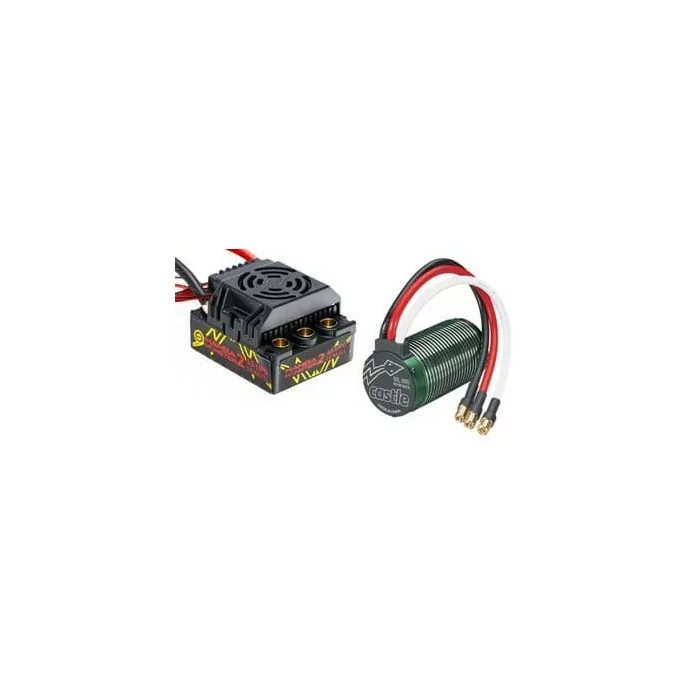

This is the Mamba Monster 2 25V Electronic Speed Control and the Neu Castle 1515 1Y 2200kV Motor, from Castle Creations.
FEATURES
Neu Castle 2200kV Brushless Motor;
- Ideal for 1/8 scale monster trucks using 6S LiPO batteries
- High quality oversized ABEC-1 front and rear ball bearings
- Sintered Neodymium magnets
- 6.5mm gold connectors with 10 gauge wires (OK to shorten)
Mamba Monster 2 25V ESC;
- Compatible with on-road, buggies, truggies and monster trucks running up to 6S LiPo batteries and weighing up to 15lbs (6.8kg)
- Waterproof design allows running in nearly any environment (see COMMENTS below)
- Profiles can be custom designed on a PC with the Castle Link
- PC programming software (software not included, can be downloaded for free from Castle's website, voucher is included for free Castle Link Programmer)
- Solder posts allow battery wire length and direction to be easily changed
- One year limited warranty through Castle Creations beginning at date of purchase. Warranty does not cover abuse, neglect, or damage due to incorrect wiring, over voltage or overloading
INCLUDES
- Mamba Monster 2 25V ESC with Cooling Fan
- On/Off Switch, Fan Plug
- Motor Wires, Receiver Wire with Connector and Instructions
- 2200KV Neu Castle Brushless Motor with 10 Gauge Leads
- Connectors
- Instructions
- Voucher for free Castle Link Programmer
SPECIFICATIONS
ESC, CSEM0800
- Input Voltage: 2S-6S LiPo
- BEC: User selectable output between 5 and 7 volts
- Brake: Proportional
- Reversible: Yes, with lockout
- Dimensions: 1.86 x 2.19 x 1.33" (47 x 56 x 34mm)
- Weight: 3.93oz (111.5g) without battery connector
Motor, CSEC0400
- Max Input Volts: 25.2
- Amp Rating: 120
- Weight: 15oz (424g)
- Motor Diameter: 1.57" (39.98mm)
- 1.64" (41.78mm) with fins
- Motor Length: 2.9" (75.18mm)
- Shaft Diameter: 0.197" (5mm)
- Ball Bearings: Oversize ABEC-1 front and rear
- Connector: 6.5mm gold
COMMENTS
Not intended for use while submerged in liquid. Fan on ESC is not water resistant. Remove fan from ESC before exposing vehicle to liquids.
