Model number: CSE010015001
Product Details
Use: Upgrade
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
More info

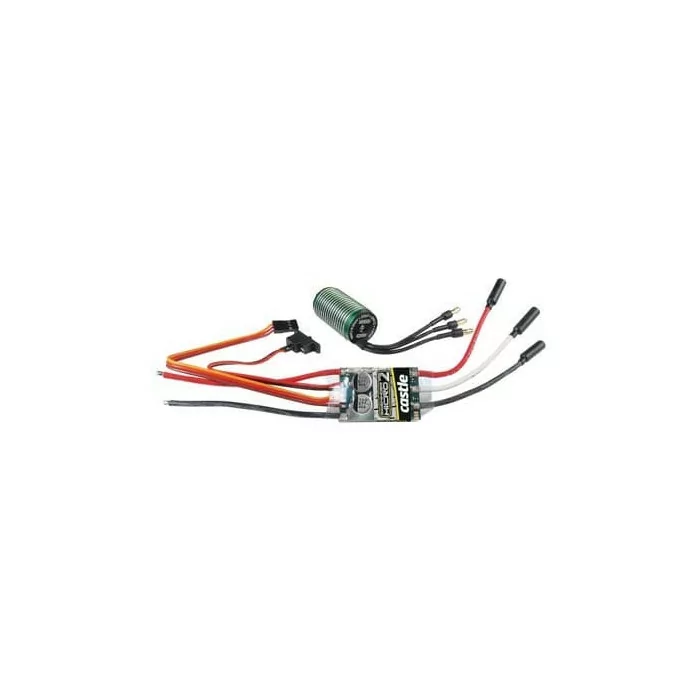

This is the 1/18 scale Castle Creations Sidewinder 2 Micro Electronic Speed Control and the 0808 Inrunner 4100kV Brushless Motor.
FEATURES
- Sidewinder 2 Micro ESC, CSEM5001
- For 1/18 scale radio controlled vehicles weighing up to 2lbs (907g)
- May be powered by 2S-3S LiPo, or 4-9 cell NiMH cells
- Alert tones for start fail, voltage cutoff, radio glitch, over-temperature, over-current and excessive load detections
- Adjustable for 5.5V-7.5V operation
- Link Live enables controller to communicate real-time telemetry data such as battery voltage, ESC temperature, motor power output and battery ripple (Requires purchase of Castle S.BUS2 Telemetry Link)
- Manual programming settings include Brake/Reverse Type, Voltage
- Cutoff, Brake Amount, Drag Brake, and motor type
- Updated circuitry and refined software for ultra-smooth starts
- 0808 4100kV Brushless Motor, CSEC3700
- Four pole sensorless brushless design
INCLUDES
- Sidewinder 2 Micro ESC
- Motor Leads with 3.5mm Bullet Connectors
- 0808 Inrunner 4100kV Brushless Motor
REQUIREMENTS
- High-current battery connector rated for at least 40A
SPECIFICATIONS
ESC;
- Input Voltage: 2S-3S LiPo, 4-9 cell NiMH
- BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
- Size: 0.87 x 1.5" (22 x 38mm)
- Weight: 0.92oz (26g) with wires
Motor;
- Motor Length: 1.5" (38mm)
- Motor Diameter: 0.79" (20mm)
- Shaft Diameter: 0.079" (2mm)
- Shaft Length: 0.47" (12mm)
- kV Rating: 4100
- Battery Compatibility: 4-9 cell NiMH or 2-3S LiPo
- Weight: 1.8oz (50g)
