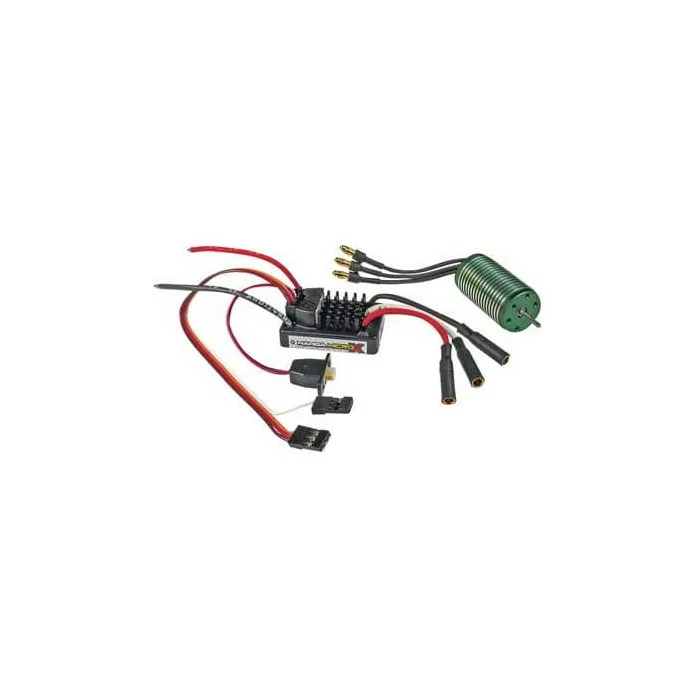

Castle Creations 1/18 Mamba Micro X WP ESC/5300kV Motor

This is the Castle Creations Mamba Micro X Waterproof Electronic Speed Control with the 0808-5300Kv Brushless Motor.

FEATURES

ESC:

• For 1/18 scale 2 or 4 wheel drive vehicles weighing up to 2.25lbs (1.02kg)
• Heavy-duty BEC (battery eliminator circuit) handles high-draw digital servos
• Adjustable settings include;
• Throttle Punch Control
• Braking Curve Reverse Type
• Drag Brake Motor Type
• Auto LiPo Cutoff
• Profiles can be custom designed on a PC with the Castle Link
• PC programming software (software not included, can be downloaded for free from Castle's website, voucher is included for free Castle Link Programmer)
• Programmable Auxiliary Wire (AUX) allows adjustments to several settings such as torque control and max throttle from a compatible transmitter

5300Kv Motor:

• Ideal for on and off road applications running up to 3S LiPos, and weighing up to 2.5lbs (1134g)
• 4 Pole brushless, sensorless design
• One year limited warranty on both components through Castle Creations beginning at date of purchase

INCLUDES

• Mamba Micro ESC
• 0808 5300Kv Motor with 3.5mm Female Bullet Connectors
• Motor Leads with 3.5mm Male Bullet Connectors
• Pretinned Battery Leads (require connector to mate w/selected battery, 4mm Castle Creations connectors recommended)
• On/Off Switch
• Receiver Connector
• Instruction Booklet
• Voucher for free Castle Link Programmer

REQUIREMENTS

• Compatible LiPo Battery, recommended battery capacity for 1/18 scale vehicles is 1500mAh, 30C or higher continuous discharge
• Pinion and spur gear depending on application

SPECIFICATIONS

ESC;

• Input Voltage Range: Min. 2S LiPo, Max. 3S, 12.6V
• BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
• Brake: Proportional
• Reversible: Yes, with lockout
• On/Off Switch: Waterproof
• Dimensions: 1.61 x 0.75 x 1.10" (41 x 19 x 28mm)
• Weight: 1.20oz (34.01g) without connector

Motor;

• Maximum Input Voltage: 3S LiPo
• Maximum Operating Temperature: 180°F (82°C)
• Motor Size: 1.5 x .79" (38 x 20mm)
• Shaft Diameter: .08" (2mm)
• Weight: 1.8oz (50g)
• Mounting Hole: 1/2" 14mm, 5/8"
• Connectors: 3.5mm gold female

NOTE

Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
