Model number: CSE010-0123-00
Product Details
Cars: Traxxas Rustler, Traxxas Slash, Traxxas Stampede
Use: Upgrade
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
More info

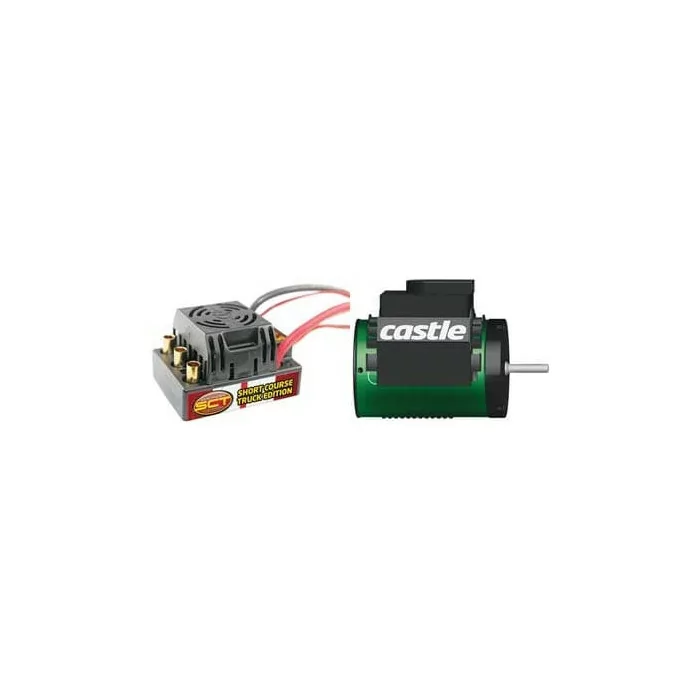

This is the Sidewinder SCT ESC and 3800kV Motor Combo from Castle Creations.
FEATURES
- Ideal for 2WD or 4WD short course racing or backyard bashing
- Neu-Castle 4 pole 1410 1Y motor has 50% more torque than Castle's CM36 series
- Sidewinder SCT has 40% greater power handling than previous
- Sidewinder 1/10 scale ESC
- Castle Link compatible (Field Link Portable Programmer Car Card (CSEM6300) required, not included)
- Proportional brake with reverse lockout
- Waterproof*
INCLUDES
- Castle Creations Sidewinder SCT ESC
- 4mm Bullet Motor Connectors and Neu-Castle 4 pole 1410 1Y Brushless Motor
- Instructions
REQUIREMENTS
Battery connector of modeler's choice
SPECIFICATIONS
ESC
- Input Voltage: Maximum 2S LiPo
- Brake: Proportional
- Reversible: Yes, with lockout
- Width: 1.48" (37.5mm)
- Length: 1.93" (49mm)
- Height: 1.18" (30mm)
- Weight: 2.29oz (65g) without battery connector
Motor:
- Pole Count: 4
- Stator Lamination Thickness: 0.0078" .2mm
- Bearings: CNC rated Japanese bearings
- Dimensions: 1.4 x 2.1" (36 x 53mm)
- Shaft Diameter: 1/8" (3.2mm)
NOTE
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Maximum recommended vehicle weight is 6.5lbs (2.95kg)
