1/10 SV3 Sidewinder Waterproof 12V ESC/4600 ComboView larger

Castle Creations 1/10 SV3 Sidewinder WP 4600kV System

CSE010-0115-01

Castle Creations

This product is no longer in stock

Your price: $119.99

Overall rating
Quality
Fun
Value
CarsTraxxas Stampede, Traxxas Rustler, Traxxas Slash
UseUpgrade

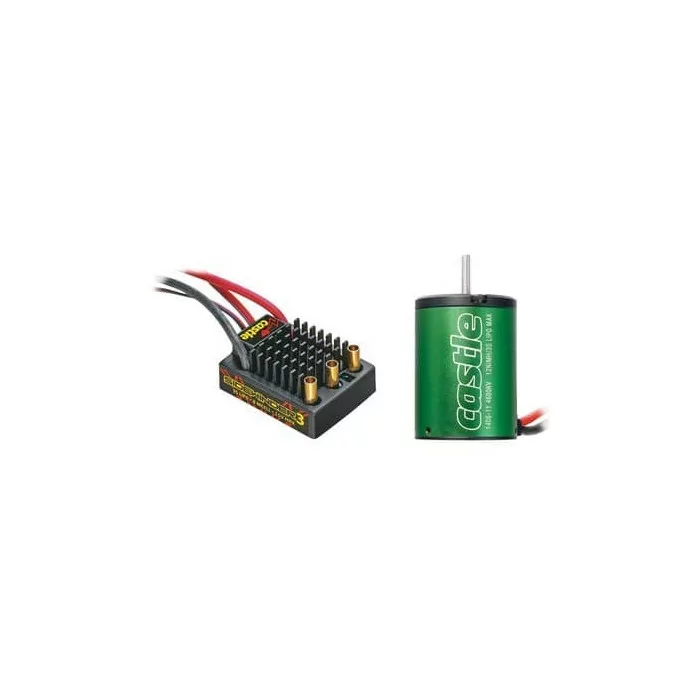

This is the Castle Creations Sidewinder SV3 12V Electronic Speed Control and the 1406 Series 4600kV Sensorless Brushless Motor.

FEATURES

  • SV3 12V ESC (CSEM0115)
  • Recommended for all 1/10 scale buggy and truggy applications that weigh less than 5lbs (2.25kg) ready to run (not for use in heavier vehicles such as E-Revos or E-Maxx class vehicles)
  • USB programming capability via Castle Link USB adapter (not included, order CSEM6300)
  • Waterproof for use in nearly every environment (not intended for operation while submerged in liquid)
  • Reversible with reverse lockout 1406 Series 4600kV Motor (CSEC0000)
  • 540 size can replaces many stock brushed motors
  • Four magnet, four pole rotor for greater torque
  • 1.4" diameter slotted stator
  • Removable end bell

INCLUDES

  • Sidewinder SV3 12V ESC with 13 gauge Battery Wires with Pre-Tinned Leads
  • 4mm Female Bullets for Motor Connection
  • Receiver Connector
  • On/Off Switch
  • Instructions
  • 4600kV 1406 series Brushless Motor with 4mm Male Bullet Connectors

REQUIREMENTS

Battery connector of modeler's choice

SPECIFICATIONS

ESC;

  • Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
  • Brake: Proportional
  • Reversible: Yes, with lockout
  • Dimensions: 1.93 x 1.48 x 0.79" (49 x 38 x 20mm)
  • Weight: 1.96 oz (55.5 g) with 5" (127mm) long battery wires and no battery connector

Motor;

  • kV Rating: 4600
  • Can Length: 1.9" (49mm)
  • Can Diameter: 1.4" (36mm)
  • Shaft Diameter: 1/8" (3.2mm)
  • Weight: 5.9 oz (169.5 g)
  • Connector: 4mm gold
  • Wire Length: 9.5" (241mm)
