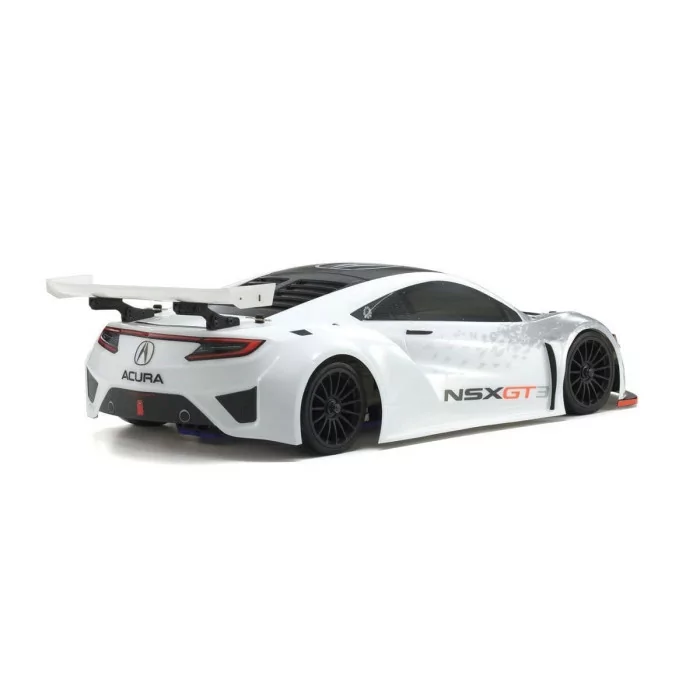

Kyosho FW06 Acura NSX GT3

Enjoy a wide range from parking lots to race circuits.

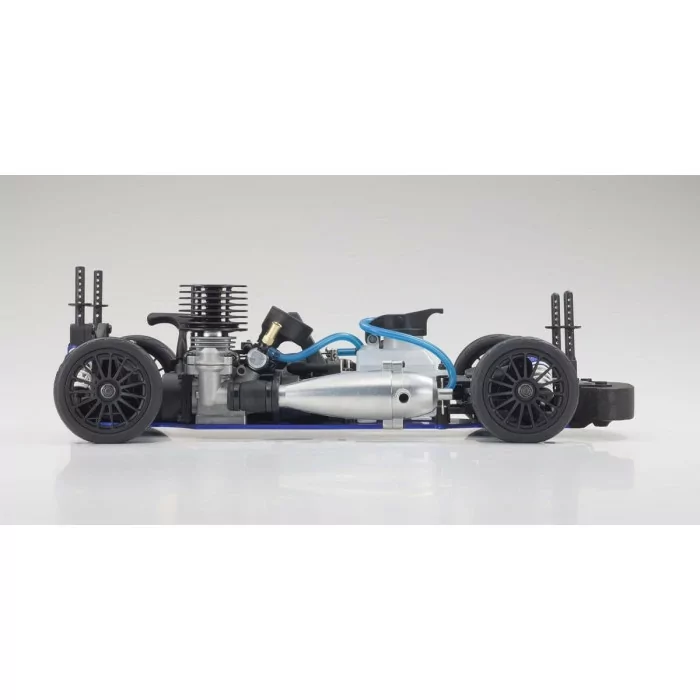

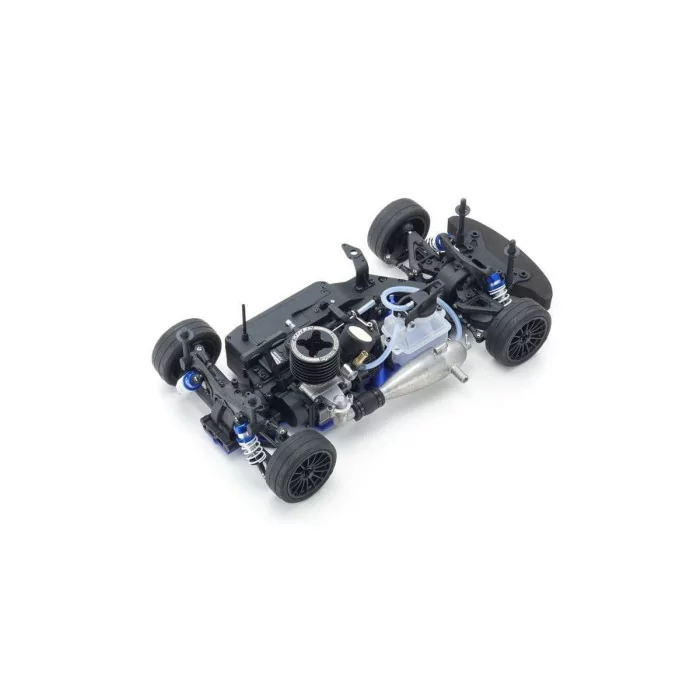

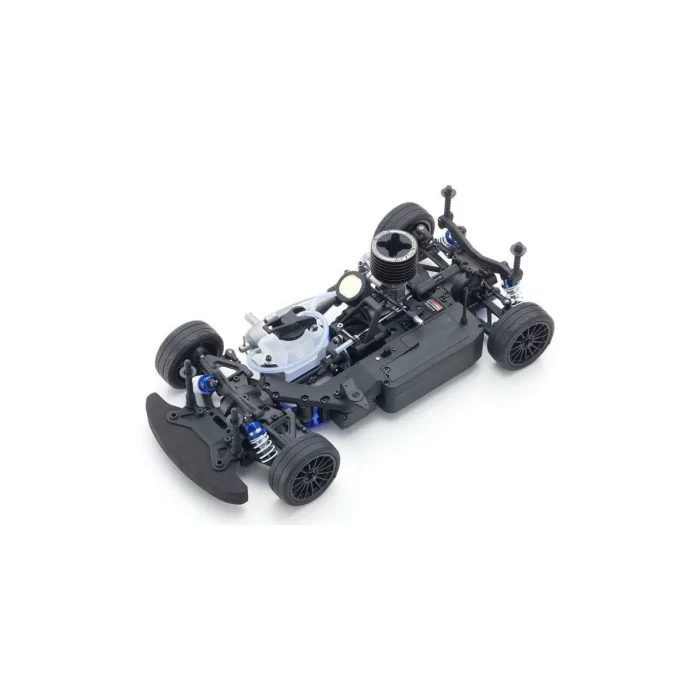

Proven shaft-driven 4WD chassis with newly developed engine!

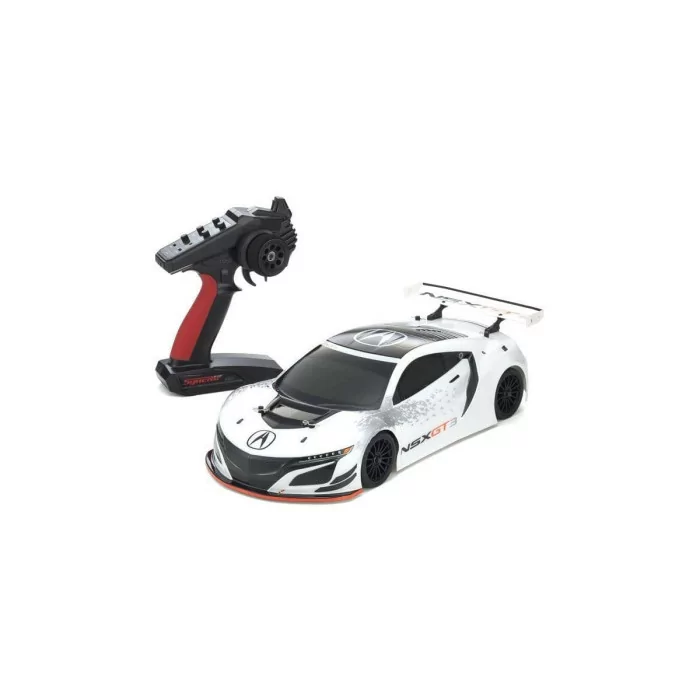

User-friendly with mild control response, the FW-06 is the perfect introduction to GP touring cars and the performance of this amazing machine seems to evolve as your driving technique improves. 2-speed automatic transmission combines with the high-power newly developed KE15SP engine to make full use of the power band and maximize performance from KYOSHO's proven shaft-driven 4WD chassis. With the same rear suspension as the World Champion V-ONE RRR with setting options and maintenance-friendly features only available on the latest racing machines, the FW-06 chassis also meets the demands of expert-level drivers. All this performance is packed into a fully-assembled Readyset. Equipped with the 2.4GHz Syncro KT-231P transmitter, finding an open frequency is a problem of the past. In addition to the dual-rate function, the KT-231P also features a failsafe function that automatically reduces the throttle if radio signal is interrupted. Simply switch the power on and you can be on the track and clocking race-winning times straight away.

• Loaded with KE15SP engine with slide carburetor fitted with slow idle adjustment.
• Reliable universal swing shafts included on front.
• Turnbuckle tie-rods used for steering rod and rear upper arms for fully adjustable alignment.
• KYOSHO's proven center-shaft drive 4WD provides light control response.
• Disk brakes deliver reliable and responsive braking control.
• Unique compact recoil starter realizes lower resistance and starts the engine with a pull on the starter cord.
• Equipped with a total of 22 ball bearings for highly-efficient, full-bearing specification.
• Fitted with tuned muffler.
• High-grip rubber tires with inner sponge supports are pre-glued onto wheels.
• Compatible with many FW-05 parts. *Not compatible with some parts.

TECHNICAL DATA

• Length 372mm
• Width 200mm
• Height 100mm (approx.)
• Ground Clearance 5mm
• Wheelbase 258mm
• Tread (F/R) 176mm
• Tire(F/R) φ66×25mm
• Gear Ratio 7.47 / 5.44:1
• Weight 1,800g (approx.)
• Engine KE15SP with recoil starter

REQUIREMENT TO RUN

• 4 x AA sized alkaline batteries for transmitter/4 x AA sized alkaline batteries for receiver.
• Fuel
• Fuel bottle
• Plug heater

KIT CONTENT

• Fully-assembled chassis complete with pre-set control linkages
• Pre-mounted KE15SP engine with recoil starter
• Special manifold and muffler
• Finished pre-cut body complete with paint and stickers applied
• Syncro KT-231P+ transmitter
• 1.5mm/2mm/2.5mm/5mm Hex wrench
• Cross wrench
