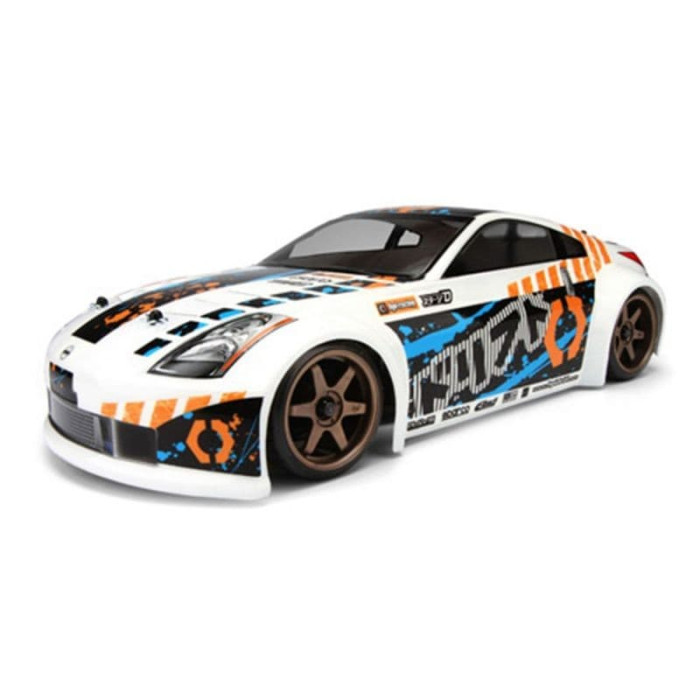

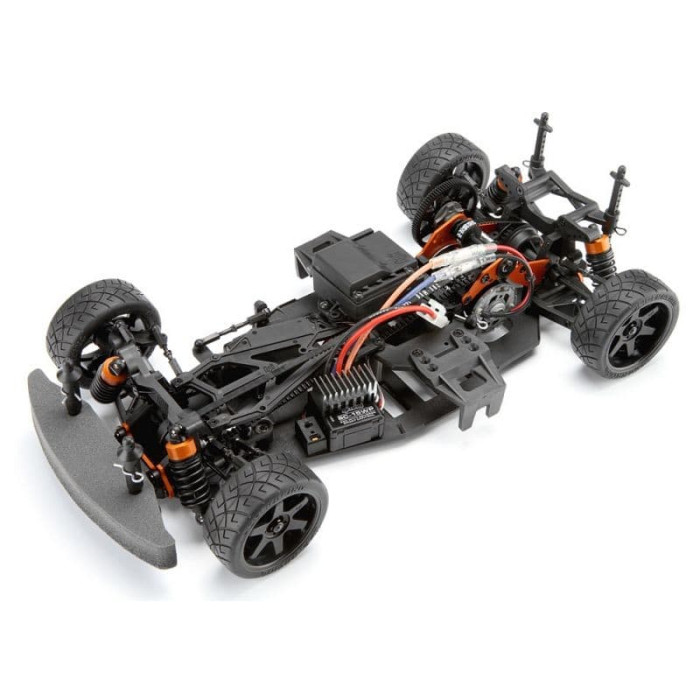

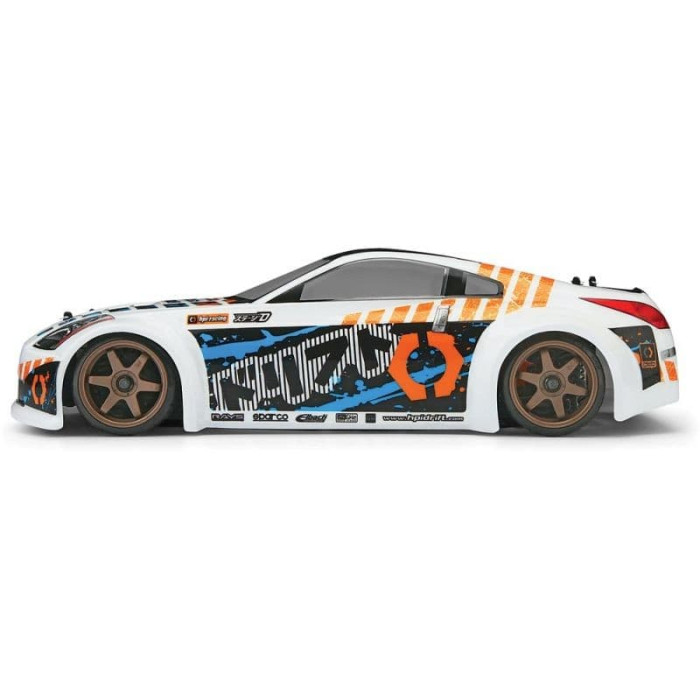

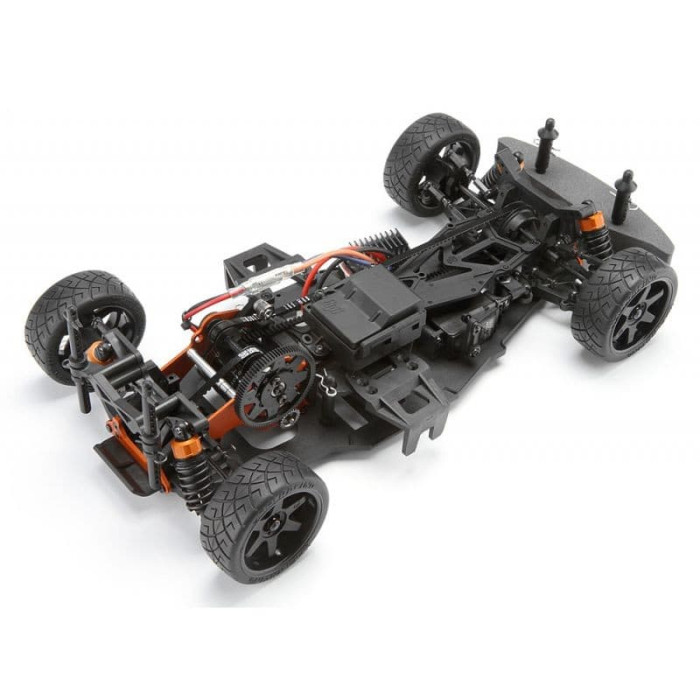

HPI Racing 1/10 Sprint 2 Drift Nissan 350Z RTR

This is the plastic model car 1/10 scale, electric powered, radio controlled, ready-to-run HPI On-Road Sprint 2 Drift Car with the Nissan 350Z Body.

FEATURES

• Chassis: 3/16" (4mm) plastic
• Drive: Four wheel belt drive
• Motor: 15 turn Firebolt, brushed
• Radio: 2.4GHz with waterproof steering servo and waterproof receiver box
• Electronic Speed Control: HPI SC-15WP LiPo compatible, waterproof and reversible
• Battery: 7.2V NiMH 2000mAh
• Battery Charger: AC wall type
• Ball Bearings: Full set included
• Shocks: Oil-filled, plastic bodied, with special springs for drifting
• Differentials: Planetary gear
• Transmission: Single speed
• Tires: Falken Azenis hard compound drift type X-pattern, 1" (26mm) wide, 2.5" (65mm) outer diameter
• Wheels: Officially licensed TE37 Rays/Volk design 5-spoke brown on color, outer diameter 1.9" (48mm), width 1" (26mm), 3mm offset in front and 6mm offset in rear for wide look seen on full-size drift cars
• Pinion Gear: 48 pitch steel
• Spur Gear: 48 pitch, 87 tooth, composite construction
• Body: Painted and trimmed Nissan 350Z
• Bumpers: Front, foam
• Suspension: Fully adjustable
• Ackerman: Adjustable, Ackerman describes the effect of the inner front wheel turning faster than the outer front wheel during turns
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Steering: Bell-crank type with servo saver

INCLUDES

• HPI On-Road Sprint 2 Drift Car with the Nissan 350Z Body
• motor
• electronic speed control
• clear body
• tires
• foam inserts
• wheels
• 2000mAh battery
• wall charger
• 4 AA radio batteries
• pinion gear
• 87 tooth spur gear
• 2.4GHz radio
• servo
• two decal sheets
• instructions

REQUIREMENTS

• Misc. Items: Building and track equipment

SPECIFICATIONS

VEHICLE

• Length: 17" (431mm)
• Width: 7.5" (190mm) - 8.0" (190mm) adjustable using offset wheels
• Height: 5" (127mm)
• Wheelbase: 10" (255mm)
• Front Track: 7.38" (187.5mm) side to side at outer edges of wheel
• Rear Track: 7.7" (194mm)
• Front Tread: 6.5" (166mm)
• Rear Tread: 6.8" (173.5mm) side-to-side at wheel centers
• Ground Clearance: 0.31" (8mm)

BODY

• Length: 16.5" (419mm)
• Width: 7.9" (200mm)
• Height: 5" (127mm)

COMMENTS

For Replacement Ball Bearings use:

• Qty. Size Location Qty. Bearing Set
• 4 5x10mm Fr Wheels 2  DTXC1535
• 4 5x10mm Rear Wheels 2  DTXC1535
• 2 10x15mm Fr Diff 1  DTXC1595
• 2 10x15mm Rear Diff 1  DTXC1595
• 2 4x8mm Servo Saver 1  DTXC1511
• 2 4x8mm Middle Lay Shaft 1  DTXC1511
