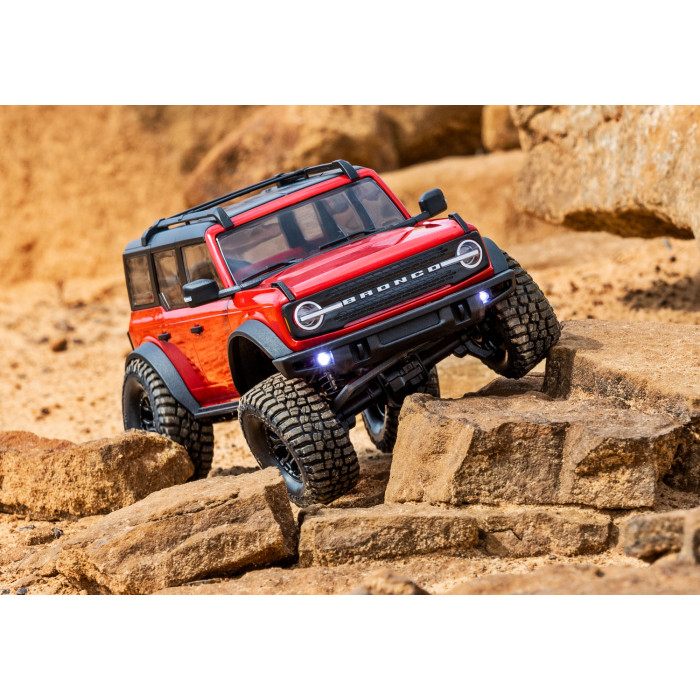

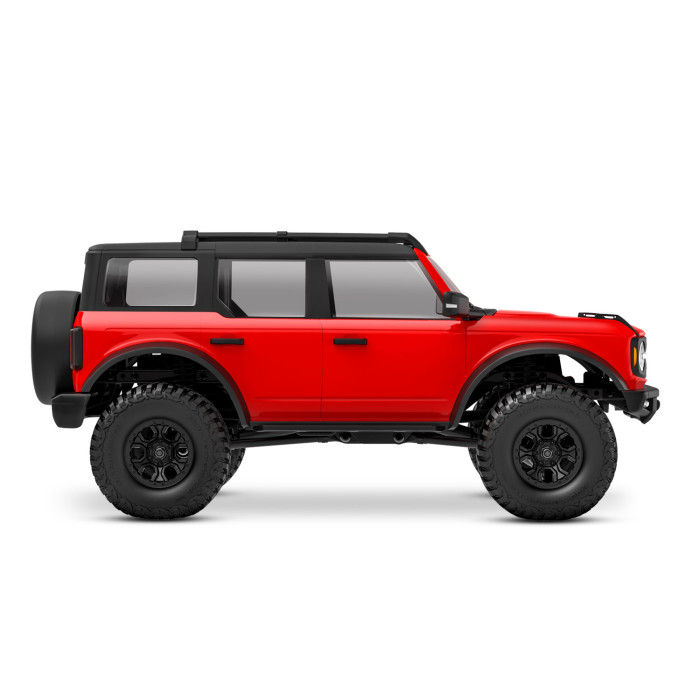

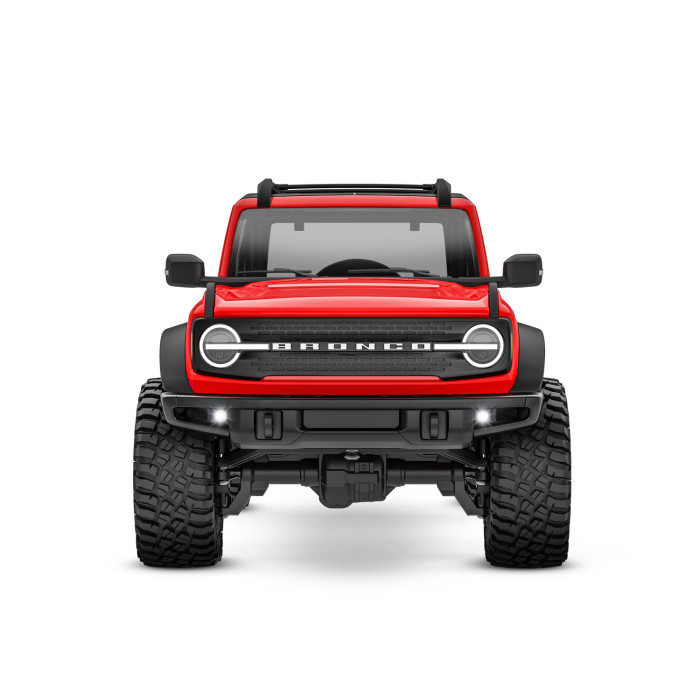

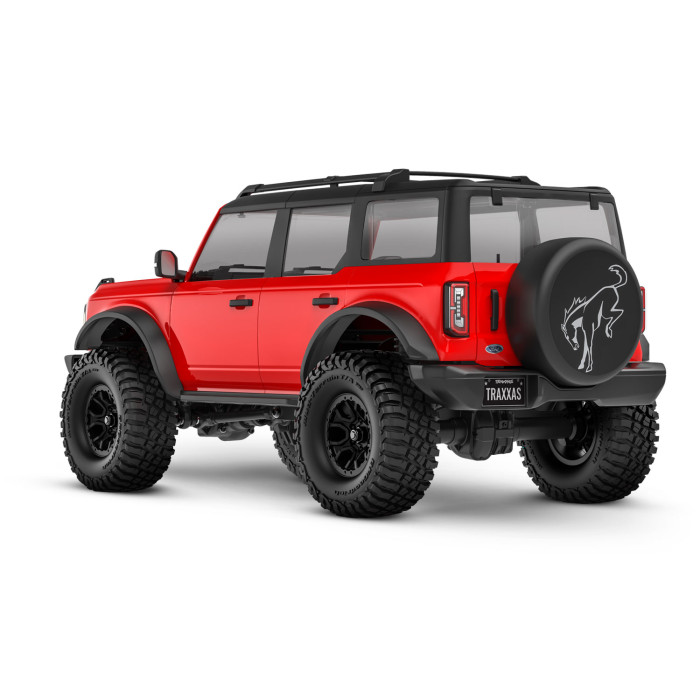

Traxxas TRX-4M Ford Bronco RTR 1/18 Crawler (Red)

Traxxas TRX-4M Ford Bronco brings scale Ford Bronco styling to a compact 1/18 RTR crawler that’s ready for trails right out of the box. Waterproof electronics, a realistic ABS clipless body, and the included battery and USB charger make this a simple choice for beginners and experienced drivers who want a small, capable trail rig.

Key Features

• Official Ford Bronco clipless body — highly detailed ABS hard shell that captures the Bronco look without needing paint.
• Molded-in color that resists chipping and flaking for low-maintenance scale appearance.
• Tough fender flares and rock sliders protect the body during hard trail use.
• Realistic side mirrors, door handles, and wipers add scale detail for better photos and show runs.
• LED bumper lights deliver usable forward illumination for dusk runs and adds scale realism.
• Heavy-duty latching clips hold the body securely on rough terrain and release quickly when you need access.
• ECM-2.5 Electronic Control Module combines speed control, receiver, and LED control in one compact chassis unit.
• Fully waterproof electronics let you drive in wet conditions without worry.
• Three drive profiles: Sport (forward/brake/reverse), Trail (forward/brake/reverse with trail-tuned drag brake in neutral), and Crawl (forward/instant reverse with 100% hill-holding brake).
• EZ-Set one-button setup gets the system configured quickly.
• Built-in Pro Scale LED functionality for easy lighting control.
• Two-stage low-voltage protection and motor overload protection for safer operation and longer component life.
• TQ 2.4 GHz transmitter — full-size 2-channel radio designed for comfortable, precise long-range control.
• Titan 180 87-turn brushed motor — tuned for crawling with a fixed gear mesh that doesn’t require adjustment and a forward mounting position that improves crawling balance.
• Heavy-duty steel ladder frame — deep C-channel rails with a thicker center section for strong chassis stiffness from bumper to bumper.
• Driveline — full-time shaft-driven 4WD with solid steel axles, spool-equipped front and rear axles, and reinforced CV center driveshafts for dependable power delivery.
• Low-CG battery tray concentrates weight low for better stability and uses a wide rubber strap to keep the battery secure.
• Optional transmission ratios (sold separately) let you swap in Low Range or Speed Gearing in minutes thanks to a modular transmission design.
• Steering — 2065T steering servo with a metal main gear, a superior 45° steering angle, and direct steering for responsive input.
• Triangulated 4-link front and rear suspension with reinforced rod ends for controlled articulation.
• Oil-filled GTM shocks provide smooth, controlled damping and realistic body movement; shocks include adjustable preload spacers and can be refreshed with rebuild kits.
• 2065T steering servo (spec reference) with a 7 mm hex interface on the wheels.
• Replica BF-Goodrich Mud Terrain T/A KM3 tires in a trail-tuned rubber compound for traction on loose dirt, rock, and mud.
• Battery and charger included — high-capacity 2-cell LiPo battery with iD technology and a USB-powered 2-amp charger for convenient recharging.
• Low-maintenance self-lubricating bushings reduce routine upkeep.
• Durable hex hardware throughout for reliable assembly and serviceability.

Technical Specifications

• Model Name: TRX-4M Ford Bronco
• Type: Trail / Crawler
• Skill Level: 1 (beginner-friendly)
• Scale: 1/18
• Weight: 1.03 pounds (468 g)
• Length: 10.3 in (262 mm)
• Width: 4.9 in (124 mm)
• Front Track: 4.9 in (124 mm)
• Rear Track: 4.9 in (124 mm)
• Height: 4.6 in (117 mm)
• Wheelbase: 6.1 in (155 mm)
• Center Ground Clearance: 1.12 in (29 mm)
• Driveline: Shaft-driven 4WD
• Transmission: Single speed direct drive
• Differential Type: Locked spool
• Gear Ratio (Internal): 11.38
• Gear Pitch: 64 pitch
• Steering Servo: 2065T
• Radio System: TQ 2.4 GHz 2-channel transmitter
• Battery Compartment: 51 mm L x 31 mm W
• Motor: Titan 180, 87-turn brushed (1.16 oz / 33 g; 1.66 in / 42 mm length; .81 in / 21 mm diameter)
• ESC: ECM 2.5 (brushed) — case size 1.79 x 1.26 x 0.6 in (45 x 32 x 15 mm), weight 0.92 oz (26 g)

What's Included

• TRX-4M Ford Bronco 1/18 RTR vehicle (Red body)
• TQ 2.4 GHz 2-channel transmitter
• High-capacity 2-cell LiPo battery with iD technology (7.4 volts, 750 mAh)
• 2-amp USB-powered charger
• Spare hex hardware and preinstalled components as shown

Why Choose This Model

The Traxxas TRX-4M Ford Bronco is ideal if you want a small, scale-looking crawler that’s ready to drive and easy to maintain. It’s beginner-friendly but has the rugged frame, sealed electronics, and upgrade paths that keep experienced trail drivers coming back.
