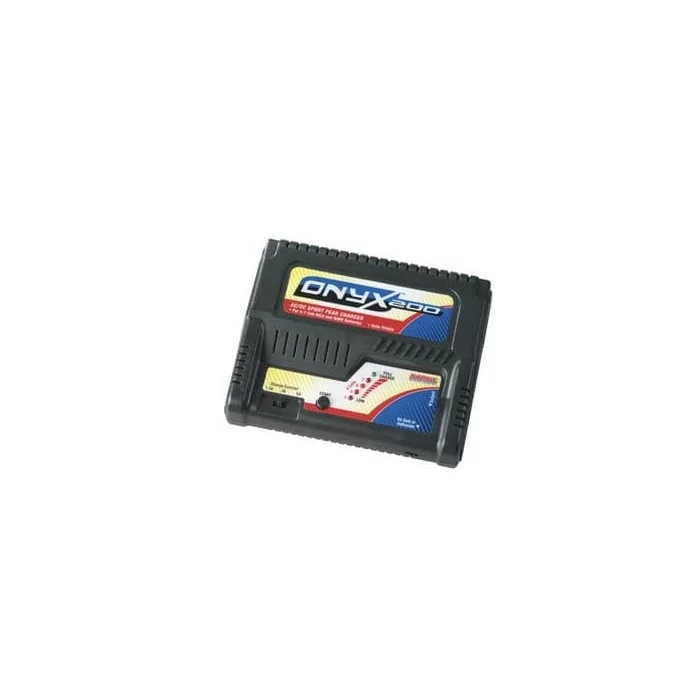

Duratrax Onyx 200 AC/DC Peak Charger

This is the DuraTrax Onyx 200 AC/DC Sport Peak Charger with LEDs.
Designed for sport electric car or boat modelers that use NiCd or NiMH batteries.

FEATURES

• Charges 4-7 cell NiCd or NiMH (4.8 - 8.4V) cells with a capacity range of 750 - 7500mAh
• Compatible with AAA size cells up to the highest capacity sub-C cells as well as 4-5 cell nitro receiver packs
• AC and DC input capabilities make it perfect for indoor or outdoor use
• Pushbutton control and five LED indicators (4 Red, 1 Green), audible tones and built-in leads for simplicity and convenience
• Precise peak detection algorithm with automatic TRICKLE charge fills packs completely for optimum voltage and run time
• Built-in jack included for charging 4 or 5 cell NiCd or NiMH receiver batteries for nitro models, or for monitoring charge voltage of battery connected to the main output with a separate digital voltmeter
• Audible tones and multiple LEDs for simple setup and use
• Lightweight switching AC power supply delivers up to 5 amps of charge current
• Solid state reverse polarity and current overload safety devices ensure trouble-free operation and long duration
• FIVE YEAR warranty (U.S.A. and Canada only)

INCLUDES

• DuraTrax Onyx 200 AC/DC Sport Peak Charger, DC power lead with alligator clips

SPECIFICATIONS

• AC Input: 110V AC 60Hz
• DC Input: 11-15V DC, built-in lead with alligator clips
• Battery Types: 4-7 NiCd or NiMH cells (4.8-8.4V)
• Battery Capacity Range: 750-7500mAh
• Fast Charge Current: 1.5A, 3.0A, 5.0A linear (40W max.)
• Fast Charge Termination: Peak detection
• Fast Charge Safety Timer: 90 minutes
• Peak Sensitivity: 8mV
• Auto TRICKLE Current: 1/20 fast charge setting
• Controls: Pushbutton, slide switch
• LED Indicators: 4 Red, 1 Green
• Audible Indicator: Indicate start, stop, errors

*Output Connections:

Built-in lead with Kyosho type connector
Built-in jack for charging 4 or 5 cell Rx packs
*Standard to Deans Ultra Male Adapter available separately (GPMM3131)
*Standard to Vendetta, MiniQuake, RS4 Battery available separately (DTXC2210)

• Protective Devices: Solid-state reverse polarity and current overload
• Case Size: 5.74 x 4.60 x 1.61" (146 x 117 x 41mm)
• Weight: 17oz (484g)
