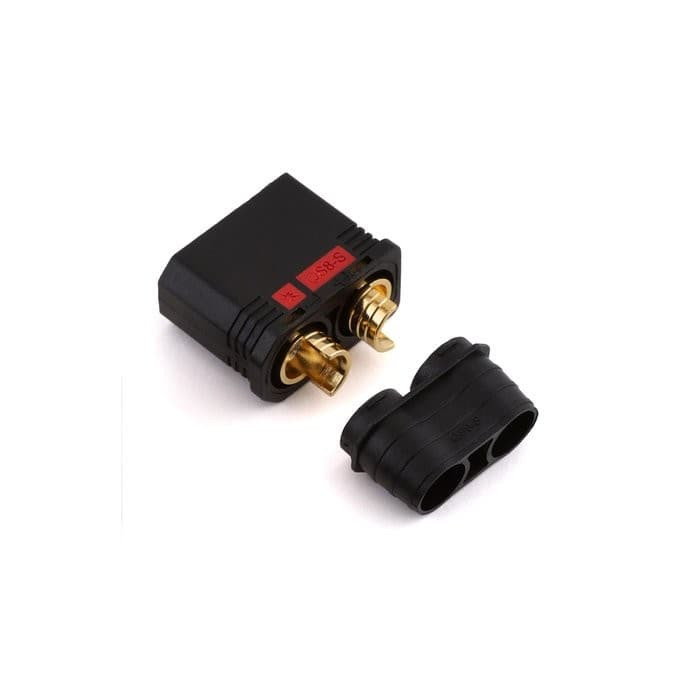

ProTek RC QS8 Anit Spark Connector MaleView larger

ProTek RC QS8 Anit Spark Connector Male

PTK-5071

ProTek

Your price: $7.99

ProTek RC QS8 Anti-Spark Connectors are a high quality, high current connector that is perfect for high voltage applications. Not only is the connector capable of handling spikes in excess of 300 amps, the design provides an anti-spark connection that eliminates the dreaded POP when you plug in the battery helping to extend the life of the connector. High voltage bashers, speed run enthusiasts and pilots of all disciplines can benefit from this advanced connector technology.

The QS8 connector features 8mm bullets that can accommodate wire up to 6awg, inside a heavy duty nylon/fiber composite housing. Plus, an included plastic wire cap covers the soldered connection and eliminates the need for heat shrink to create an incredibly clean installation that works well, looks great and is easy to manage.

NOTE: T-style connector shown in photos is for size reference only, and is not included.

Features:

  • Anti-Spark Technology Increases Lifespan of Connector
  • 110A Constant/300A Peak Current Rating
  • 8.0mm Gold Plated Brass Bullet
  • Great for all High Voltage Applications
  • Nylon/Fiber Composite Housing
  • Package Includes One Male Connector & Wire Cap

Specifications:

  • Connector Diameter: 8.00mm
  • Metal Material: Gold Plated Brass
  • Plastic Material: Fiber Nylon
  • Flame retardant rating: UL94 V2
  • Temperature Range: -20C to +100C
  • Rated Voltage: 600V DC
  • Continuous Current: 110A
  • Peak Current: 300A
  • Weight: 20g ea (40g Male+Female Set)
  • Length: 35.9mm w/end cap
  • Width: 29.5mm
  • Total Length When Connected: Approx 70mm (Male & Female w/End Cap)
  • Max Wire Gauge: 6awg

Includes:

  • (1) QS8 Male Anti-Spark Connector
  • (1) Wire Cap
