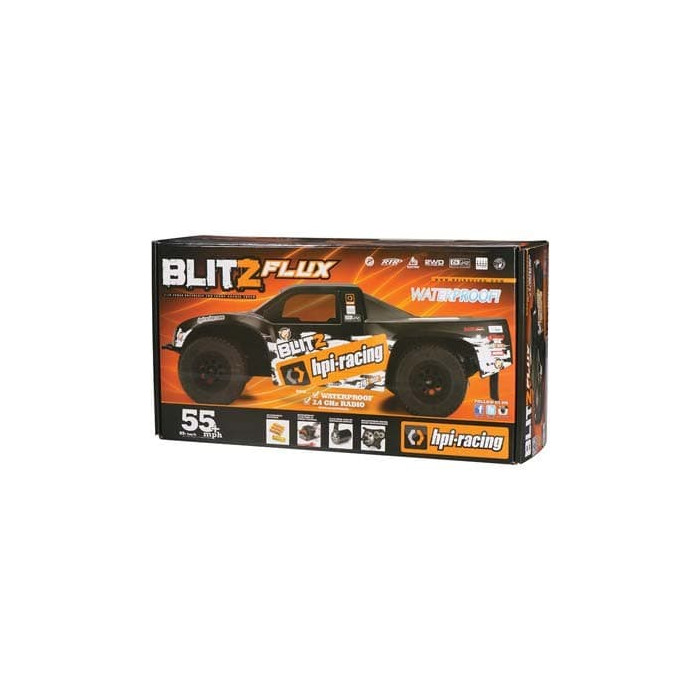

HPI Racing 1/10 Blitz Flux Brushless RTR

This is the 2.4GHz radio controlled, electric powered, ready to run, 1/10 scale HPI Blitz Flux Short Course Truck.

FEATURES

• Chassis: Molded composite construction with pivoting skid plates
• Drive: Rear wheel

• Motor: 4000kV brushless, 3S capable

• Radio: 2-channel 2.4GHz pistol grip

• Steering servo: SF-20W Servo (waterproof, high torque) (HPIM4109)

• Electronic Speed Control: Waterproof HPI Flux EMH-3S (HPIM2851) 80A constant current, 540A burst current

• Transmission: All metal gears

• Body: Precut and painted Skorpion, with enhancements to aid in handling and feeling of the truck both on the ground and while airborne

• Tires: Megabite, pink extra soft compound 4.25" (108mm) diameter, 1.53" (39mm) wide

• Wheels: MK8 V2 matte finish 4.5mm offset, black in color, 3" (76mm) diameter, 1.6" (40.5mm) wide, 12mm hex

• Bumpers: Front and rear high impact nylon plastic, rubber mud flaps on rear bumpers

• Shocks: Composite body, oil-filled

• Suspension: Captured hinge pin design for easy maintenance and smooth operation

• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis

• Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle

• Pinion/Spur: 18/88 (48P)

• Warranty: 2-year limited through manufacturer, valid only in USA, Canada and South America

INCLUDES

• RTR HPI Blitz Flux Short Course Truck with 2.4GHz Radio
• ESC
• Brushless Motor
• Skorpion Body
• 4 AA Batteries
• Instructions

REQUIREMENTS

• Battery: 3S LiPo stick pack with Star connector

• Battery Charger: Compatible with selected battery Track equipment


SPECIFICATIONS

Vehicle

• Length: 21.6" (548mm)
• Width: 11.6" (296mm)
• Height: 7.2 - 7.9" (184 - 200mm) adjustable
• Wheelbase: 12.9" (329mm) adjustable

Body

• Length: 21.3"" (540mm)
• Width: 10.8" (275mm)
• Height: 6" (155mm)

COMMENTS
For Replacement Ball Bearings use:

• Qty. Size Location Qty Bearing Set
• 4 5x10mm Fr Hubs 2 DTXC1535
• 4 5x10mm Rear Hubs 2 DTXC1535
• 2 10x15mm Drive Gear Assembly 1 DTXC1595
• 4 5x10mm Gear Box 2 DTXC1535
