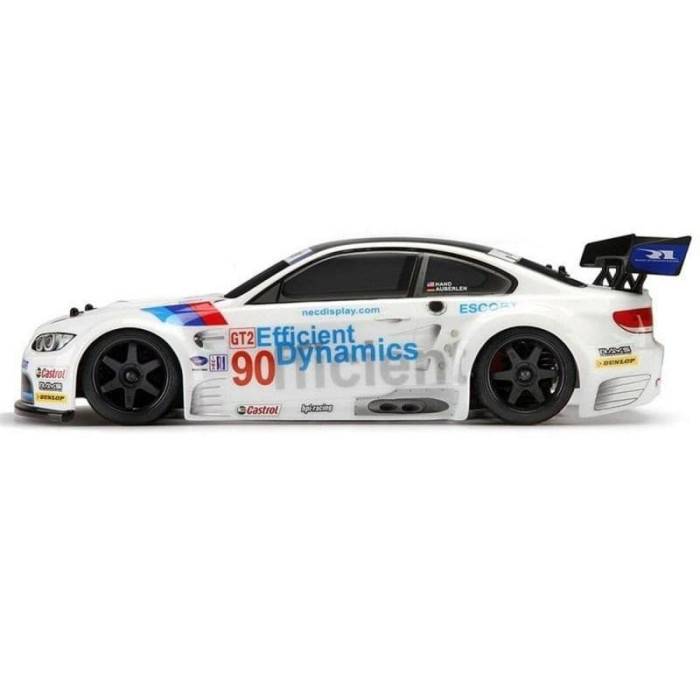

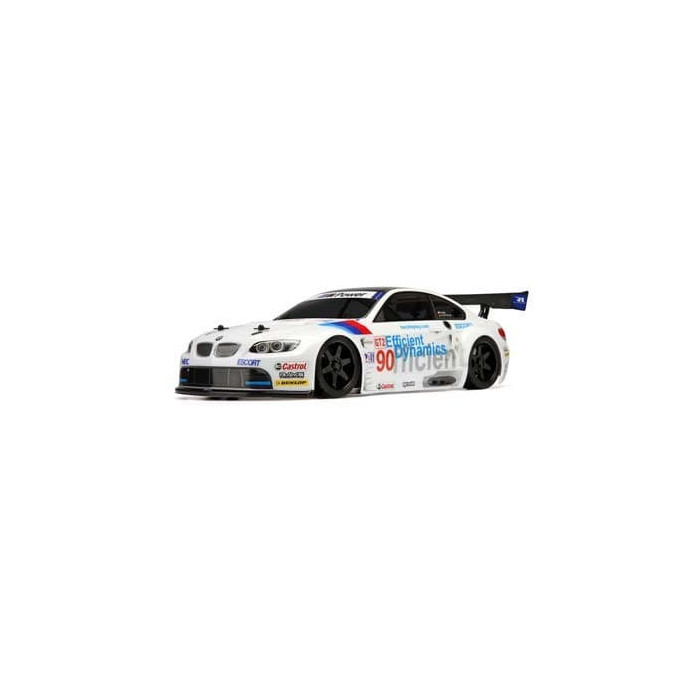

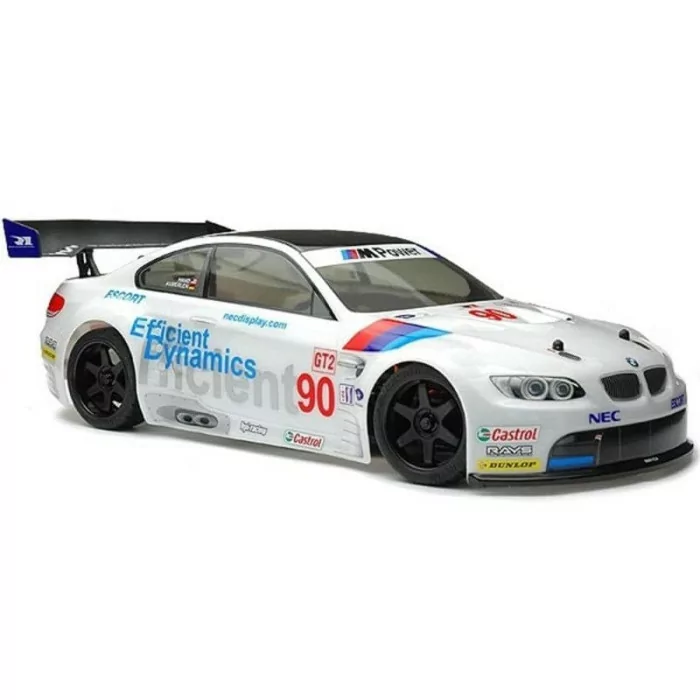

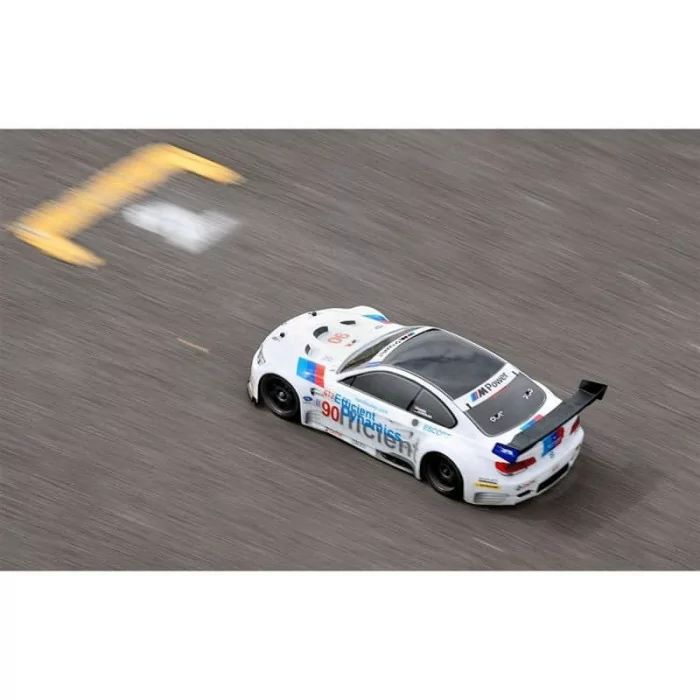

HPI Racing 1/10 Sprint 2 Flux BMW M3 GT-2 RTR

This is the 1/10 scale, brushless electric powered, 2.4GHz radio controlled, RTR HPI On-Road Sprint 2 Flux Touring Car with the BMW M3 GT-2 Body.

FEATURES

• Chassis: 3/16" (4mm) plastic
• Drive: Four wheel belt drive
• Motor: HPI Flux Vektor 5900kV brushless (not 3S LiPo compatible)
• Radio: 2-channel 2.4GHz, SF-10W waterproof steering servo and four AA transmitter batteries
• Electronic Speed Control: Waterproof HPI Flux Vapor, LiPo compatible and fully prgrammable with the USB Programming Kit (not included, order HPIC0573)
• Ball Bearings: Full set, rubber sealed
• Shocks: Oil-filled, plastic bodied
• Differentials: Planetary gear, sealed
• Transmission: Single speed with Flux optimized gearing
• Tires: HPI X-Pattern Racing Tire 1.02" (26mm) width, 1.9 (49mm) diameter Rear, 1.2" (31mm) width, 1.9" (48mm) diameter
• Wheels: Rays Volk TE37 six spoke black 1.9" (48mm) diameter, 1.02" (26mm) wide
• Pinion Gear: Steel 48 pitch
• Spur Gear: 48 pitch, composite construction
• Body: Polycarbonate painted and trimmed with body trim and light details and clear plastic windows, matte black finish rear wing
• Bumpers: Front, foam
• Suspension: Fully adjustable, extra long upper links with new multiple mounting positions, and adjustable droop
• Ackerman: Adjustable, Ackerman describes the effect of the inner front wheel turning faster than the outer front wheel during turns
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Steering: Bearing supported bell-crank type with servo saver

INCLUDES

• HPI On-Road Sprint 2 Touring Car with the BMW M3 GT-2 Body
• Flux Vapor ESC
• Flux Vektor 5900kV brushless motor
• body
• wing
• 4 AA TX batteries
• 2.4GHz radio w/waterproof steering servo
• decal sheet
• instruction manual

REQUIREMENTS

• Battery: 7.2V NiMH stick pack with Dean's connector
• Battery Charger: To match selected battery
• Misc. Items: Building and track equipment

SPECIFICATIONS

VEHICLE

• Length: 17" (431mm)
• Width: 7.5" (190mm)
• Height: 5" (127mm)
• Weight: 2.7lbs (1245g)
• Wheelbase: 10" (254mm)
• Front Track: 7.4" (187mm)
• Rear Track: 7.7" (196mm) side to side at outer edges of wheel
• Front Tread: 6.3" (160mm)
• Rear Tread: 6.6" (169mm) side-to-side at wheel centers
• Ground Clearance: 0.35" (9mm)

BODY

• Length: 17.4" (442mm)
• Width: 7.5" (190mm)
• Height: 4.6" (117mm)

COMMENTS

• For Replacement Ball Bearings use:
• Qty. Size Location Qty. Bearing Set
• 4 5x10mm Fr Wheels 2  DTXC1535
• 4 5x10mm Rear Wheels 2  DTXC1535
• 2 5x8mm Fr Diff 1  DTXC1523
• 2 5x8mm Rear Diff 1  DTXC1523
• 2 10x15mm Fr Diff 1  DTXC1595
• 2 10x15mm Rear Diff 1  DTXC1595
• 1 4x8mm Spur Gear Mount 1  DTXC1511
• 2 4x8mm Servo Saver 1  DTXC1511
• 2 4x8mm Middle Lay Shaft 1  DTXC1511

Body pictured on the box is painted white with all body trim and sponsor decals applied.
