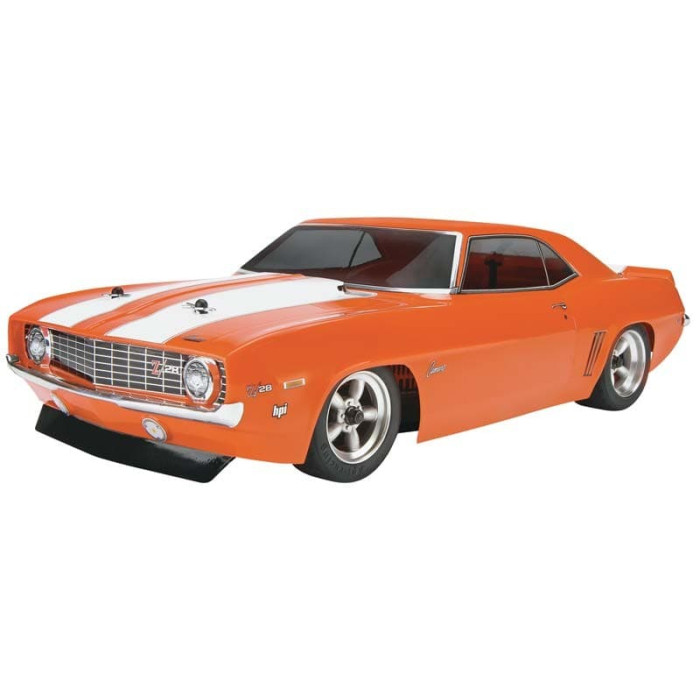

HPI Racing 1/10 Sprint 2 Sport '69 Camaro RTR

This is the 1/10 scale, electric powered, 2.4GHz radio controlled, RTR HPI On-Road Sprint 2 Sport with the 1969 Chevy Camaro Z/28 Body.

FEATURES

• Chassis: 3/16" (4mm) thick plastic
• Drive: Four wheel belt drive
• Motor: 15 turn Firebolt, aluminum motor mount
• Radio: 2-channel 2.4GHz with SF-10W waterproof steering servo, and four AA transmitter batteries
• Electronic Speed Control: SC-15WP waterproof and LiPo capable
• Battery: HPI 7.2V Plazma NiMH 6-cell 2000mAh stick pack, chassis also accepts saddle packs or 2S LiPo packs
• Battery Charger: Wall type
• Ball Bearings: Full set included
• Shocks: Oil-filled, aluminum bodied
• Differentials: Planetary gear with metal outdrives
• Transmission: Single speed
• Tires: Vintage tread pattern, Front, 1.1" (27mm) wide, 2.5" (65mm) diameter, Rear, 1.2" (31mm) wide, 2.5" (65mm) diameter
• Wheels: Vintage design five spoke brushed chrome, Front, 1.02" (26mm) wide, 1.6" (42mm) diameter, Rear, 1.2" (31mm) wide, 1.6" (42mm) diameter
• Pinion Gear: 28 tooth 48 pitch metal
• Spur Gear: 48 pitch, 87 tooth, composite construction

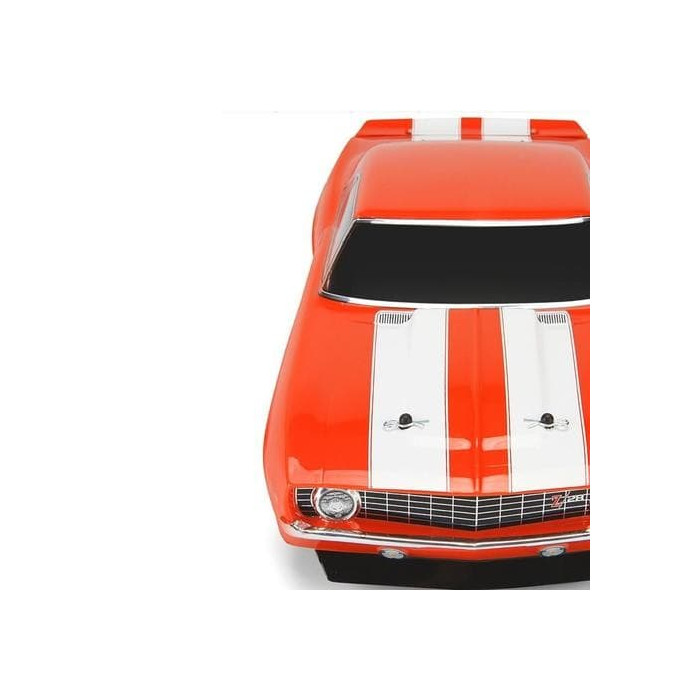

• Body: Painted and trimmed 1969 Camaro Z/28 with front spoiler and rear wing
• Bumper: Front, foam
• Suspension: Fully adjustable
• Ackerman: Adjustable, Ackerman describes the effect of the inner front wheel turning faster than the outer front wheel during turns
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Steering: Bell-crank type with servo saver
• Warranty: Two year limited warranty through HPI beginning at purchase date. Valid only in the USA, Canada and South America

INCLUDES

• HPI On-Road Sprint 2 1969 Camaro with brushed motor
• electronic speed control
• painted body
• tires
• foam inserts
• wheels
• 28 tooth pinion gear
• 87 tooth spur gear
• 2.4GHz radio
• steering servo
• decal sheet
• 4 AA transmitter batteries
• instructions
• 7.2V NiMH battery
• wall charger

REQUIREMENTS

• Misc. Items: Building and track equipment

SPECIFICATIONS

VEHICLE

• Length: 17" (431mm)
• Width: 7.5" (190mm)
• Height: 5" (127mm)
• Wheelbase: 10" (255mm)
• Front Track: 7.38" (187.5mm) side to side at outer edges of wheel
• Rear Track: 7.7" (197mm)
• Front Tread: 6.4" (162mm)
• Rear Tread: 6.6" (167mm) side-to-side at wheel centers
• Ground Clearance: 0.5" (13mm)

BODY

• Length: 17.5" (444mm)
• Width: 8.1" (205mm) at rear wheels (widest point) 7.5" (190mm) behind from wheels (thinnest point)
• Height: 4.1" (104mm)

COMMENTS

For Replacement Ball Bearings use:

• Qty. Size Location Qty. Bearing Set
• 4 5x10mm Fr Wheels 2  DTXC1535
• 4 5x10mm Rear Wheels 2  DTXC1535
• 2 10x15mm Fr Diff 1  DTXC1595
• 2 2x8mm Fr Diff 1  DTXC1523
• 2 10x15mm Rear Diff 1  DTXC1595
• 2 2x8mm Rear Diff 1  DTXC1523
• 2 4x8mm Servo Saver 1  DTXC1511
• 2 4x8mm Middle Lay Shaft 1  DTXC1511
