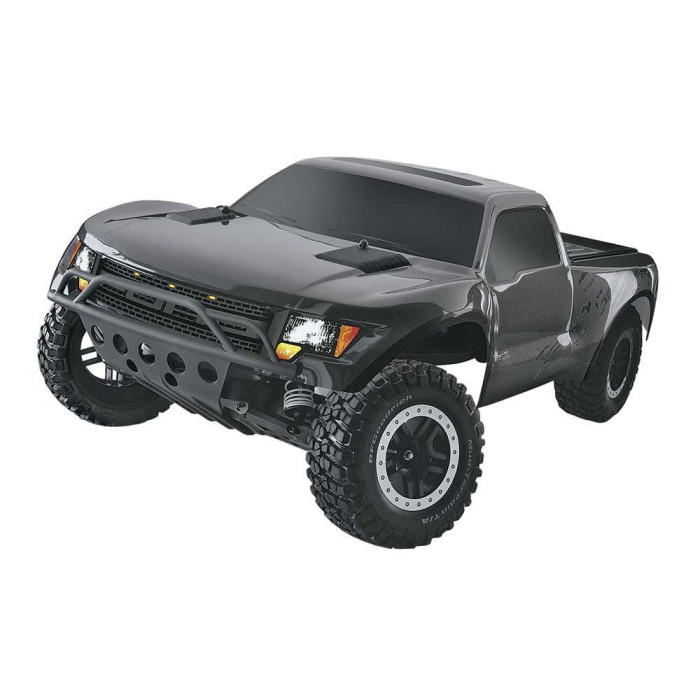

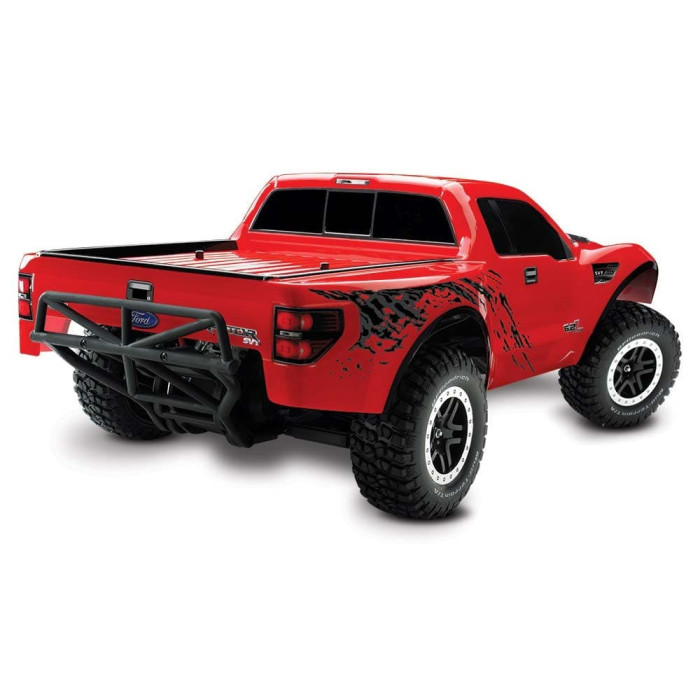

Traxxas 1/10 Slash Ford F-150 Raptor SVT TQ RTR

This is the electric powered, 2.4GHz TQ radio controlled, 1/10 scale RTR Slash All Terrain Truck from Traxxas with the F-150 Raptor SVT Body, iD equipped Charger and 8.4V iD equipped battery. **The included TQ 2.4GHz radio system is compatible only with the**#6519 receiver and does NOT accept the Docking Base accessory.

FEATURES

• Chassis: Modified tub, constructed of nylon with chassis nerf bars and newly designed body mounts with reinforced washers to better support the body during jumps and high speed runs
• Drive: Rear wheel, with heavy-duty drive yokes and telescopic driveshafts for increased suspension travel
• Motor: Titan 550 12T brushed
• Radio: Traxxas TQ 2.4GHz
• Steering Servo: Digital high-torque, waterproof
• Electronic Speed Control: Traxxas XL-5 waterproof, with reverse, training mode and one-button setup
• Ball Bearings: Full set, rubber sealed
• Battery: Traxxas Power Cell 3000mAh 7-cell 8.4V NiMH w/iD Auto Battery Identification that allows Traxxas iD equipped chargers to automatically set and optimize charge settings
• Battery Charger: iD equipped 4A DC powered peak detecting NiMH
• Suspension: Adjustable, heavy duty steel turnbuckles and captured rod ends for high degree of durability
• Shocks: Oil-filled Ultra, fully tunable and rebuildable
• Body: ProGraphix trimmed and painted Ford F-150 SVT Raptor
• Transmission: Magnum 272 with metal gears and Revo-spec torque- control slipper clutch and sealed gearbox
• Differential: Planetary steel gears
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Wheels: Satin-finish 2.2" Slash wheels
• Tires: 2.2" (56mm) BF Goodrich Mud Terrain

1. Steering: Bellcrank type with servo saver

INCLUDES

• 1/10 scale 2wd RTR Slash Truck with painted F-150 Raptor SVT Body, 2.4GHz Radio, ESC, Brushed Motor, 7-cell Battery, Charger, 23 tooth Pinion Gear and Instruction Manual

SPECIFICATIONS

• Vehicle;
• Length: 22.36" (568mm)
• Height: 8.4" (214mm)
• Wheelbase: 13.2" (335mm)
• Ground Clearance: 3.5" (89mm)
• Track: 11.65" (296mm) distance from outer edges of tires side-to-
• side
• Weight: 4.76oz (2.16kg)
• Internal Gear Ratio: 2.72 (final drive 12.58)
• Body:
• Length: 21.7" (551mm)
• Width: 11.9" (302mm)
• Height: 5.6" (143mm)

COMMENTS

The Slash F-150 Raptor is available in the following body colors;

• Blue, TRAC85BB Red, TRAC85RR
• Black, TRAC85LL Silver, TRAC85SS

The DuraTrax Element 3900kV Brushless System (DTXC3122) is an ideal,affordable upgrade for this vehicle.The ball bearings in the Traxxas Slash 2WD are rubber sealed.Following are the stock numbers for the replacement bearings from Traxxas and non-rubber sealed alternatives from Duratrax;
Qty. Size Location Qty Bearing Set Qty Bearing Set

• 4 5x11mm Steering Blocks 2 DTXC1547 2 TRAC5116
• 4 5x8mm Bellcrank 1 DTXC1523 2 TRAC6728
• 4 5x11mm R Stub Axles 2 DTXC1547 2 TRAC5116
• 1 5x11mm Spur Gear 1 DTXC1547 1 TRAC5116
• 4 5x11mm Transmission 2 DTXC1547 2 TRAC5116
