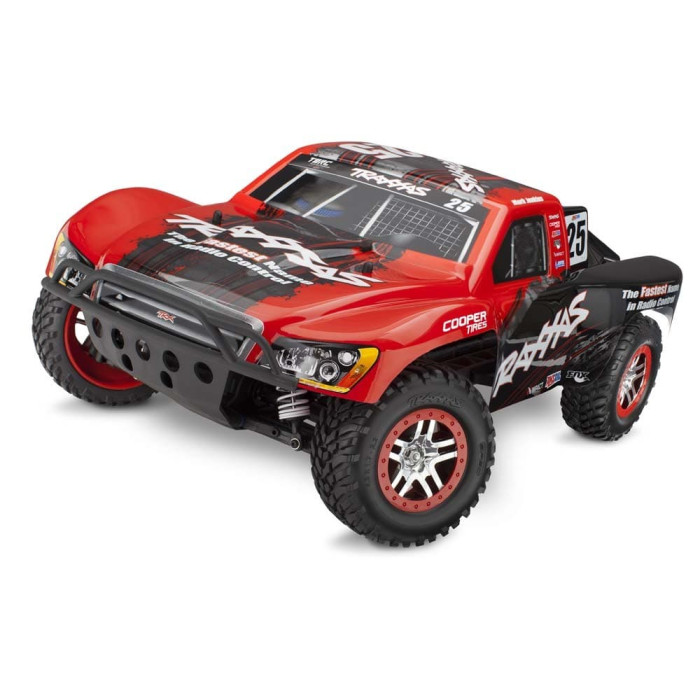

Traxxas 1/10 Slash 4X4 Brushless TSM 4WD RTR

This is the brushless electric powered, 2.4GHz radio controlled, ready to run 1/10 scale Traxxas Slash 4x4 Short Course Racing Truck with TSM (Traxxas Stability Management).

FEATURES

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app
• Chassis: Nylon composite construction
• Drive: Four wheel with lightweight extruded aluminum shaft
• Radio: Traxxas TQi DSSS 2.4GHz high output with Traxxas Link Wireless Module that allows wireless connection to the Traxxas Link  Application with the Traxxas Link Module (not included, order TRAC6511) for instant Bluetooth connectivity to an intuitive high definition graphical user interface featuring Real-TimeTelemetry, Customizable Dashboards, Steering/Throttle Expo, Steering/Braking Dual Rate, Servo Reversing, Endpoint Adjustment,
• Profile Customization and Sharing (sensors not included and must be purchased separately)
• receiver with 3 telemetry ports, and failsafe is included and enables model to be tuned from an iPhone 4S, 5, 5C 5S or iPod Touch 5th generation or later, iPad 3rd generation or later, or iPad Mini
• Electronic Speed Control: Traxxas VXL-3S waterproof, with high- current connector, training mode, reverse and low voltage detection for use with 2S and 3S LiPo packs
• Motor: Traxxas Velineon 3500 with ultra high temperature Neodymium magnets and high speed ball bearings
• Spur Gear: 54 tooth, 0.8 module 32 pitch
• Pinion Gear: 13 tooth
• Battery: Traxxas Power Cell 8.4V 3000mAh 7-cell NiMH with high- current connector and auto-detect iD feature that allows Traxxas iD equipped chargers to automatically set and optimize charge settings
• Battery Charger: 4-amp 12V DC Peak Detecting Fast Charger
• Body: Painted and trimmed
• Bumpers: Front and rear, composite construction
• Shocks: Traxxas Ultra oil filled with high-volume body, silicone bladders, dual X-ring seals and progrssive springs
• Suspension: C-hub design
• Transmission: Ball bearing equipped with adjustable Torque-Control slipper clutch with finned aluminum alloy pressure plates Differentials: Revo-spec sealed silicone filled planetary gear type
• Ball Bearings: Rubber sealed
• Caster: Adjustable caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Tires: Mud-Terrain, with foam inserts 1.7" (43mm) wide, 4.3" (109mm) diameter
• Wheels: Beadlock style split spoke with chrome center and color molded outer rim to simulate beadlock, 12mm hex
• Steering: Dual bellcrank pivoting on rubber sealed bearings with integrated cam-type servo saver, waterproof digital high- torque (125 oz-in) servo
• INCLUDES
• Traxxas Slash 4X4 Short Course Race Truck w/ TQi 2.4GHz radio system, brushless ESC and motor, body, 7-cell 3000mAh NiMH battery, 4A 12V DC peak charger, decals and illustrated instruction manual

SPECIFICATIONS

• Vehicle-
• Length: 22.36" (568mm)
• Width: 11.65" (296mm)
• Height: 8.42" (214mm)
• Front and Rear Track: 11.65" (296mm) distance between outer edges of
• wheels side-to-side
• Ground Clearance: 2.5"
• Body-
• Length: 21.25" (540mm)
• Width: 11.5" (292mm)
• Height: 5.5" (140mm)

COMMENTS

• Available in the following color schemes:
• TRAD52BB BLU #7
• TRAD52LE BlacK/Gray #10
• TRAD52LR BlacK/Red #47
• TRAD52LS BlacK/Silver #7
• TRAD52LW BlacK/White #1
• TRAD52RL Red/Black #25
• TRAD52RR Red #74
• TRAD52SL Silver/Black #10
• The ball bearings in the Traxxas Slash 4x4 are rubber sealed.
• Following are the stock numbers for the replacement bearings from
• Traxxas and non-rubber sealed alternatives from Duratrax -
• Qty. Size Location Qty. Bearing Set
• 2 8x12mm Fr Drivshaft 1 TRAC7020 DTXC1581
• 2 4x8mm Fr Hubs 1 TRAC7019 DTXC1511
• 2 8x12mm Rear Drivshaft 1 TRAC7020 DTXC1581
• 2 4x8mm Rear Hubs 1 TRAC7019 DTXC1511
• 2 4x8mm Fr Diff 1 TRAC7019 DTXC1511
• 2 5x8mm Steering Bellcrank 1 TRAC6728 DTXC1523
• 2 4x7mm Rocker Arm Post 2 DTXC1507
• 4 8x12mm Differentials 2 TRAC7020 DTXC1581
• 4 4x8mm Differentials 2 TRAC7019 DTXC1511
• 6 4x8mm Transmission 3 TRAC7019 DTXC1511
• 2 4x8mm Rear Ring Gear 1 TRAC7019 DTXC1511
