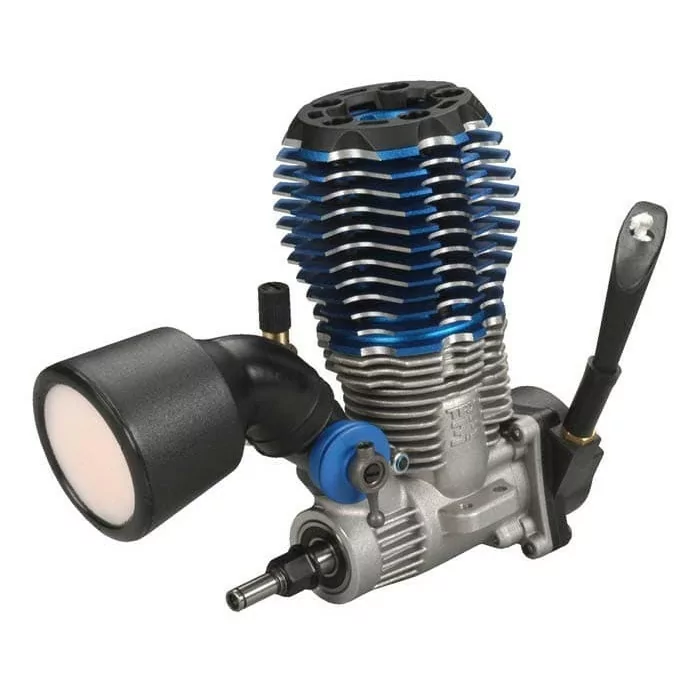

Traxxas TRX 3.3 IPS Shaft Engine w/Pull Start

This is the Traxxas TRX 3.3 Racing Engine with Pull Starter.

FEATURES

• For use in all Traxxas TRX2.5 and TRX 3.3 equipped vehicles
• Pull starter can be removed to install the EZ Start 60% more peak power than the TRX2.5, with nearly 50% more power under the curve for strong linear acceleration
• Round rear exhaust with one-piece IPS crankshaft
• Composite body slide valve carburetor with high-volume air filter
• Blue anodized aluminum cooling head with molded head protector

INCLUDES

• Traxxas TRX 3.3 Racing Engine with Pull Starter and glow plug
• One instruction manual
• One service support guide and parts lis.
• One set of engine decals
• One engine break-in DVD
• One small bottle of air filter oil
• One air filter

SPECIFICATIONS

• Displacement: .20 cu in (3.3cc)
• Practical RPM: N/A
• Output: N/A
• Weight: 10.9oz (305g)
• Distance between mounting holes same side: 0.39" (10mm)
• Distance between mounting holes opposite side: 1.2" (32mm)
• Distance from center of engine to front bearing: 1.2" (32mm)
• Distance/bottom of mounting flanges/top of cylinder head: 3.5" (88mm
• Width of mounting flanges: 44mm

COMMENTS

• Other versions of the TRX 3.3 engine include;
• #5404 Single Shaft without Starter, TRAG5404
• #5406 Multi-Shaft without Starter
• #5409 Multi-Shaft w/Recoil Pull Starter, TRAG5409
