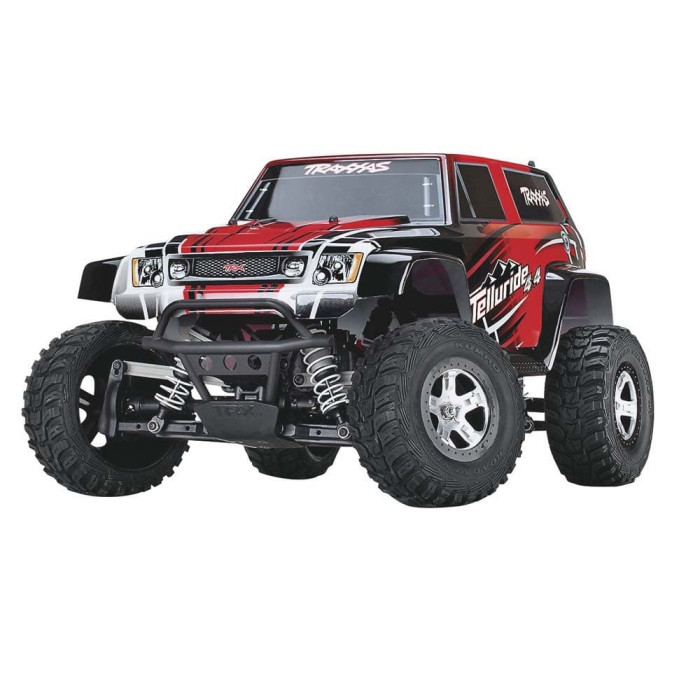

Traxxas 1/10 Telluride 4X4 TQ 4WD RTR

This is the 2.4GHz Radio Controlled, Electric Powered, Ready to Run 1/10 scale Telluride 4x4 Extreme Terrain Off Road Vehicle from Traxxas. **The included TQ 2.4GHz radio system is compatible only with the** **#6519 receiver and does NOT accept the Docking Base accessory.**

FEATURES

• Chassis: Modular fiber-composite monocoque
• Drive Four wheel shaft drive with high stall gear clutch, and heavy duty telescoping U-joint driveshafts
• Motor: 12T Titan 550 brushed motor with cooling fan
• Radio: TQ 2.4GHz 2-channel with high-torque waterproof steering servo
• Electronic Speed Control: XL-5 with reverse
• Suspension: Long travel, fully optimized front axle carrier for maximum articulation without binding or interference
• Shocks: Full adjustable oil-filled Ultra shocks with X-Ring technology
• Body: Trimmed and painted ProGraphix
• Wheels: 2.2" (56mm) wide satin finish, black beadlock style rim
• Tires: Officially licensed Kumho Road Venture 2.2" (56mm) wide ith foam inserts
• Differentials: Sealed limited slip, gear type Revo spec, tuned for trail climbing, filled with 100,000 weight silicone oil
• Steering: Bellcrank system with integrated servo saver
• Ball Bearings: Rubber sealed
• Battery: NiMH 7-cell Power Cell 3000mAh with Traxxas iD Connector,
• iD Auto Battery Identification allows Traxxas iD equipped chargers to automatically set and optimize charge settings for specific battery
• Battery Charger: 4A DC peak
• Main Gear: 12 tooth 48 pitch
• Caster: Adjustable caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis

INCLUDES

• RTR Telluride 4x4, with Painted Body, Battery, Charger, Decals,
• 2.4GHz radio, ESC, and Instruction Manual

SPECIFICATIONS

• Vehicle;
• Length: 16.73" (425mm)
• Front and Rear Track: 11.06" (281mm)
• Weight: 83.42 oz (2.37kg)
• Height: 9.06" (230mm)
• Wheelbase: 10.75" (273mm)
• Overall Drive Ratio: 19.69 (stock)
• Battery Tray Dimensions: 5.6 x 1.9 x 0.90,0.98"
• (142 x 48.5 x 23,25mm)
• Body;
• Length: 16.5" (419mm)
• Width: 8.1" (205mm)
• Height: 5.7" (144mm)

COMMENTS

• Available in the following body colors;
• Blue, TRAC22BB Orange, TRAC22NN
• Green, TRAC22GG Red, TRAC22RR
• For Replacement Ball Bearings, use:
• Qty. Size Location Qty. Bearing Set
• 2 5x11mm Fr Hubs 1 DTXC1547
• 2 10x15mm Fr Hubs 1 DTXC1595
• 4 5x11mm Rear Hubs 2 DTXC1547
• 1 12x18mm Rear Diff 1 DTXC1597
• 1 10x15mm Rear Diff 1 DTXC1595
• 2 8x16mm Fr Driveshaft 2 DTXC1585
• 2 8x16mm Rear Driveshaft 2 DTXC1585
• 4 5x8mm Steering 2 DTXC1523
• 2 6x12mm Fr Diff 1 DTXC1569
• 1 10x15mm Motor Mount 1 DTXC1595
