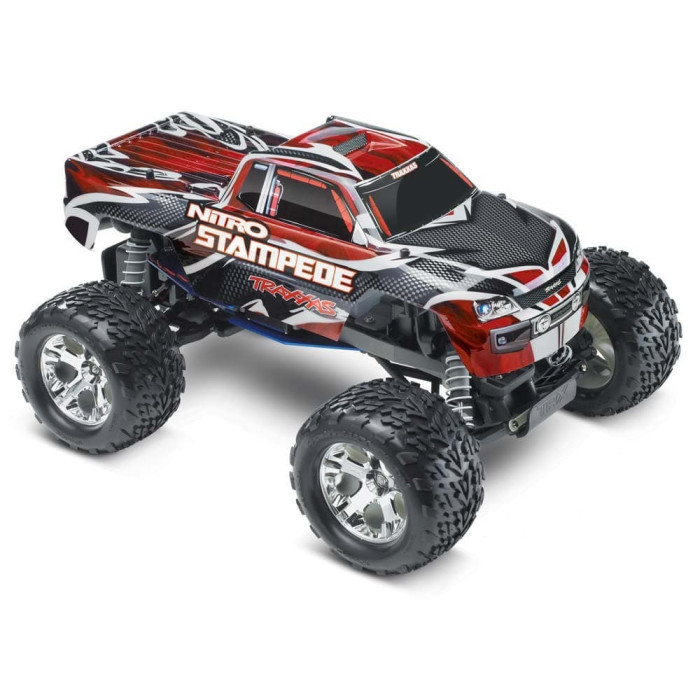

Traxxas 1/10 Nitro Stampede TSM RTR

This is the glow powered, radio controlled Ready-To-Run Traxxas Nitro Stampede 1/10 scale Monster Truck with Traxxas Stability Management.
**The included TQ 2.4GHz radio system is compatible only with the***#6533 receiver and does NOT accept the Docking Base accessory.**

FEATURES

• Traxxas Stability Management (TSM): Superior tuning algorithms run on high-speed electronic components to control wheel spin and steering direction on loose dirt, concrete and even ice and snow. TSM can be fine tuned or turned off by adjusting the multi-function knob on the TQi transmitter or the slider in the Traxxas Link app
• Chassis: 6061 T-6 aluminum anodized blue
• Radio: Traxxas TQ 2.4GHz
• Engine: Traxxas Pro .15 (2.5cc) with two-needle rotary carb, glow plug and EZ-Start electric starter with battery and charger
• Exhaust: Composite construction rear tuned pipe with two outlets
• Drive: Rear wheel
• Body: Pre-painted, pre-cut polycarbonate body with decals applied
• Ball Bearings: Full set included, rubber sealed
• Shocks: Four Ultra shocks oil-filled w/ powder coated White springs
• Slipper Clutch: Adjustable
• Suspension: 4-wheel independent
• Transmission: Magnum 375 with 32 pitch gears and ball bearings
• Differential: Planetary gear with steel internal gears
• Spur Gear: 66-tooth composite construction
• Clutch Bell: 18 tooth steel
• Fuel Tank: 2.5oz (75cc) with flip-top lid and primer bulb
• Brake: Composite disc type
• Tires: Revo spec Talon 2.8" (71mm) inner diameter 4.75" (121mm) outer diameter with foam inserts
• Wheels: Chrome finish 5-spoke Traxxas All Star 2.8" (71mm) diameter, 2.0" (51mm) wide
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
• Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle

INCLUDES

• Assembled Nitro Stampede with Pro .15 (2.5cc) engine and glow plug, EZ-Start electric starter, painted body with decals, TQ 2.4GHz radio, two servos, instruction sheet, 66-tooth spur gear, 18-tooth clutch bell, TSM, battery and 110V charger for EZ-Start

SPECIFICATIONS

• Length: 17" (432mm)
• Front and Rear Track: 12.75" (324mm)
• Weight: 5.2lb (2.35kg)
• Height: 9.5" (241mm)
• Wheelbase: 10.75" (273mm)
• Ground Clearance: 4" (102mm)
• Gear Ratio: 3.75:1 (internal)

COMMENTS

• For Replacement Ball Bearings use:
• Qty. Size Location Qty. Bearing Set
• 4 5x11mm Front Wheels 2 DTXC1547
• 4 5x11mm Rear Wheels 2 DTXC1547
• 6 5x11mm Transmission 3 DTXC1547
• 2 5x11mm Clutch Bell 1 DTXC1547
• REPLACING EZ STARTER WITH STANDARD RECOIL STARTER
• To convert the EZ starting to a standard pull starter, purchase
• part numbers TRAG5170, TRAP5211 one-way bearing, four 3x8mm machine screws, take out the three bolts on the EZ-Starter clip the wires on the EZ-Starter, and install recoil pull starter.
• Available with the following color schemes;
• Blue and Black, TRAD08BL Red and Black, TRAD08RL
• Blue and Silver, TRAD08BS Red and Silver, TRAD08RS
