Model number: TRA36094-1
Product Details
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
Historical Context

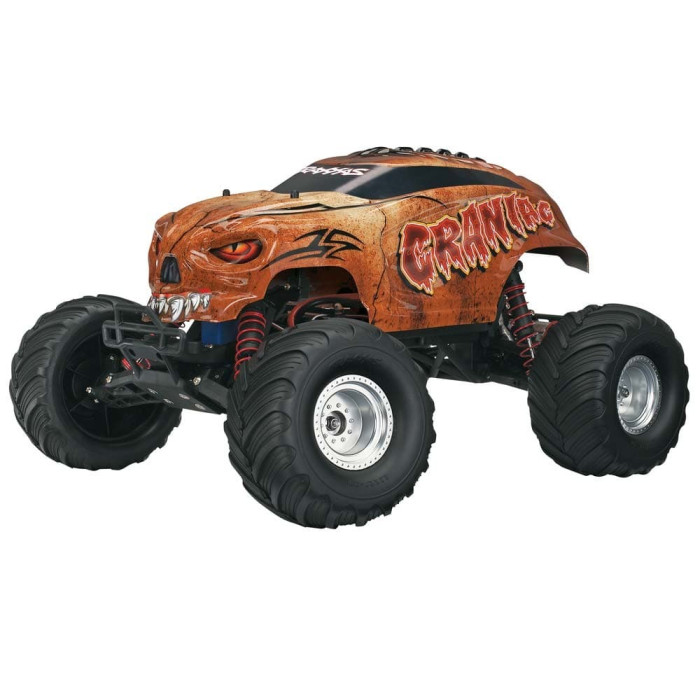

This is the Electric Powered, Radio Controlled, 1/10 scale Ready to Run Craniac Monster Truck from Traxxas.
FEATURES
- Chassis: Composite fiber monocoque
- Drive: Rear wheel with telescoping driveshafts for greater suspension travel
- Transmission: Brushless ready Magnum 272 with metal gears and ball bearings, 48P gears
- Motor: Titan 12 turn brushed 550 size with 19T pinion gear installed and optional 23T pinion gear for higher speed
- Electronic Speed Control: Traxxas XL-5 with one-button set-up and training mode
- Differential: Planetary gear
- Slipper Clutch: Revo Spec Torque-Control with finned aluminum alloy pressure plates, and semi-metallic friction material
- Battery: Traxxas iD-equipped 7-cell Power Cell NiMH battery with iD Auto Battery Identification that allows Traxxas iD equipped chargers to automatically set and optimize charge settings
- Charger: DC powered 4A fast charger
- Radio: Traxxas TQ 2.4GHz 2-channel pistol grip, 3-channel TQ receiver waterproof high-torque steering servo
- Shocks: Oil-filled Ultra with pressure bladders for air/oil separation, X-ring technology for perfect seals and powder coated springs
- Wheels: All Star with chrome finish
- Tires: Alternating chevron style tread pattern
- Body: ProGraphix painted and trimmed
INCLUDES
- RTR Craniac Monster Truck with 2.4GHz Radio, 12T Motor, ESC, NiMH
- Battery, Charger, Painted Body, 19 tooth Pinion Gear, optional
- 23-tooth Pinion Gear, Instruction Manual
SPECIFICATIONS
- Length: 16.25" (413mm)
- Front and Rear Track: 12.75" (324mm) distance between outer edges of
- wheels side-to-side
- Weight: 4.08lbs (1.85kg)
- Height: 9.5" (241mm)
- Ground Clearance: 4" (102mm)
- Wheelbase: 10.63" (270mm)
- Internal Gear Ratio: 2.72, final drive 12.34
- Battery Tray Dimensions: 5.4 x 1.8 x 1.02" (138 x 46 x 26mm)
- (battery expansion kit available, TRAC3728)
- Body-
- Length: 15.4" (392mm)
- Width: 6.3" (160mm) at rear wheels, widest point
- Height: 4.9" (126mm)
COMMENTS
- The Craniac is available in two colors;
- Red, TRAD26RR
- Bone, TRAD26UU
- The Duratrax Element 3900kV Brushless System (DTXC3122) is an ideal, affordable upgrade for this vehicle.
- For replacement or to upgrade to ball bearings use:
- Qty. Size Location Qty. Bearing Set
- 4 5x11x4mm Fr Uprights 2 DTXC1547
- 4 5x11x4mm R Uprights 2 DTXC1547
- 6 5x11x4mm Gearbox 3 DTXC1547
- 1 5x11x4mm Spur Gear 1 DTXC1547
