Model number: TRA3018R
Product Details
Cars: Traxxas Rustler, Traxxas Rustler 4x4, Traxxas Slash, Traxxas Slash 4x4, Traxxas Stampede, Traxxas Stampede 4x4
Needed to Complete (not included):
- Hobby knife
- Glue
- Paint and finishing tools
NOTE: Photo of completed model is for illustrative purposes only. This is a model kit that requires assembly.
Historical Context

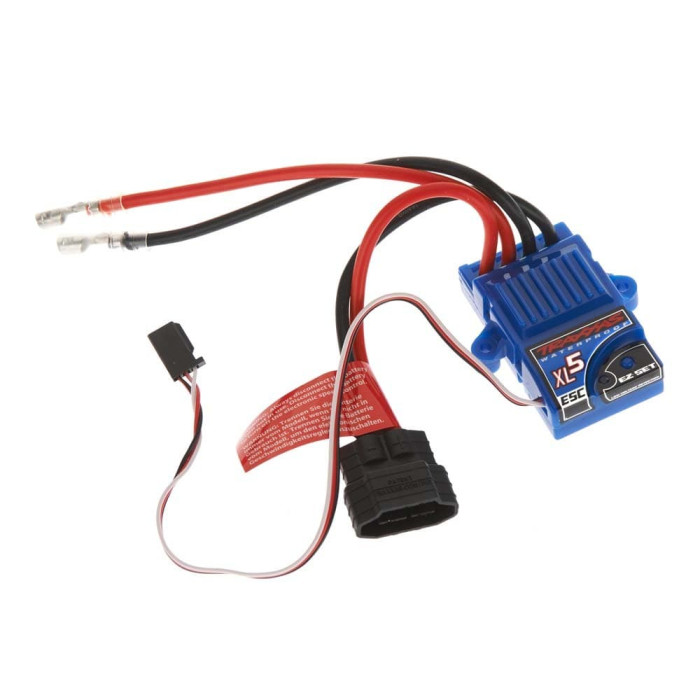

This is the Traxxas XL-5 Waterproof Forward/Reverse Electronic Speed Control.
FEATURES
- EZ-Set pushbutton setup
- Efficient low loss MOSFET design with heavy gauge low loss wire
- Thermal shutdown protection
- Multi-color LED
- Training Mode limits throttle output to 50% for new drivers
- Programmable with three drive profiles
- High capacity heat sink
INCLUDES
- Traxxas XL-5 Forward and Reverse Electronic Speed Control with connectors and instruction manual
SPECIFICATIONS
- On Resistance Forward: 0.007 Ohms
- On Resistance Reverse: 0.014 Ohms
- Peak Current-Fwd/Rev: 100A/60A
- Braking Current: 60A
- Continous Current: 14A
- BEC Voltage: 6.0V DC
- BEC Current: 1A
- Power Wire: 14AWG/ 5"
- Input Harness Type: 26AWG/ 9"
- Transistor Type: MOSFET
- PWM Frequency: 1600Hz
- Thermal Protection: Thermal Shutdown
- Single Button Setup: Yes
- Motor Limit: 15T (540 Size), 12T (550 Size)
- Input Voltage: 4-8 Cells (4.8 to 9.6V DC)
- Weight: 3.07oz (87g)
- Profile Selection: Sport Mode 100% FWD, 100% Brakes, 100%REV
- Race Mode 100% FWD, 100% Brakes, No REV
- Training Mode 50% FWD, 100% Brakes, 50% REV
COMMENTS
- **Not compatible with the Novak #5470 2C LiPo Cut-Off Module.**
