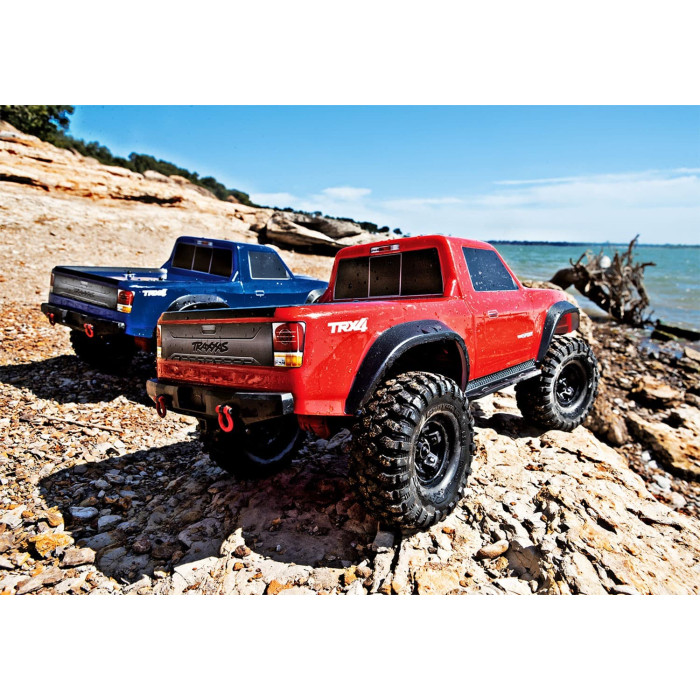

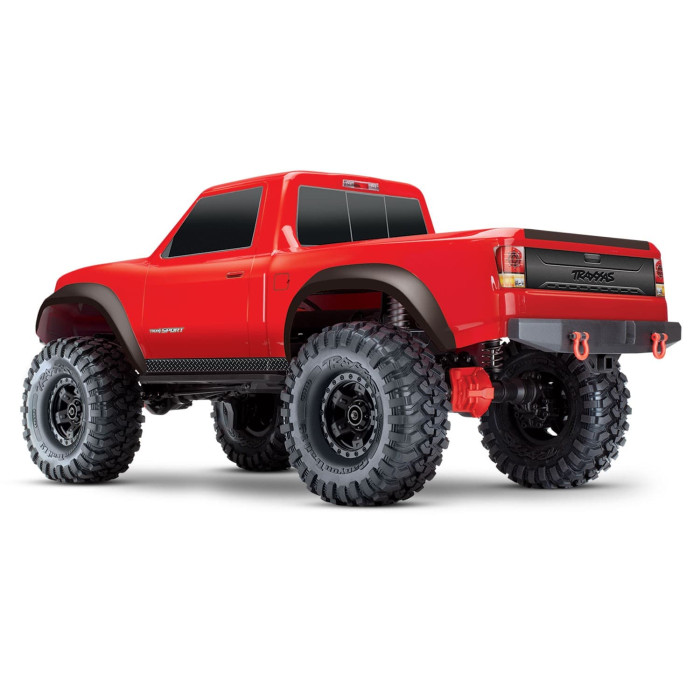

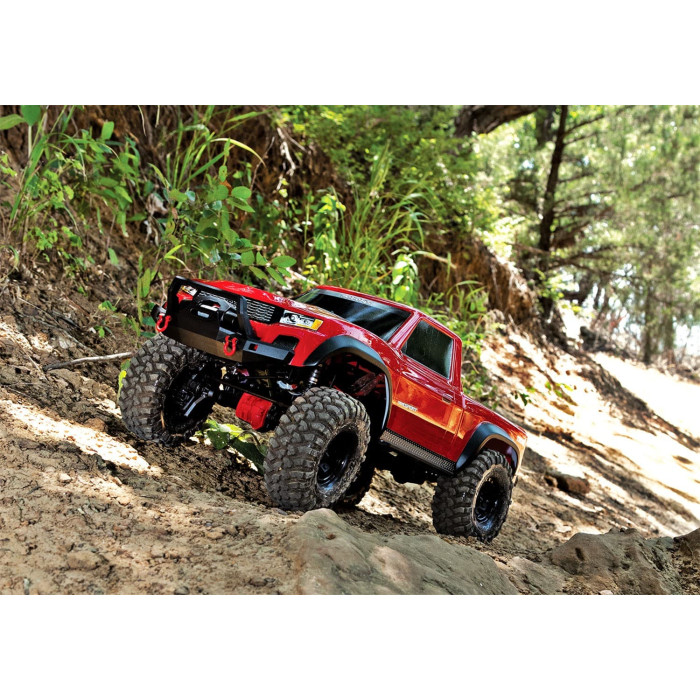

Traxxas TRX-4 Sport RTR 1/10 Scale Trail Rock Crawler (Red)

The Traxxas TRX-4 Sport combines a lightweight pickup truck body, single speed transmission and a full time locked spools with the notorious Traxxas high clearance portal axles, sticky Canyon Trail tires, and great scale looks to create a leaner, performance-focused TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility, and improved overall driving dynamics. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to the next level.

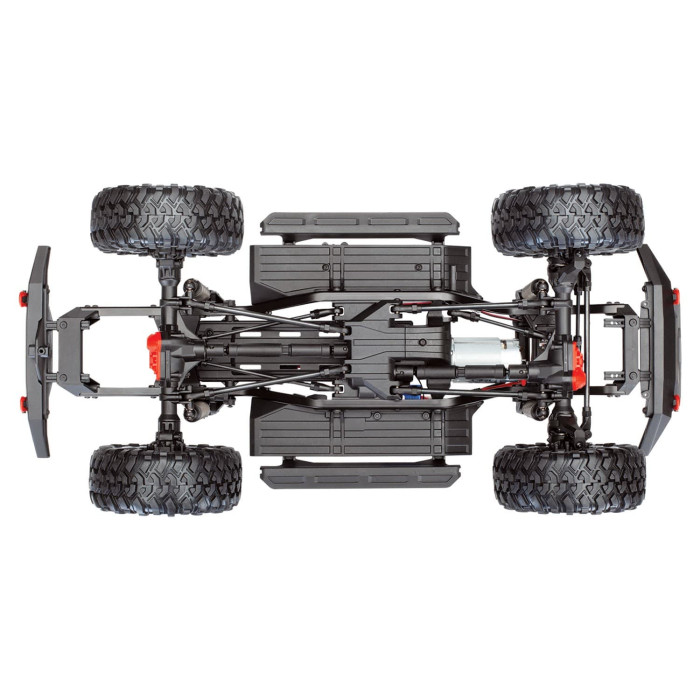

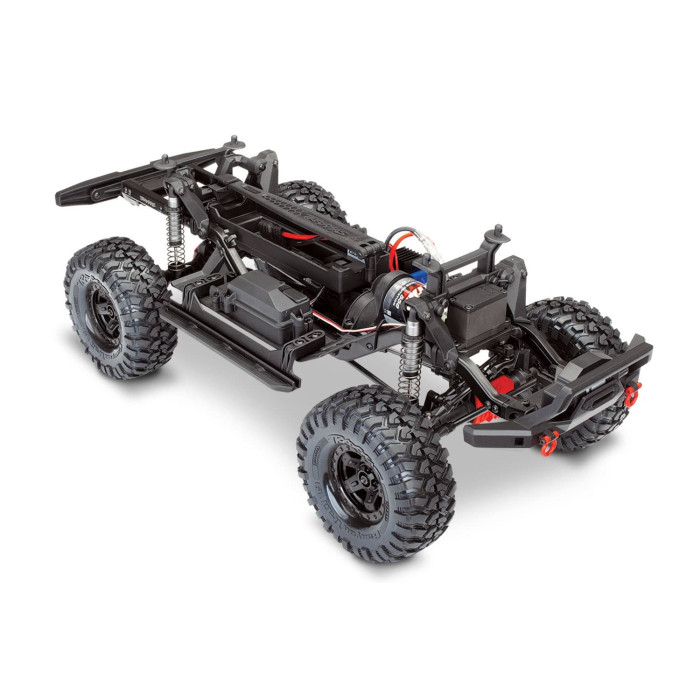

Chassis:

• Heavy-Duty Steel Frame Rails
• Adjustable Wheelbase
• Molded Wire Retainers
• Dual Battery Tray
• Floor Pans
• Aluminum Scale Shocks
• Heavy-Duty Steel Links
• Precision Hex Hardware

Driveline:

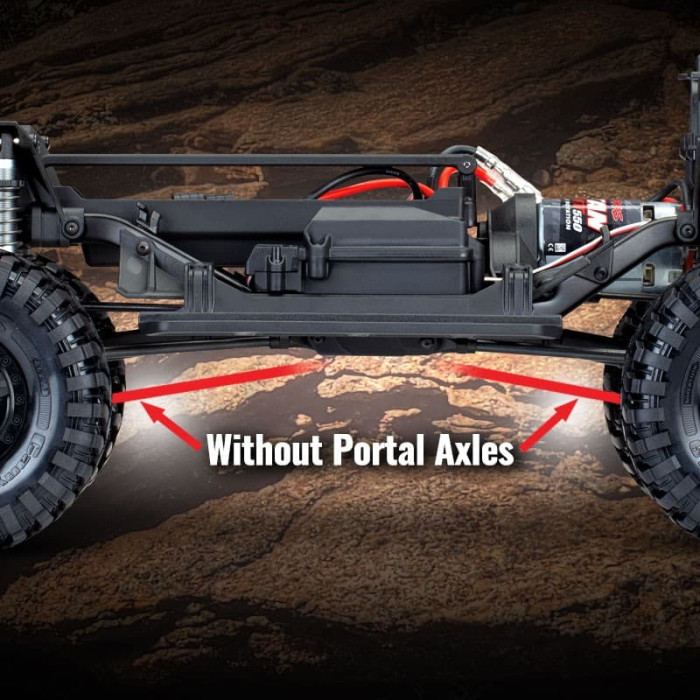

• Portal Axles
• Torque Twist Eliminated
• Locked Differentials
• Steel Gear Transmission
• Hardened Steel U-Joints
• Twin Friction Plate Slipper Clutch
• Sealed Ball Bearings

Geometry:

• Raised Center Driveshafts and Suspension Links
• High Steering and Drag Links

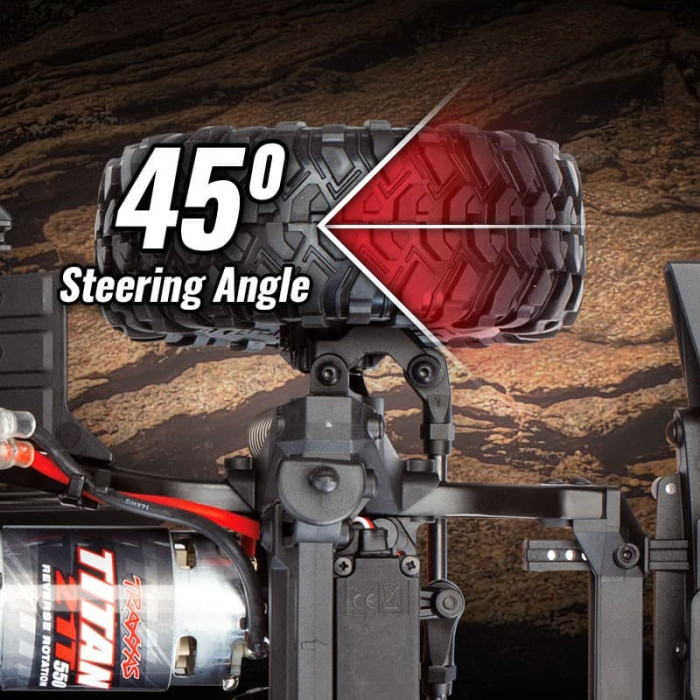

• 45-Degree Steering Angle
• Extreme Approach Angles
• High Ground Clearance
• Front Motor Design

Electronics:

• XL-5 HV ESC
• Titan 21T 550 Motor
• Waterproof Metal Gear Servo
• TQ™ 2-Channel Radio System

Specifications:

• Length: 21.93 inches (557mm)
• Front Track: 9.78 inches (249mm)
• Rear Track: 9.78 inches (249mm)

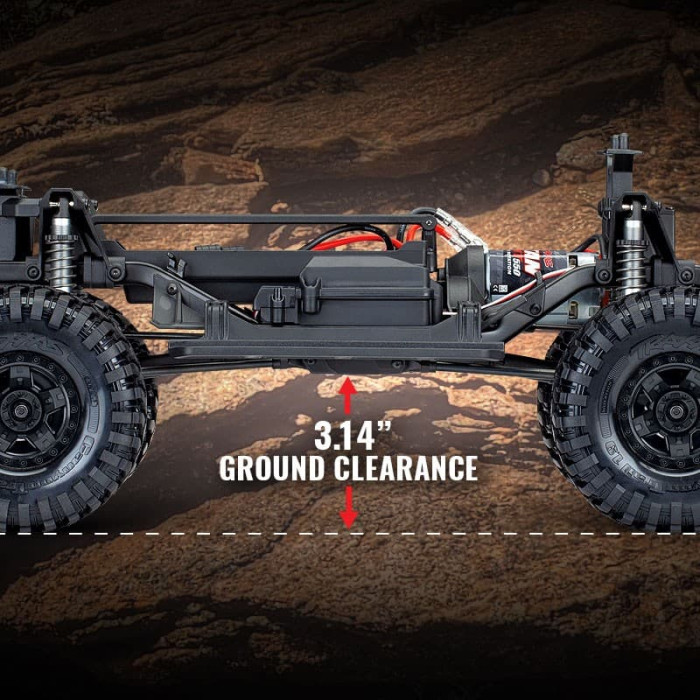

• Ground Clearance: 3.14 inches (80mm)
• Weight: 5.79lb (2.63kg)
• Height: 9.47 inches (241mm)
• Wheelbase: 12.28 inches (312mm)
• Approach Angle: 58.82°
• Departure Angle: 45.83°
• Breakover Angle: 58.93°
• Front Shock Length: 3.54 inches (90mm)
• Rear Shock Length: 3.54 inches (90mm)
• Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
• Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
• Front Tires: 4.64 x 1.89 inches (118 x 48mm)
• Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: Single Speed
• Gear Pitch: 32P
• Differential Type: Spool (no differential)
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
• Receiver: 6519
• Skill Level: 2
• Battery Tray: 158.75 L x 47 W x 23/26mm H

What’s In The Box:

• TRX-4, Ready-To-Drive® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQ™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries NiMH (4–7 cell) and LiPo (2s–3s) batteries
• Charger
• AA Alkaline Batteries (Four AA alkaline batteries for the transmitter)
