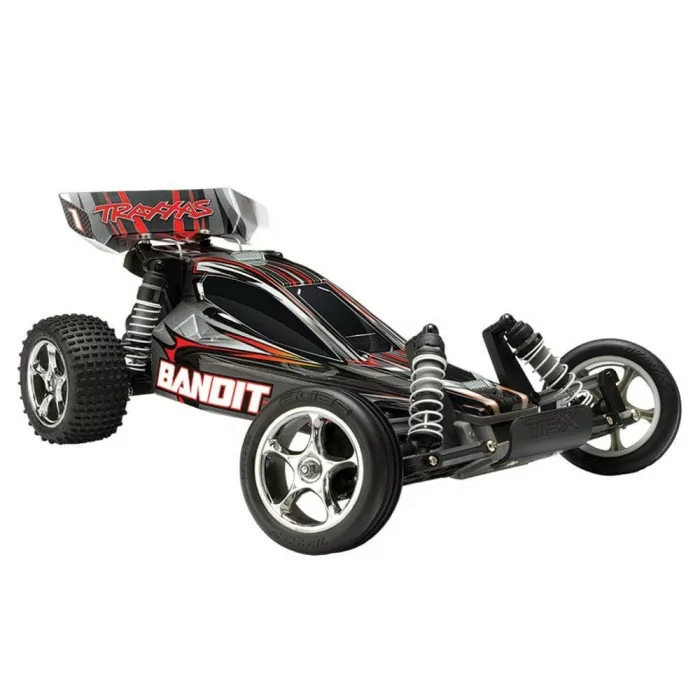

Traxxas 1/10 Bandit Buggy XL-5 RTR

This is the 1/10 Electric Powered, 2.4GHz Radio Controlled, Ready-to-Run
Traxxas Bandit XL-5 Off-Road Buggy.

FEATURES

• Chassis: Fiber composite bathtub style .15" (4mm) thick
• Drive: Rear wheel drive with telescoping driveshafts
• Motor: Traxxas Titan 12 turn modified, 550 size, TRAC3785
• Radio: Traxxas TQ 2-channel 2.4GHz pistol grip with laydown waterproof steering servo that enhances low CG design, and 3-chmicro receiver
• Speed Control: Traxxas XL-5 with reverse and training mode and now waterproof for all weather driving, compatible with 2s LiPo packs
• Battery: 7-cell hump NiMH 3000mAh with Traxxas High Current connector iD Auto Battery Identification allows Traxxas iD equipped chargers to automatically set and optimize charge settings for specific battery
• Battery Charger: 4A DC powered peak charger
• Shocks: Oil filled ultra shocks with powder coated white springs
• Gearbox: Sealed
• Differential: Planetary gear type with hardened steel gears
• Transmission: Magnum 272 transmission, steel internal gears & Revo spec Torque Control slipper clutch handles brushless motor upgrade
• Slipper Clutch: Revo Spec Torque-Control-adjustable to provide consistent traction control
• Tires: Alias 2.2 racing tires, stepped pin rear and ribbed front
• Wheels: 2.2" (56mm) Chrome finish Tracer 5-spoke
• Body: Traxxas ProGraphix painted body with wing
• Bumpers: Front, Black plastic
• Suspension: Fiber composite arms, captured camber links and rod ends
• Camber Tie Rods: Fixed non-adjustable
• Steering Tie Rods: Adjustable
• Steering: Bell-crank with laydown servo placement and servo saver

INCLUDES

• Traxxas Bandit XL-5 with Titan 12T motor, radio, 7-cell 3000mah NiMH hump battery, DC charger, ESC, 26 tooth pinion gear,31 tooth optional pinion gear, Mirror Chrome wheels, 76 spur gear,instructions, wrenches, aftermarket servo adapters, pre-load
• spacers & shock pistons, battery pad, replacement screws, body clips and washers

SPECIFICATIONS

• VEHICLE-
• Length: 16.25" (413mm)
• Width: 10.25" (260mm)
• Height: 7" (178mm)
• Weight: 3" (1380g) with body
• Wheelbase: 11.12" (283mm)
• Front and Rear Track: 9.84" (250mm) outer edges of wheels, side-to- side
• Ground Clearance: 1" (25.4mm)
• BODY-
• Length: 14.75" (375mm)
• Width: 5.4" (138mm) at rear wheels (widest point)
• 1.5" (39mm) behind from wheels (thinnest point)
• Height: 3.7" (95mm)

COMMENTS

• The DuraTrax Element 3900kV Brushless System (DTXC3122) is an ideal, affordable upgrade for this vehicle.
• For replacement or to upgrade to ball bearings use:
• Qty. Size Location Bearing Set
• 4 5x8mm Front Wheels order 2 DTXC1523
• 4 5x8mm Rear Wheels order 2 DTXC1523
• 6 5x11mm Transmission order 3 DTXC1547
• The following body colors are available:
• Blue, TRAD27BB Red, TRAD27RR
• Black, TRAD27LL Silver, TRAD27SS
• Pink, TRAD27KK
• Courtney Force Edition, TRAD27BR
