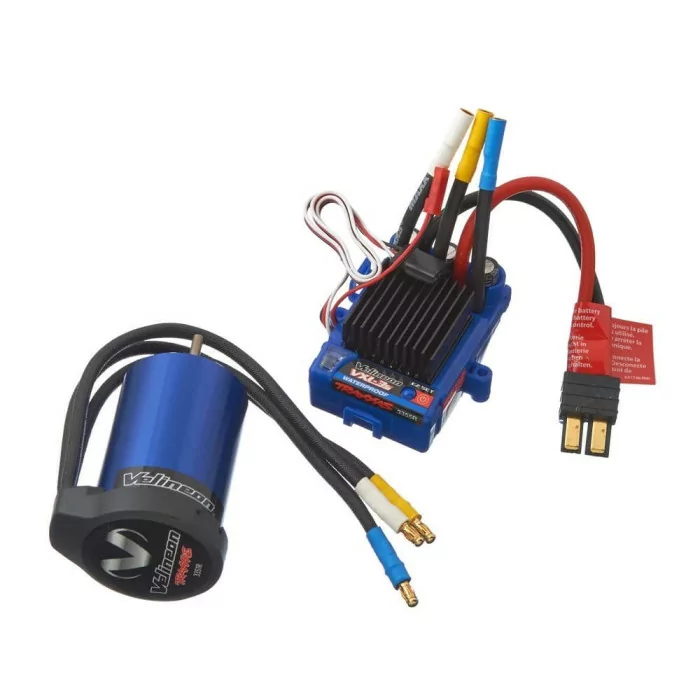

Traxxas Velineon Waterproof Brushless System

This is the Traxxas Velineon Extreme Brushless Waterproof Power System for electric powered R/C vehicles.

FEATURES

• Each component engineered to work wih each other to eliminate restrictions and allow maximum power flow
• Velineon VXL-3s ESC;
• Auto-detects and compatible with brushed, brushless and sensored brushless motors
• Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery packs-two stage low voltage detection for LiPos
• Three driver profiles-Sport, Race and Training Modes
• Gold-plated motor connectors
• Built-in output for optional auxiliary cooling fan
• Velineon 3500 Brushless Motor;
• 10-turn 3500kV
• Optimized for extreme power and efficiency in 1/10 scale vehicles
• Ultra high temp neodymium magnets, high-speed ball bearings
• Precision balanced rotor
• Traxxas High-Current Connector
• Reverse polarity protection makes backward connections impossible
• Compatible with high-current 12-gauge wire
• Gold-plated wide surface terminals
• Textured surface for easy gripping

INCLUDES

• Velineon VXL-3s ESC, Velineon 3500 Brushless Motor and high-current connector

SPECIFICATIONS

• VXL-3s
• Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
• Supported motors: Brushed/Brushless/Sensorless brushless
• Motor Limit: None
• Continuous current: 200A
• Peak current forward & reverse: 320A
• Braking Current: 320A
• BEC voltage 6.0V DC
• BEC current: 2.5A w/6-cell NiMH
• Transistor type: MOSFET
• On-resistance: 0.00075 ohms Max (0.006/8 FETs)
• PWM frequency: 12,000Hz
• Battery connectors: Traxxas High-Current Connector
• Motor connectors: TRX 3.5mm bullet connectors
• Motor/battery wiring: 12-gauge Maxx Cable
• Input Harness Wire: 26 gauge, 3.9" (100mm)in length
• Low voltage detection: 2-Stage indicators, switchable (on or off)
• Thermal protection: 2-stage thermal shutdown
• Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
• Weight: 3.17oz (90g)
• Velineon 3500 Motor
• Type: Sensorless brushless
• RPM/volt: 3500 (10-turn)
• Magnet type: Ultra High-Temperature, sintered neodymium
• Connection type: TRX 3.5mm bullet connectors
• Wire Size: 12-gauge Maxx Cable w/solder tabs
• Current Ratings: 65A constant; 100A peak/burst
• Max RPM: 50,000
• Diameter: 1.42" (36mm) (540 size)
• Length: 2.165"(55mm)
• Weight: 8.75oz (248g)
