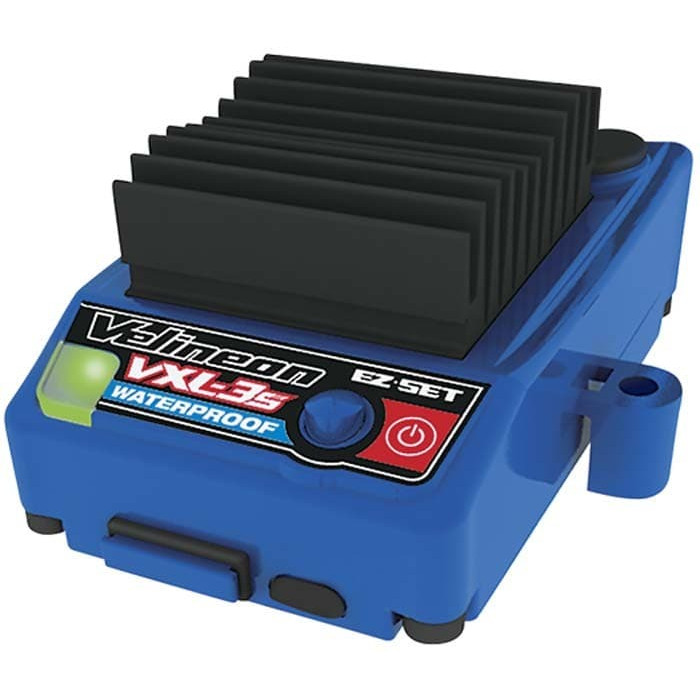

Traxxas VXL-3s Waterproof Brushless ESC

This is the Traxxas VXL-3s Waterproof Brushless Electronic Speed Control.

FEATURES

• Auto detects brushed, brushless or sensored brushless motor types
• Compatible with 4-cell NiCd or NiMH batteries up to 3S LiPo packs (11.1V)
• EZ-Set(R) one-touch push-button set-up
• Three drive profiles Sport, Race and Training mode
• Training mode limits full throttle to 50% for beginning drivers
• Locked rotor protection if vehicle is stuck or motor is bound
• Battery over-voltage protection triggers failsafe if maximum input voltage is exceeded
• Sensor phase detection protects against improperly wiring aftermarket sensored motors
• Sensored motor backup protection switches to sensorless operation if motor sensor fails
• Auxiliary fan output (fan not included)

INCLUDES

• Traxxas VXL-3s Electronic Speed Control with 12 gauge motor and battery cables, three preinstalled 3.5mm female bullet motor connectors, Traxxas High-Current male battery connector, universal receiver connector and instruction manual

SPECIFICATIONS

• Input Voltage 4.8 - 11.1V (4-9 NiMH, 2S-3S LiPo)
• Motor Compatibility: Sensorless Brushless
• Motor Limit: None
• Battery Connector: Trasxxas High-Current
• Motor Connectors: TRX 3.5 Bullet Connectors
• Motor and Battery Wires: 12 gauge Maxx ccable
• Continuous Current: 200A
• Peak Current: 320A forward and reverse
• BEC Current: 6.0V DC
• Transistor Type: MOSFET
• On-Resistance: 0.00075 ohms
• PWM Frequency: 12,000Hz
• Thermal Protection: Two-Stage Thermal Shutdown
• Weight: 3.88 oz (110g)
• Length: 2.29" (58.17mm)
• Width: 1.54" (39mm)
• Height: 1.2" (30.48mm) including heatsink
